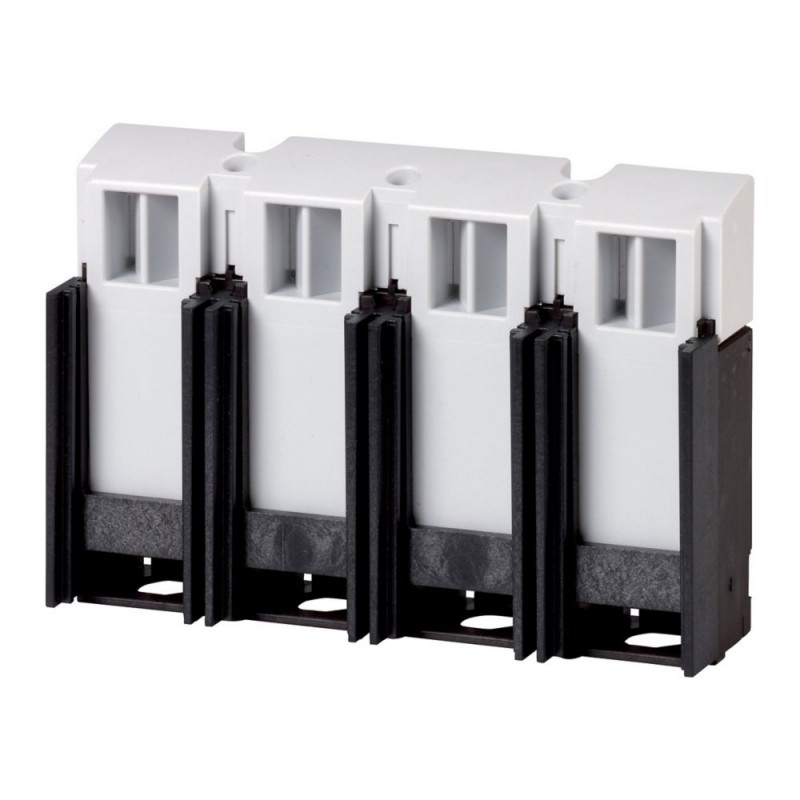

NZM2-4-XKR4 118907 EATON MOELLER Tapa protección contactos Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

NZM2-4-XKR4 118907 EATON MOELLER Tapa protección contactos

NZM2-4-XKR4

118907

EATON - MOELLER

Disponible

Envío el hoy

Tapa protección contactos

Más detalles


Interruptores Magnetotermicos Automatico Control Potencia Icp

Interruptores NZM y LZM (Accesorios) - EATON - MOELLER

Técnica de conexión y tapas cubrebornes - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$30.54
5+$28.27
10+$27.58
14+$27.30
19+$27.08
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Ordering information
  When ordering separately
Product range
  60 mm system
Basic function
  Connection block for component adapters
Accessories
  Connection block
Number of poles
  4 pole
Number of conductors
  4 pole

  for NZM2 component adapter
Rated operational current
IeA250
Cu factor
 kg0,00
For use with
  NZM2-4,
PN2-4,
N2-4
Rated operational voltage
UeV250
Notes

Required for component adapters and switches with connection on rear; see device adapters 104555 and 104556 for an example.

O = Mounted on top

U = Fitted at the bottom

Design verification as per IEC/EN 61439(Show features)(Hide features)
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Wiring set for power circuit breaker (EC002050)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Wiring set for circuit breaker ([email protected] [ACN957008])
Suitable for number of poles
  4
Model
  -
Approvals
Product Standards  UL489; CSA-C22.2 No. 5-09; IEC60947-2, CE marking
UL File No.  E31593
UL Category Control No.  DIVQ
CSA File No.  022086
CSA Class No.  1432-01
North America Certification  UL listed, CSA certified
Specially designed for North America  Yes
Suitable for  Feeder circuits, branch circuits
Current Limiting Circuit-Breaker  Yes
Max. Voltage Rating  480Y/277 V
Degree of Protection  IEC: IP20; UL/CSA Type: -
Dimensions
>

Datasheet - PDF
