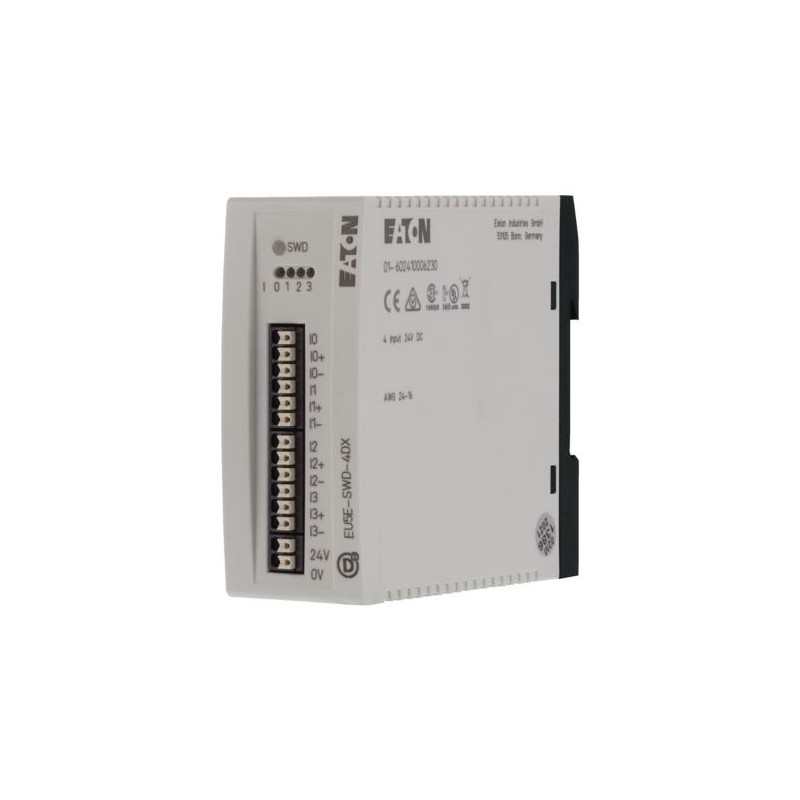

SW-D Módulo 4ED a 3 hilos, con alimentación

Más detalles


Relés Programables Programadores

PLC Modular XC - EATON - MOELLER

PLC Modular XC - Módulos de entradas / salidas - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$115.49
3+$110.17
5+$108.24
7+$107.11
10+$106.20
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  SmartWire-DT slave
Basic function
  Digital modules
Function
  For connection of digital I/O signals
Short Description
  Inputs with supply for sensor system.
Inputs

Digital
  4
Connection to SmartWire-DT
  yes
Technical data
General
Standards
  IEC/EN 61131-2
EN 50178
Dimensions (W x H x D)
 mm35 x 90 x 101
Weight
 kg0.1
Mounting
  Top-hat rail IEC/EN 60715, 35 mm
Mounting position
  As required
Climatic environmental conditions
Climatic proofing
  Dry heat to IEC 60068-2-2
Damp heat as per EN 60068-2-3
Air pressure (operation)
 hPa795 - 1080
Ambient temperature

Operation
ϑ°C-25 - +55
Storage / Transport
ϑ°C-40 - +70
Relative humidity

Condensation
  Take appropriate measures to prevent condensation
Relative humidity, non-condensing (IEC/EN 60068-2-30)
 %5 - 95
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
  IP20
Vibrations (IEC/EN 61131-2:2008)

Constant amplitude 3,5 mm
 Hz5 - 8.4
Constant acceleration 1 g
 Hz8.4 - 150
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
 Impacts9
Drop to IEC/EN 60068-2-31
Drop heightmm50
Free fall, packaged (IEC/EN 60068-2-32)
 m0.3
Electromagnetic compatibility (EMC)
Overvoltage category
  II
Pollution degree
  2
Electrostatic discharge (IEC/EN 61131-2:2008)

Air discharge (Level 3)
  kV8
Contact discharge (Level 2)
  kV4
Electromagnetic fields (IEC/EN 61131-2:2008)

80 - 1000 MHz
 V/m10
1.4 - 2 GHz
 V/m3
2 - 2.7 GHz
 V/m1
Radio interference suppression (SmartWire-DT)
  EN 55011 Class A
Burst (IEC/EN 61131-2:2008, Level 3)

Supply cable
 kV2
Signal lines
 kV1
SmartWire-DT cables
 kV1
Surge (IEC/EN 61131-2:2008, Level 1)

Surge power cables
 kV0.5
Surge I/O cables
 kV1
Radiated RFI (IEC/EN 61131-2:2008, Level 3)
 V10
SmartWire-DT network
Station type
  SmartWire-DT slave
Setting the baud rate
  automatic
Baud rate (data transfer speed)
 kbpsmaximum250
Status SmartWire-DT
 LEDGreen
Connection
  Plug, 8-pole
Connection plug: external device plug SWD4-8SF2-5
Current consumption
IemA33
Connection supply and I/O
Terminal for I/O sensor

Connection type
  Push in terminals
Solid
 mm20.2 - 1.5 (AWG 24 - 16)
Flexible with ferrule
 mm20.25 - 1.5 (AWG 24 - 16)



Minimum length 8 mm

24 V DC supply for output supply
Power supply

Rated operational voltage
UeV24 DC -15 % / +20 %
Residual ripple on the input voltage
 %
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW1.1
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C55
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Meets the product standard's requirements.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
PLC's (EG000024) / Fieldbus, decentr. periphery - digital I/O module (EC001599)
Electric engineering, automation, process control engineering / Control / Field bus, decentralized peripheral / Field bus, decentralized peripheral - digital I/O module ([email protected] [BAA055011])
Supply voltage AC 50 Hz
 V0 - 0
Supply voltage AC 60 Hz
 V0 - 0
Supply voltage DC
 V0 - 28.8
Voltage type of supply voltage
  DC
Number of digital inputs
  4
Number of digital outputs
  0
Digital inputs configurable
  No
Digital outputs configurable
  No
Input current at signal 1
 mA4
Permitted voltage at input
 V20.4 - 28.8
Type of voltage (input voltage)
  DC
Type of digital output
  None
Output current
 A0
Permitted voltage at output
 V0 - 0
Type of output voltage
  DC
Short-circuit protection, outputs available
  No
Number of HW-interfaces industrial Ethernet
  0
Number of HW-interfaces PROFINET
  0
Number of HW-interfaces RS-232
  0
Number of HW-interfaces RS-422
  0
Number of HW-interfaces RS-485
  0
Number of HW-interfaces serial TTY
  0
Number of HW-interfaces parallel
  0
Number of HW-interfaces Wireless
  0
Number of HW-interfaces other
  0
With optical interface
  No
Supporting protocol for TCP/IP
  No
Supporting protocol for PROFIBUS
  No
Supporting protocol for CAN
  No
Supporting protocol for INTERBUS
  No
Supporting protocol for ASI
  No
Supporting protocol for KNX
  No
Supporting protocol for MODBUS
  No
Supporting protocol for Data-Highway
  No
Supporting protocol for DeviceNet
  No
Supporting protocol for SUCONET
  No
Supporting protocol for LON
  No
Supporting protocol for PROFINET IO
  No
Supporting protocol for PROFINET CBA
  No
Supporting protocol for SERCOS
  No
Supporting protocol for Foundation Fieldbus
  No
Supporting protocol for EtherNet/IP
  No
Supporting protocol for AS-Interface Safety at Work
  No
Supporting protocol for DeviceNet Safety
  No
Supporting protocol for INTERBUS-Safety
  No
Supporting protocol for PROFIsafe
  No
Supporting protocol for SafetyBUS p
  No
Supporting protocol for other bus systems
  Yes
Radio standard Bluetooth
  No
Radio standard WLAN 802.11
  No
Radio standard GPRS
  No
Radio standard GSM
  No
Radio standard UMTS
  No
IO link master
  No
System accessory
  Yes
Degree of protection (IP)
  IP20
Type of electric connection
  -
Time delay at signal exchange
 ms0 - 0
Fieldbus connection over separate bus coupler possible
  Yes
Rail mounting possible
  Yes
Wall mounting/direct mounting
  Yes
Front build in possible
  No
Rack-assembly possible
  No
Suitable for safety functions
  No
Category according to EN 954-1
  None
SIL according to IEC 61508
  None
Performance level acc. to EN ISO 13849-1
  None
Appendant operation agent (Ex ia)
  No
Appendant operation agent (Ex ib)
  No
Explosion safety category for gas
  None
Explosion safety category for dust
  None
Width
 mm35
Height
 mm90
Depth
 mm97
Approvals
UL File No.  E29184
UL Category Control No.  NKCR
CSA File No.  2324643
CSA Class No.  3211-07
North America Certification  UL listed, CSA certified
Specially designed for North America  No
Dimensions
IL05006002Z (AWA2723-2479) SmartWire-DT: I/O modules

>
>
>
>
>
>
>>

Datasheet - PDF
