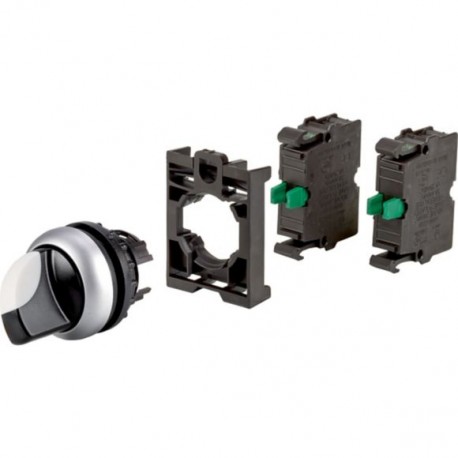

M22-WKV-2K10-BVP 110922 EATON MOELLER M22-WKV-2K10-BVPQ selector 2 Posiciones completo Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

M22-WKV-2K10-BVP 110922 EATON MOELLER M22-WKV-2K10-BVPQ selector 2 Posiciones completo

M22-WKV-2K10-BVP

110922

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

M22-WKV-2K10-BVPQ selector 2 Posiciones completo

Más detalles


Señalizacion Industrial Timbres Zumbadores Sirenas Pilotos Balizas

Auxiliares de mando y señalización RMQ-Titan - EATON - MOELLER

Selectores: estándar, luminosos y de llave - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$16.53
11+$14.54
21+$14.21
31+$14.04
41+$13.93
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Description
  Blister pack for hanging.
Complete practical solution.
Can be ordered using a single article no.
Connection to SmartWire-DT
  no
Equipment supplied
1changeover switch>M22-WKV
1mounting clamp>M22-A
2contact element>M22-K10
Technical data
General
Ambient temperature

Open
 °C-25 - +70
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA6
Heat dissipation per pole, current-dependent
PvidW0.11
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Please enquire
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Front element for selector switch (EC000222)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for selector switches ([email protected] [AKF031011])
Number of switch positions
  2
Type of control element
  Toggle
Suitable for illumination
  No
Colour control element
  Black
Colour indicator light cap
  Not applicable
Construction type lens
  Round
Hole diameter
 mm22
Width opening
 mm22
Height meter opening
 mm6
Switching function latching
  Yes
Spring-return
  Yes
Degree of protection (IP), front side
  IP66
With front ring
  Yes
Material front ring
  Plastic
Colour front ring
  Chrome
CAD data
>Product-specific CAD data
>3D Preview

Datasheet - PDF

Title:Language:Size:Type:
EATON-110922-M22-WKV-2K10-BVPEnglish150 KbytesEATON-110922-M22-WKV-2K10-BVP
