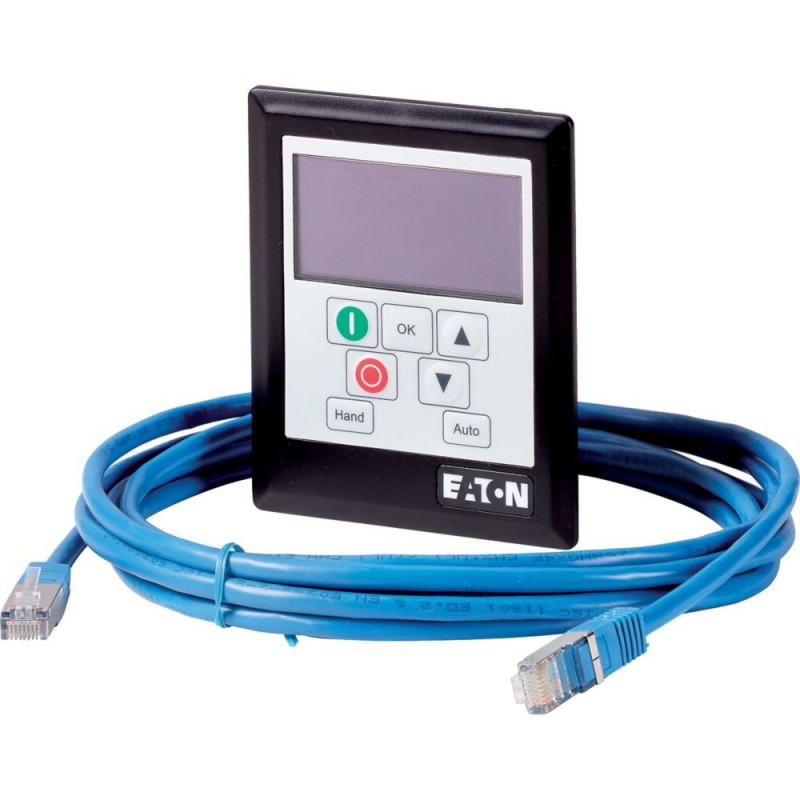

DX-KEY-OLED 169133 EATON MOELLER PowerXL Teclado externo OLED Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

DX-KEY-OLED 169133 EATON MOELLER PowerXL Teclado externo OLED

DX-KEY-OLED

169133

EATON - MOELLER

Disponible

Envío el hoy

PowerXL - Teclado externo OLED

Más detalles


Variadores Convertidores Frecuencia Velocidad

Convertidores de frecuencia - EATON - MOELLER

Convertidores de frecuencia M-MAX - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$244.03
2+$238.62
3+$236.71
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Part group reference (e.g. DIL)
  DC1
DA1
Subrange
  HMI device
Description
  with OLED display
Front IP54
Multilingual
With approx. 3 m-long, plug-in connection cable (RJ45, 8-pin)
Length
 m3
For use with
  DC1, DA1, DL1
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Operating ambient temperature min.
 °C-10
Operating ambient temperature max.
 °C50
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Please enquire
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Accessories for frequency controller (EC002025)
Electric engineering, automation, process control engineering / Electrical drive / Electrical drive (accessories) / Frequency controller (accessories) ([email protected] [ACN127008])
Type of accessory
  Control panel
Approvals
Product Standards  UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No.  E172143
UL Category Control No.  NMMS, NMMS7
CSA File No.  UL report applies to both US and Canada
North America Certification  UL listed, certified by UL for use in Canada
Specially designed for North America  No
Suitable for  Branch circuits
Degree of Protection  IEC: IP00
Dimensions
IL04012020Z Remote Keypad LED/OLED

>
>
>
>
>
>
>>

Datasheet - PDF
