DA1-124D3FB-A20C 169078 EATON MOELLER PowerXL Drive Serie DA1 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

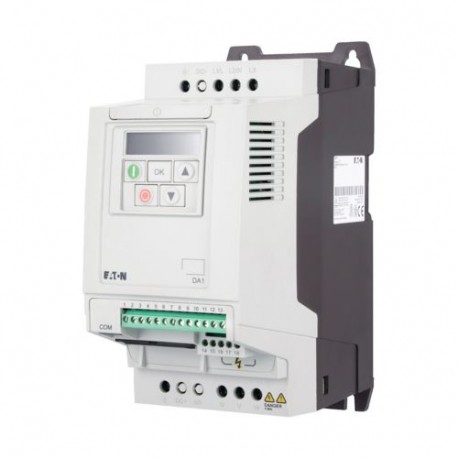

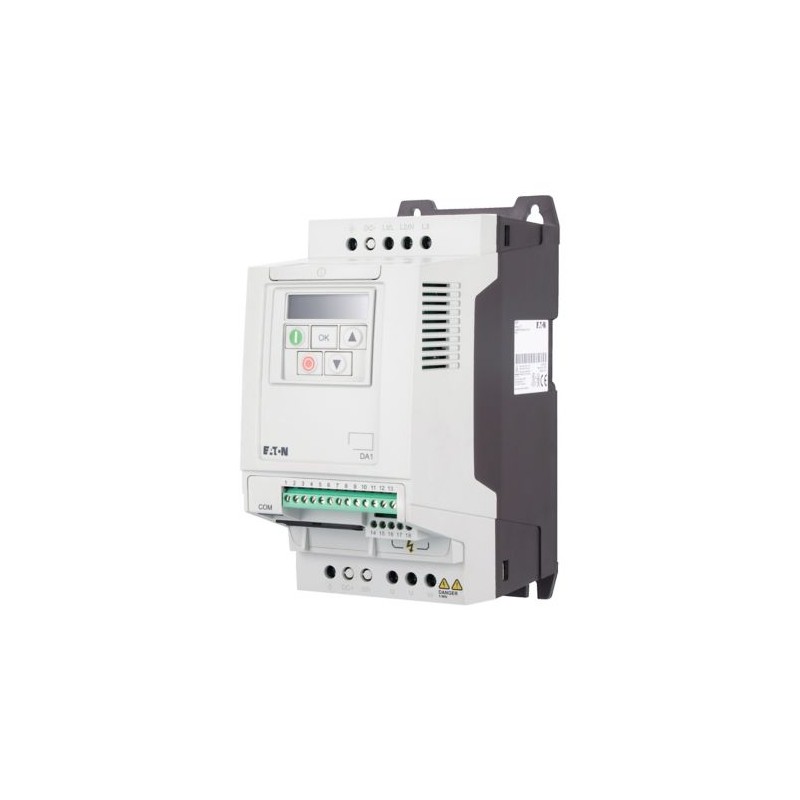

DA1-124D3FB-A20C 169078 EATON MOELLER PowerXL Drive Serie DA1

DA1-124D3FB-A20C

169078

EATON - MOELLER

Disponible

Envío el hoy

PowerXL Drive - Serie DA1

Más detalles


Convertidores de frecuencia - EATON - MOELLER

Convertidores de frecuencia M-MAX - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$502.35
2+$498.83
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  Variable frequency drives
Part group reference (e.g. DIL)
  DA1
Rated operational voltage
Ue 230 V AC, 1-phase
240 V AC, single-phase
Output voltage with Ve
U2 230 V AC, 3-phase
240 V AC, 3-phase
Mains voltage (50/60Hz)
ULNV200 (-10%) - 240 (+10%)
Rated operational current

At 150% overload
IeA4.3
Note
  Rated operational current at an operating frequency of 16 kHz and an ambient air temperature of +50 °C
Note
  Overload cycle for 60 s every 600 s
Assigned motor rating

Note
  for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
Note
  Overload cycle for 60 s every 600 s
Note
  at 230 V, 50 Hz
150 % Overload
PkW0.75
150 % Overload
IMA3.2
Note
  at 220 - 240 V, 60 Hz
150 % Overload
PHP1
150 % Overload
IMA4.2
Degree of Protection
  IP20/NEMA 0
Interface/field bus (built-in)
  OP-Bus (RS485)/Modbus RTU, CANopen®
Fieldbus connection (optional)
  Ethernet IP
DeviceNet
PROFIBUS
PROFINET
Modbus-TCP
EtherCAT
BACnet/IP
Fitted with
  Radio interference suppression filter
Brake chopper
Additional PCB protection
7-digital display assembly
Frame size
  FS2
Connection to SmartWire-DT
  with SmartWire-DT module DX-NET-SWD1
Technical data
General
Standards
  Specification for general requirements: IEC/EN 61800-2
EMC requirements: IEC/EN 61800-3
Safety requirements: IEC/EN 61800-5-1
Certifications
  CE, UL, cUL, c-Tick, Ukr Sepro, EAC
Production quality
  RoHS, ISO 9001
Climatic proofing
ρw%< 95%, average relative humidity (RH), non-condensing, non-corrosive
Ambient temperature

operation (150 % overload)
ϑ°C-10 - +50
Storage
ϑ°C-40 - +60
Radio interference level

Radio interference class (EMC)
  C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Environment (EMC)
  1st and 2nd environments
maximum motor cable length
ImC1 ≤ 1 m
C2 ≤ 5 m
C3 ≤ 25 m
Mounting position
  Vertical
Altitude
 m0 - 1000 m above sea level
Above 1000 m: 1% derating for every 100 m
max. 4000 m
Degree of Protection
  IP20/NEMA 0
Protection against direct contact
  BGV A3 (VBG4, finger- and back-of-hand proof)
Main circuit
Supply

Rated operational voltage
Ue 230 V AC, 1-phase
240 V AC, single-phase
Mains voltage (50/60Hz)
ULNV200 (-10%) - 240 (+10%)
Input current (150% overload)
ILNA8.5
System configuration
  AC supply systems with earthed center point
Supply frequency
fLNHz50/60
Frequency range
fLNHz48 - 62
Mains switch-on frequency
  Maximum of one time every 30 seconds
Power section

Function
  Frequency inverter with internal DC link and IGBT inverter
Overload current (150% overload)
ILA6.45
max. starting current (High Overload)
IH%200
Note about max. starting current
  for 4 seconds every 40 seconds
Output voltage with Ve
U2 230 V AC, 3-phase
240 V AC, 3-phase
Output Frequency
f2Hz0 - 50/60 (max. 500)
Switching frequency
fPWMkHz16
adjustable 4 - 32 (audible)
Operation Mode
  U/f control
Speed control with slip compensation
sensorless vector control (SLV)
optional: Vector control with feedback (CLV)
Frequency resolution (setpoint value)
ΔfHz0.1
Rated operational current

At 150% overload
IeA4.3
Note
  Rated operational current at an operating frequency of 16 kHz and an ambient air temperature of +50 °C
Power loss

Heat dissipation at rated operational current
PVW45.75
Efficiency
η%93.9
Maximum leakage current to ground (PE) without motor
IPEmA2.49
Fitted with
  Radio interference suppression filter
Brake chopper
Additional PCB protection
7-digital display assembly
Safety function
  STO (Safe Torque Off, SIL1, PLc Cat 1)
Frame size
  FS2
Motor feeder

Note
  for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
Note
  Overload cycle for 60 s every 600 s
Note
  at 230 V, 50 Hz
150 % Overload
PkW0.75
Note
  at 220 - 240 V, 60 Hz
150 % Overload
PHP1
maximum permissible cable length
Imscreened: 100
screened, with motor choke: 200
unscreened: 150
unscreened, with motor choke: 300
Apparent power

Apparent power at rated operation 230 V
SkVA1.71
Apparent power at rated operation 240 V
SkVA1.79
Braking function

Standard braking torque
  max. 30 % MN
DC braking torque
  adjustable to 100 %
Braking torque with external braking resistance
  Max. 100% of rated operational current Ie with external braking resistor
minimum external braking resistance
Rmin100
Switch-on threshold for the braking transistor
UDCV390 V DC
Control section
External control voltage
UcV24 V DC (max. 100 mA)
Reference voltage
UsV10 V DC (max. 10 mA)
Analog inputs
  2, parameterizable, 0 - 10 V DC, 0/4 - 20 mA
Analog outputs
  2, parameterizable, 0 - 10 V, 0/4 - 20 mA
Digital inputs
  3, parameterizable, max. 30 VDC, max. 5 for non-parameterized analog inputs
Digital outputs
  2, parameterizable, 24 V DC
Relay outputs
  2, parameterizable, 1 N/O and 1 changeover contact, 6 A (250 V, AC-1) / 5 A (30 V, DC-1)
Interface/field bus (built-in)
  OP-Bus (RS485)/Modbus RTU, CANopen®
Assigned switching and protective elements
Power Wiring

IEC (Type B, gG), 150 %
  FAZ-B10/1N
UL (Class CC or J)
 A10
150 % overload (CT/IH, at 50 °C)
  DX-LN1-013
Motor feeder

150 % overload (CT/IH, at 50 °C)
  DX-LM3-005
150 % overload (CT/IH, at 50 °C)
  DX-SIN3-010
10 % duty factor (DF)
  DX-BR100-0K2
20 % duty factor (DF)
  DX-BR100-0K4
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA4.3
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW45.75
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-10
Operating ambient temperature max.
 °C50
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Frequency converter =< 1 kV (EC001857)
Electric engineering, automation, process control engineering / Electrical drive / Static frequency converter / Static frequency converter = < 1 kv ([email protected] [AKE177011])
Mains voltage
 V200 - 240
Mains frequency
  50/60 Hz
Number of phases input
  1
Number of phases output
  3
Max. output frequency
 Hz500
Max. output voltage
 V230
Rated output current I2N
 A4.3
Max. output at quadratic load at rated output voltage
 kW0.75
Max. output at linear load at rated output voltage
 kW0.75
With control unit
  Yes
Application in industrial area permitted
  Yes
Application in domestic- and commercial area permitted
  Yes
Supporting protocol for TCP/IP
  No
Supporting protocol for PROFIBUS
  Yes
Supporting protocol for CAN
  Yes
Supporting protocol for INTERBUS
  No
Supporting protocol for ASI
  No
Supporting protocol for KNX
  No
Supporting protocol for MODBUS
  Yes
Supporting protocol for Data-Highway
  No
Supporting protocol for DeviceNet
  No
Supporting protocol for SUCONET
  No
Supporting protocol for LON
  No
Supporting protocol for PROFINET IO
  Yes
Supporting protocol for PROFINET CBA
  No
Supporting protocol for SERCOS
  No
Supporting protocol for Foundation Fieldbus
  No
Supporting protocol for EtherNet/IP
  Yes
Supporting protocol for AS-Interface Safety at Work
  No
Supporting protocol for DeviceNet Safety
  No
Supporting protocol for INTERBUS-Safety
  No
Supporting protocol for PROFIsafe
  No
Supporting protocol for SafetyBUS p
  No
Supporting protocol for other bus systems
  No
Number of HW-interfaces industrial Ethernet
  0
Number of HW-interfaces PROFINET
  0
Number of HW-interfaces RS-232
  0
Number of HW-interfaces RS-422
  0
Number of HW-interfaces RS-485
  1
Number of HW-interfaces serial TTY
  0
Number of HW-interfaces USB
  1
Number of HW-interfaces parallel
  0
Number of HW-interfaces other
  0
With optical interface
  No
With PC connection
  Yes
Integrated breaking resistance
  Yes
4-quadrant operation possible
  No
Type of converter
  U converter
Degree of protection (IP)
  IP20
Height
 mm231
Width
 mm107
Depth
 mm186
Relative symmetric net frequency tolerance
 %5
Relative symmetric net current tolerance
 %10
Approvals
Product Standards  UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No.  E172143
UL Category Control No.  NMMS, NMMS7
CSA File No.  UL report applies to both US and Canada
North America Certification  UL listed, certified by UL for use in Canada
Specially designed for North America  No
Suitable for  Branch circuits
Max. Voltage Rating  1~ 240 V AC IEC: TN-S UL/CSA: Y (Solidly Grounded Wey)
Degree of Protection  IEC: IP20
Dimensions
IL04020010Z DA1 variable frequency drives (FS2 - FS3, IP20)

>
>
>>

Datasheet - PDF

Opiniones: (0)

Ningún comentario por el momento.

Añadir comentario
ocultar
Valoración:
Nombre:
Email:
Título:
Opinión:
  Captcha
  Añadir comentario
¿Tiene dudas con la compra?

Si tiene dudas con la compra, puede visitar los siguientes links o enviarnos un correo

Por favor, espere.





* Campos obligatorios
