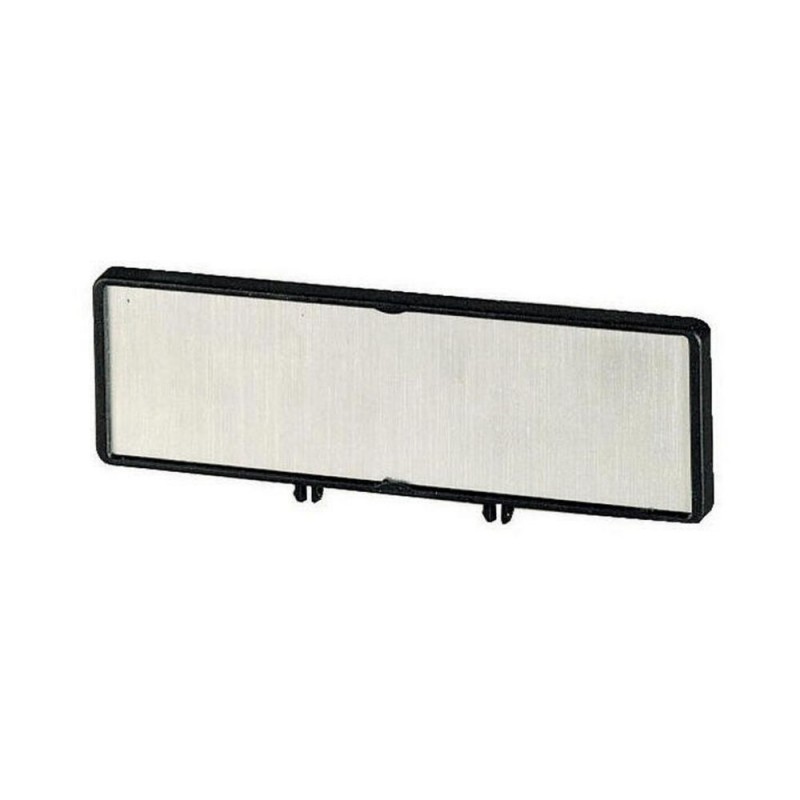

ZFS82-NZM 104910 EATON MOELLER Placa Indicadora Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

ZFS82-NZM 104910 EATON MOELLER Placa Indicadora

ZFS82-NZM

104910

EATON - MOELLER

Disponible

Envío el hoy

Placa Indicadora

Más detalles


Interruptores Magnetotermicos Automatico Control Potencia Icp

Interruptores NZM y LZM (Accesorios) - EATON - MOELLER

Interruptores NZM y LZM (Accesorios) - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$4.31
27+$3.46
54+$3.37
80+$3.32
107+$3.29
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  Accessories
Accessories
  External warning plate
Standard/Approval
  UL/CSA, IEC
Construction size
  NZM1/2/3/4
Description


Switch function label

Function
  “Main switch – open in 0 position” - Chinese/English
For use with
  NZM1(-4), PN1(-4), N(S)1(-4)
NZM2(-4), PN2(-4), N(S)2(-4)
NZM3(-4), PN3(-4), N(S)3(-4)
NZM4(-4), N(S)4(-4)
Function
  “Main switch – open in 0 position” - Chinese/English
N-terminal
  “Main switch – open in 0 position” - chinese/english
Notes

A bilingual external warning plate/designation label in German/English is already included in the main switch assembly kit.

Design verification as per IEC/EN 61439(Show features)(Hide features)
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Auxiliary material (EG000060) / Warning/signing plate (EC001777)
Occupational safety, accident prevention / Sign, mandatory sign, traffic sign / Sign / Warning sign ([email protected] [AAE738009])
Material
  Plastic
Material quality
  -
With alert-/information symbol
  No
With alert-/information text
  Yes
Width
 mm27
Height
 mm5
Diameter
 mm0
Thickness
 mm5
Self adhesive mounting
  No
After glowing
  No
Colour
  Silver

Datasheet - PDF
