EASY209-SE 101520 EATON MOELLER Modulo comunicación Ethernet Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

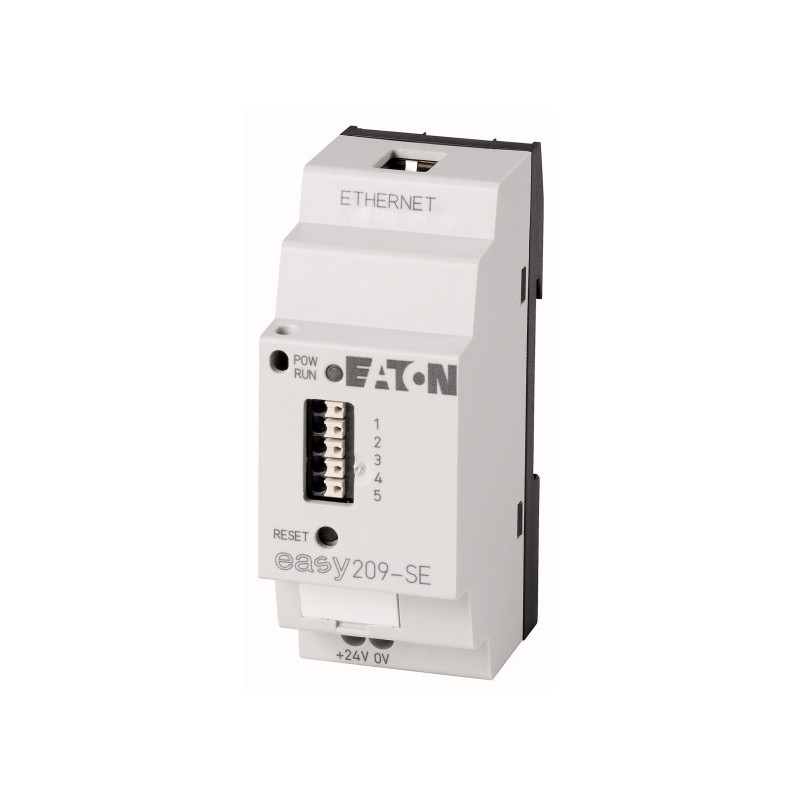

EASY209-SE 101520 EATON MOELLER Modulo comunicación Ethernet

EASY209-SE

101520

EATON - MOELLER

Disponible

Envío el hoy

Modulo comunicación Ethernet

Más detalles


Seguridad Maquinas

Relé de seguridad programable ES4P - EATON - MOELLER

easySafety - ES4P - Ampliaciones de entrada/salida - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$253.47
2+$247.59
3+$244.68
4+$244.36
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  Control relays easyRelay
Multi-function-display MFD-Titan
Subrange
  Ethernet gateway
Basic function
  Expansions
Function
  serial interface easyRelay or MFD-...CP8/CP10... to Ethernet
for connection to easyOPC server, easySoft, or easyCom
For use with
  easy500
easy700
easy800
MFD-CP8..
ES4P
Technical data
General
Standards
  EN 55011, EN 55022, IEC/EN 61000-4, EN 50178
Dimensions (W x H x D)
 mm35.5 x 90 x 58 (2 PE)
Weight
 kg0.15
Mounting
  Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Terminal capacities
Solid
 mm20.2/4 (AWG 22 - 12)
Flexible with ferrule
 mm20.2/2.5 (AWG 22 - 12)
Standard screwdriver
 mm3.5 x 0.8
Max. tightening torque
 Nm0.6
Data cable
Solid
 mm20.25/1.5 (AWG 24/16)
Flexible with ferrule
 mm20.14/ 1 (AWG 26/17)
Climatic environmental conditions
Operating ambient temperature
 °C-25 to + 55
Condensation
  Take appropriate measures to prevent condensation
Storage
 °C- 40 - 70
Relative humidity, non-condensing (IEC/EN 60068-2-30)
 %5 - 95
Air pressure (operation)
 hPa795 - 1080
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
  IP20
Vibrations (IEC/EN 60068-2-6)
 Hz
Constant amplitude 0.15 mm
 Hz10 - 57
Constant acceleration 2 g
 Hz57 - 150
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
 Impacts18
Drop to IEC/EN 60068-2-31
Drop heightmm50
Free fall, packaged (IEC/EN 60068-2-32)
 m1
Mounting position
  Vertical or horizontal
Electromagnetic compatibility (EMC)
Overvoltage category/pollution degree
  II/2
Electrostatic discharge (IEC/EN 61000-4-2, Level 3, ESD)
 kV
Air discharge
 kV8
Contact discharge
 kV6
Electromagnetic fields (IEC/EN 61000-4-3, RFI)
V/m RS-232 line without screen: 3, with screen: 10
Radio interference suppression
  EN 55011 Class B, EN 55022 Class B
Burst Impulse (IEC/EN 61000-4-4, Level 3)

Supply cable
 kV2
Ethernet interface cable
 kV2
COM interface cable
 kV2
power pulses (surge) (IEC/EN 61000-4-5, level 2)
 kV1 (supply cables, symmetrical)
Immunity to line-conducted interference to (IEC/EN 61000-4-6)
 VRS-232 line without screen: 3, with screen: 10
Insulation resistance
Clearance in air and creepage distances
  EN 50178, UL 508, CSA C22.2, No. 142
Insulation resistance
  EN 50178
Power supply
Rated operational voltage
UeV24 (-15/+20 %)
Admissible range
 V DC20.4 - 28.8
Residual ripple
 %5
max. current consumption (at 24 V DC)
 mANormally 65
Heat dissipation at 24 V DC
 W1.7
Note on heat dissipation
  Current consumption at 24 V DC
Protection against polarity reversal
AS-I power supply
  Yes
LEDs
Supply
  Front power LED: ON
LED display
  Front-LED COM active: flashing
RJ45 socket, top
  No Activity: OFF, Amber: Half Duplex, Green: Full Duplex
RJ45 socket, bottom
  No Link: OFF, Amber: 10 MBit/s, Green: 100 MBit/s
Reset
  Front: via buttons > 2s
Strain relief
  Via cable binders in retaining nipples
Network
Bus addresses
  Factory settings Ethernet: IP address 0.0.0.0 SUBNET mask: 255.255.0.0 Gateway address 0.0.0.0 Remote address 0.0.0.0
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW1.7
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C55
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Meets the product standard's requirements.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
PLC's (EG000024) / Logic module (EC001417)
Electric engineering, automation, process control engineering / Control / Programmable logic control (SPS) / Logic module ([email protected] [AKE539011])
Supply voltage AC 50 Hz
 V0 - 0
Supply voltage AC 60 Hz
 V0 - 0
Supply voltage DC
 V20.4 - 28.8
Voltage type of supply voltage
  DC
Switching current
 A0
Number of analogue inputs
  0
Number of analogue outputs
  0
Number of digital inputs
  0
Number of digital outputs
  0
With relay output
  No
Number of HW-interfaces industrial Ethernet
  1
Number of HW-interfaces PROFINET
  0
Number of HW-interfaces RS-232
  1
Number of HW-interfaces RS-422
  0
Number of HW-interfaces RS-485
  0
Number of HW-interfaces serial TTY
  0
Number of HW-interfaces USB
  0
Number of HW-interfaces parallel
  0
Number of HW-interfaces Wireless
  0
Number of HW-interfaces other
  0
With optical interface
  No
Supporting protocol for TCP/IP
  Yes
Supporting protocol for PROFIBUS
  No
Supporting protocol for CAN
  No
Supporting protocol for INTERBUS
  No
Supporting protocol for ASI
  No
Supporting protocol for KNX
  No
Supporting protocol for MODBUS
  No
Supporting protocol for Data-Highway
  No
Supporting protocol for DeviceNet
  No
Supporting protocol for SUCONET
  No
Supporting protocol for LON
  No
Supporting protocol for PROFINET IO
  No
Supporting protocol for PROFINET CBA
  No
Supporting protocol for SERCOS
  No
Supporting protocol for Foundation Fieldbus
  No
Supporting protocol for EtherNet/IP
  No
Supporting protocol for AS-Interface Safety at Work
  No
Supporting protocol for DeviceNet Safety
  No
Supporting protocol for INTERBUS-Safety
  No
Supporting protocol for PROFIsafe
  No
Supporting protocol for SafetyBUS p
  No
Supporting protocol for other bus systems
  No
Radio standard Bluetooth
  No
Radio standard WLAN 802.11
  No
Radio standard GPRS
  No
Radio standard GSM
  No
Radio standard UMTS
  No
IO link master
  No
Redundancy
  No
With display
  No
Degree of protection (IP)
  IP20
Basic device
  No
Expandable
  Yes
Expansion device
  Yes
With timer
  No
Rail mounting possible
  Yes
Wall mounting/direct mounting
  Yes
Front build in possible
  No
Rack-assembly possible
  No
Suitable for safety functions
  No
Category according to EN 954-1
  None
SIL according to IEC 61508
  None
Performance level acc. to EN ISO 13849-1
  None
Appendant operation agent (Ex ia)
  No
Appendant operation agent (Ex ib)
  No
Explosion safety category for gas
  None
Explosion safety category for dust
  None
Width
 mm36
Height
 mm90
Depth
 mm60
Approvals
Product Standards  IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking
UL File No.  E135462
UL Category Control No.  NRAQ, NRAQ7
CSA File No.  012528
CSA Class No.  2252-01 + 2258-02
North America Certification  UL listed, CSA certified
Degree of Protection  IEC: IP20, UL/CSA Type: -
Dimensions
IL05013019Z (AWA2528-2294) Gateway Ethernet: serial interface control relay easy

>
>
>
>
>
>
>>
