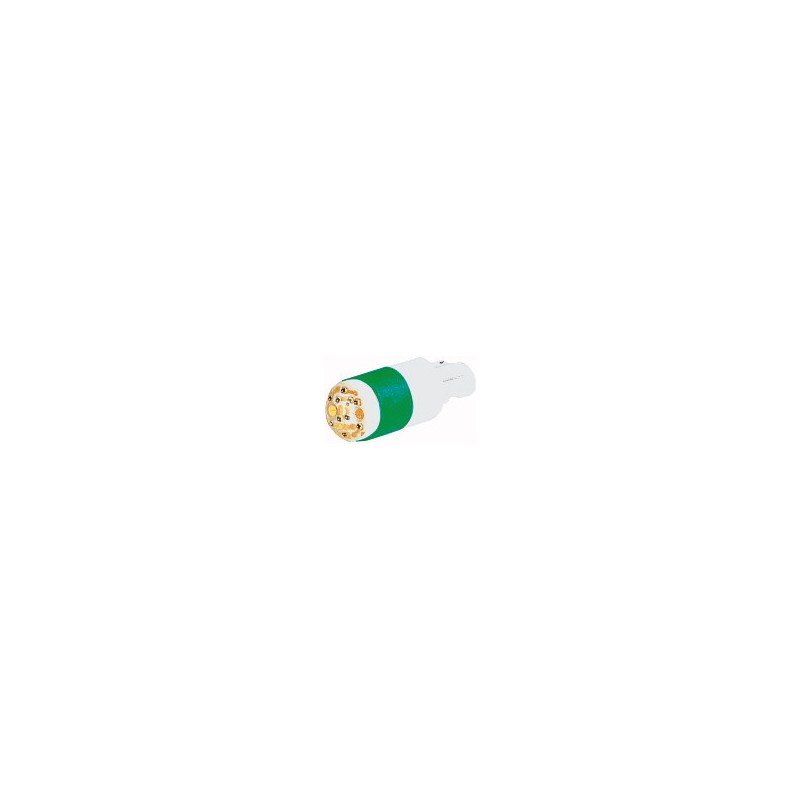

WBLED-GN6 055712 EATON MOELLER Lámpara de LEDs, Verde, 6V Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

WBLED-GN6 055712 EATON MOELLER Lámpara de LEDs, Verde, 6V

WBLED-GN6

055712

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

Lámpara de LEDs, Verde, 6V

Más detalles


Señalizacion Industrial Timbres Zumbadores Sirenas Pilotos Balizas

Auxiliares de mando y señalización RMQ-16 y SL - EATON - MOELLER

Lámparas de señalización - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$14.25
14+$12.31
27+$12.03
40+$11.88
53+$11.78
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  RMQ16 (drilling dimensions 16 mm)
Basic function
  Accessories
Basic function accessories
  Multiple LED
Single unit/Complete unit
  Single unit

  For AC/DC
Type
  6 V/45 mA
Lifespan to EN 60064 at ta = +25 °C
tmean (AC)h60000
Colour


  green


Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0.27
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C60
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Lamps (EG000028) / Single LED (EC001019)
Electric engineering, automation, process control engineering / Lighting installation, device / Light medium / Single LED ([email protected] [AKE247010])
Colour
  Green
Luminous flux
 lm0
Nominal voltage
 V6
Voltage type
  DC
Nominal current
 mA45
Power consumption
 W0.27
Diameter
 mm0
Length
 mm0
Radiation angle
 °360
Energy efficiency class
  Not applicable
Weighted energy consumption in 1,000 hours
 kWh270
Average nominal lifespan
 h60000
Approvals
North America Certification  UL/CSA certification not required

Datasheet - PDF
