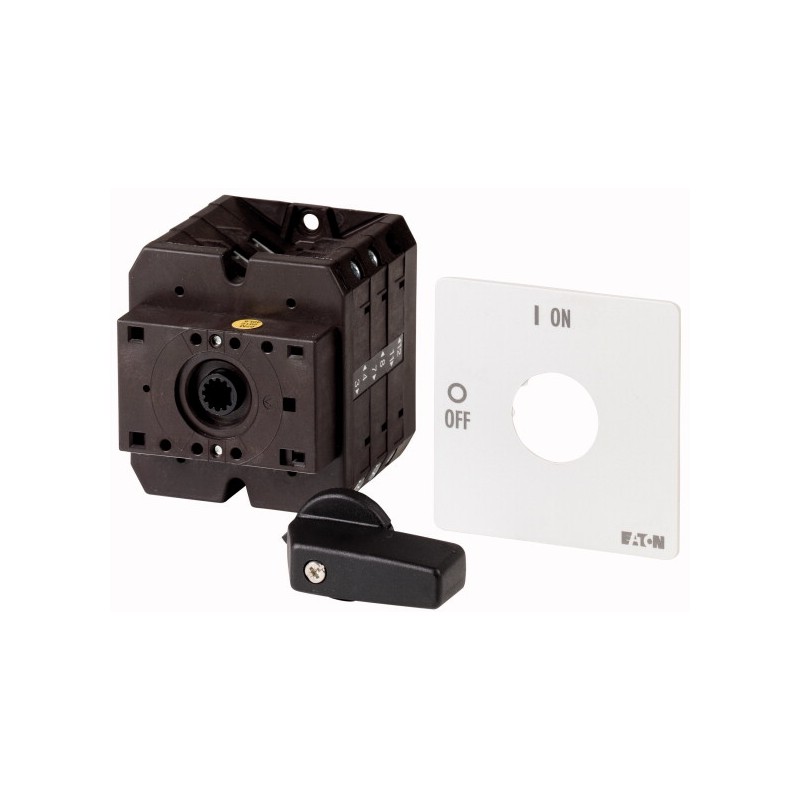

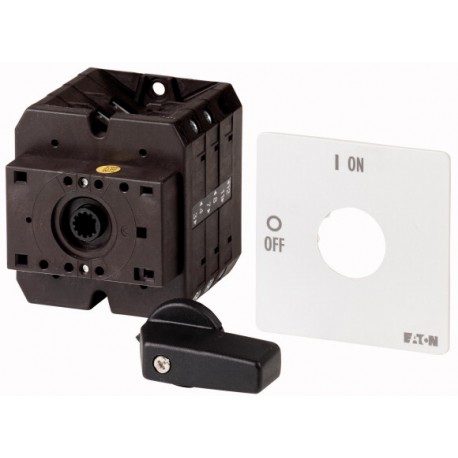

T5B-4-8213/X 092110 EATON MOELLER Interruptores P & T Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

T5B-4-8213/X 092110 EATON MOELLER Interruptores P & T

T5B-4-8213/X

092110

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

Interruptores P & T

Más detalles


Interruptores T y P - EATON - MOELLER

Conmutadores de polos - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$126.33
2+$122.89
3+$121.19
4+$120.10
6+$118.81
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  Control switches
Part group reference
  T5B
Basic function
  Changeoverswitches
Contacts
  8
Design
  rear mounting
Basic switch
Contact sequence

General
Standards
  IEC/EN 60947, VDE 0660, IEC/EN 60204
Switch-disconnector according to IEC/EN 60947-3
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature

Open
 °C-25 - +50
Enclosed
 °C-25 - +40
Overvoltage category/pollution degree
  III/3
Rated impulse withstand voltage
UimpV AC6000
Mechanical shock resistance
 g15
Mounting position
  As required
Protection against direct contact when actuated from front (EN 50274)
  Finger and back-of-hand proof
Contacts
Electrical characteristics

Rated operational voltage
UeV AC690
Rated uninterrupted current
IuA63
Note on rated uninterrupted current !u
  Rated uninterrupted current Iu is specified for max. cross-section.
Load rating with intermittent operation, class 12

AB 25 % DF
 x Ie2
AB 40 % DF
 x Ie1.6
AB 60 % DF
 x Ie1.3
Short-circuit rating

Fuse
 A gG/gL80
Rated short-time withstand current (1 s current)
IcwArms1300
Note on rated short-time withstand current lcw
  Current for a time of 1 second
Rated conditional short-circuit current
IqkA2
Switching capacity
cos ϕ rated making capacity as per IEC 60947-3
 A800
Rated breaking capacity cos ϕ to IEC 60947-3
 A
230 V
 A520
400/415 V
 A600
500 V
 A480
690 V
 A340
Safe isolation to EN 61140

between the contacts
 V AC440
Current heat loss per contact at Ie
 W4.5
Current heat loss per auxiliary circuit at Ie (AC-15/230 V)
 CO4.5
Lifespan, mechanical
Operationsx 106> 0.5
Maximum operating frequency
Operations/h 1200
AC

AC-3

Rating, motor load switch
PkW
220 V 230 V
PkW15
230 V Star-delta
PkW18.5
400 V 415 V
PkW22
400 V Star-delta
PkW30
500 V
PkW22
500 V Star-delta
PkW37
690 V
PkW15
690 V Star-delta
PkW22
Rated operational current motor load switch

230 V
IeA51
230 V star-delta
IeA63
400V 415 V
IeA41
400 V star-delta
IeA63
500 V
IeA33
500 V star-delta
IeA57.2
690 V
IeA17
690 V star-delta
IeA29.4
AC-21A

Rated operational current switch

440 V
IeA63
AC-23A

Motor rating AC-23A, 50 - 60 Hz
PkW
230 V
PkW18.5
400 V 415 V
PkW30
500 V
PkW22
690 V
PkW22
Rated operational current motor load switch

230 V
IeA63
400 V 415 V
IeA63
500 V
IeA33
690 V
IeA23.8
DC

DC-1, Load-break switches L/R = 1 ms

Rated operational current
IeA63
Voltage per contact pair in series
 V60
DC-23A, motor load switchL/R = 15 ms

24 V

Rated operational current
IeA50
Contacts
 Quantity1
48 V

Rated operational current
IeA50
Contacts
 Quantity2
60 V

Rated operational current
IeA50
Contacts
 Quantity3
120 V

Rated operational current
IeA25
Contacts
 Quantity3
240 V

Rated operational current
IeA20
Contacts
 Quantity6
DC-13, Control switches L/R = 50 ms

Rated operational current
IeA25
Voltage per contact pair in series
 V24
Control circuit reliability at 24 V DC, 10 mA
Fault probabilityHF< 10 -5, < 1 fault in 100000 operations
Terminal capacities
Solid or stranded
 mm21 x (2,5 - 35)
2 x (2,5 - 16)
Flexible with ferrules to DIN 46228
 mm21 x (1 - 25)
2 x (1.5 - 10)
Terminal screw
  M6
Max. tightening torque
 Nm4
Technical safety parameters:
Notes
  B10d values as per EN ISO 13849-1, table C1
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Off-load switch (EC001105)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Changeover switch ([email protected] [AKF062010])
Model
  Reverser
Number of poles
  4
With 0 (off) position
  Yes
With retraction in 0-position
  No
Rated permanent current Iu
 A63
Rated operation current Ie at AC-3, 400 V
 A41
Rated operation power at AC-3, 400 V
 kW22
Degree of protection (IP), front side
  -
Number of auxiliary contacts as normally closed contact
  0
Number of auxiliary contacts as normally open contact
  0
Number of auxiliary contacts as change-over contact
  0
Suitable for ground mounting
  No
Suitable for front mounting 4-hole
  Yes
Suitable for distribution board installation
  No
Suitable for intermediate mounting
  No
Complete device in housing
  No
Type of control element
  -
Type of electrical connection of main circuit
  Screw connection
