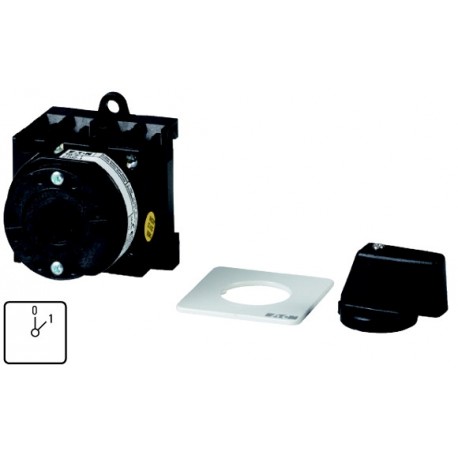

T0-1-15402/XZ 009266 EATON MOELLER Interruptores P & T Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

T0-1-15402/XZ 009266 EATON MOELLER Interruptores P & T

T0-1-15402/XZ

009266

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

Interruptores P & T

Más detalles


Interruptores

Interruptores T y P - EATON - MOELLER

Interruptores de maniobra - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$32.04
7+$29.09
13+$28.46
19+$28.13
25+$27.91
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  Control switches
Part group reference
  T0
Contacts
  2
Design
  rear mounting
Basic switch
Contact sequence

General
Standards
  IEC/EN 60947, VDE 0660, IEC/EN 60204
Switch-disconnector according to IEC/EN 60947-3
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature

Open
 °C-25 - +50
Enclosed
 °C-25 - +40
Overvoltage category/pollution degree
  III/3
Rated impulse withstand voltage
UimpV AC6000
Mechanical shock resistance
 g15
Mounting position
  As required
Protection against direct contact when actuated from front (EN 50274)
  Finger and back-of-hand proof
Contacts
Electrical characteristics

Rated operational voltage
UeV AC690
Rated uninterrupted current
IuA20
Note on rated uninterrupted current !u
  Rated uninterrupted current Iu is specified for max. cross-section.
Load rating with intermittent operation, class 12

AB 25 % DF
 x Ie2
AB 40 % DF
 x Ie1.6
AB 60 % DF
 x Ie1.3
Short-circuit rating

Fuse
 A gG/gL20
Rated short-time withstand current (1 s current)
IcwArms320
Note on rated short-time withstand current lcw
  Current for a time of 1 second
Rated conditional short-circuit current
IqkA6
Switching capacity
cos ϕ rated making capacity as per IEC 60947-3
 A130
Rated breaking capacity cos ϕ to IEC 60947-3
 A
230 V
 A100
400/415 V
 A110
500 V
 A80
690 V
 A60
Safe isolation to EN 61140

between the contacts
 V AC440
Current heat loss per contact at Ie
 W0.6
Current heat loss per auxiliary circuit at Ie (AC-15/230 V)
 CO0.6
Lifespan, mechanical
Operationsx 106> 0.4
Maximum operating frequency
Operations/h 1200
AC

AC-3

Rating, motor load switch
PkW
220 V 230 V
PkW3
230 V Star-delta
PkW5.5
400 V 415 V
PkW5.5
400 V Star-delta
PkW7.5
500 V
PkW5.5
500 V Star-delta
PkW7.5
690 V
PkW4
690 V Star-delta
PkW5.5
Rated operational current motor load switch

230 V
IeA11.5
230 V star-delta
IeA20
400V 415 V
IeA11.5
400 V star-delta
IeA20
500 V
IeA9
500 V star-delta
IeA15.6
690 V
IeA4.9
690 V star-delta
IeA8.5
AC-21A

Rated operational current switch

440 V
IeA20
AC-23A

Motor rating AC-23A, 50 - 60 Hz
PkW
230 V
PkW3
400 V 415 V
PkW5.5
500 V
PkW7.5
690 V
PkW5.5
Rated operational current motor load switch

230 V
IeA13.3
400 V 415 V
IeA13.3
500 V
IeA13.3
690 V
IeA7.6
DC

DC-1, Load-break switches L/R = 1 ms

Rated operational current
IeA10
Voltage per contact pair in series
 V60
DC-21A
IeA
Rated operational current
IeA1
Contacts
 Quantity1
DC-23A, motor load switchL/R = 15 ms

24 V

Rated operational current
IeA10
Contacts
 Quantity1
48 V

Rated operational current
IeA10
Contacts
 Quantity2
60 V

Rated operational current
IeA10
Contacts
 Quantity3
120 V

Rated operational current
IeA5
Contacts
 Quantity3
240 V

Rated operational current
IeA5
Contacts
 Quantity5
DC-13, Control switches L/R = 50 ms

Rated operational current
IeA10
Voltage per contact pair in series
 V32
Control circuit reliability at 24 V DC, 10 mA
Fault probabilityHF< 10 -5, < 1 fault in 100000 operations
Terminal capacities
Solid or stranded
 mm21 x (1 - 2,5)
2 x (1 - 2,5)
Flexible with ferrules to DIN 46228
 mm21 x (0.75 - 2.5)
2 x (0.75 - 2.5)
Terminal screw
  M3.5
Max. tightening torque
 Nm1
Technical safety parameters:
Notes
  B10d values as per EN ISO 13849-1, table C1
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Control switch (EC002611)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Control switch ([email protected] [ACN998008])
Type of switch
  On/Off switch
Number of poles
  2
Max. rated operation voltage Ue AC
 V690
Rated permanent current Iu
 A20
Number of switch positions
  2
With 0 (off) position
  Yes
With retraction in 0-position
  No
Device construction
  Built-in device
Width in number of modular spacings
  0
Suitable for ground mounting
  Yes
Suitable for front mounting 4-hole
  No
Suitable for distribution board installation
  No
Suitable for intermediate mounting
  Yes
Complete device in housing
  No
Type of control element
  -
Front shield size
  48x48 mm
Degree of protection (IP), front side
  IP00

Datasheet - PDF
