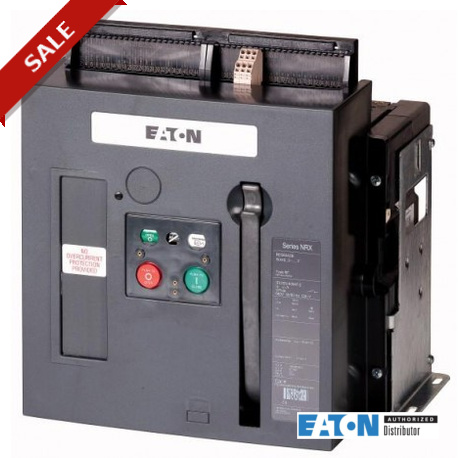

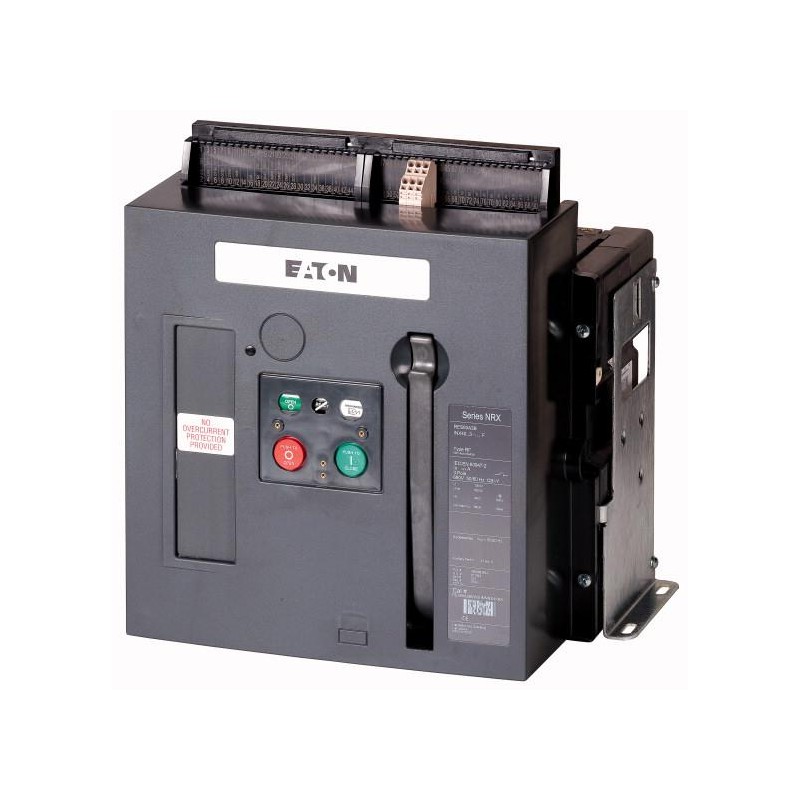

INX40B3-16F 150048 EATON MOELLER RES6163BSW0NMNN2MN1X Interruptor-Seccionador,3P,1600A,fijo Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

INX40B3-16F 150048 EATON MOELLER RES6163BSW0NMNN2MN1X Interruptor-Seccionador,3P,1600A,fijo

INX40B3-16F

150048

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

RES6163BSW0NMNN2MN1X Interruptor-Seccionador,3P,1600A,fijo

Más detalles


Interruptores Magnetotermicos Automatico Control Potencia Icp

Interruptores automáticos IZM - EATON - MOELLER

Interruptores seccionadores IN - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  Air circuit-breakers/switch-disconnectors
Product range
  Open switch-disconnectors
Current Range
  Up to 4000 A
Installation type
  Fixed
Construction size
  INX40
Release system
  without releases
Standard/Approval
  IEC
Number of poles
  3 pole
Degree of Protection
  IP20, IP55 with protective cover, IP41 door sealing frame

  optionally fittable by user with comprehensive accessories
Rated current = rated uninterrupted current
In = IuA1600
Making capacity Icm to 440 V 50/60 Hz
IcmkA145
t = 1 s
IcwkA66
t = 3 s
IcwkA53
Technical data
General
Standards
  IEC/EN 60947
Ambient temperature

Storage
ϑ°C-40 - +70
Ambient temperature
 °C-25 - +70
Mounting position

Technical data for design verification

Rated operational current for specified heat dissipation
InA1600
Equipment heat dissipation, current-dependent
PvidW140
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Switch disconnector (EC000216)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Switch disconnector ([email protected] [AKF060010])
Version as main switch
  Yes
Version as maintenance-/service switch
  No
Version as safety switch
  No
Version as emergency stop installation
  No
Version as reversing switch
  No
Max. rated operation voltage Ue AC
 V690
Rated operating voltage
 V690 - 690
Rated permanent current Iu
 A1600
Rated permanent current at AC-21, 400 V
 A0
Rated operation power at AC-3, 400 V
 kW0
Rated short-time withstand current lcw
 kA66
Rated operation power at AC-23, 400 V
 kW0
Switching power at 400 V
 kW0
Conditioned rated short-circuit current Iq
 kA144
Number of poles
  3
Number of auxiliary contacts as normally closed contact
  0
Number of auxiliary contacts as normally open contact
  0
Number of auxiliary contacts as change-over contact
  2
Motor drive optional
  Yes
Motor drive integrated
  No
Voltage release optional
  Yes
Device construction
  Built-in device fixed built-in technique
Suitable for ground mounting
  Yes
Suitable for front mounting 4-hole
  No
Suitable for front mounting center
  No
Suitable for distribution board installation
  Yes
Suitable for intermediate mounting
  No
Colour control element
  Green
Type of control element
  Push button
Interlockable
  Yes
Type of electrical connection of main circuit
  Rail connection
Degree of protection (IP), front side
  IP20

Datasheet - PDF
