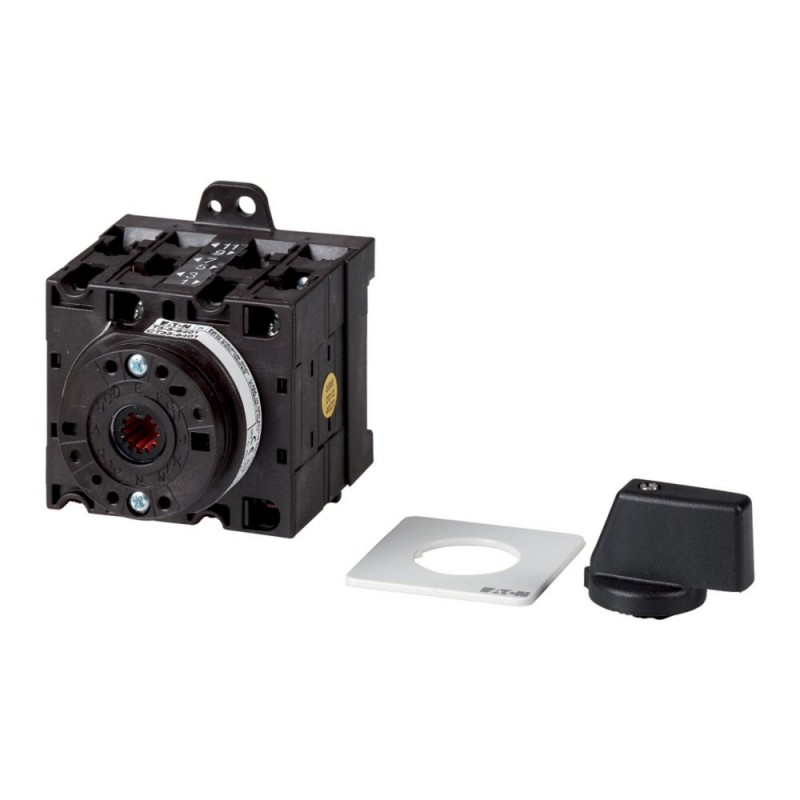

T3-4-8440/XZ 020627 EATON MOELLER Interruptor de levas, Ie: 32A a 440V AC-21 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

T3-4-8440/XZ 020627 EATON MOELLER Interruptor de levas, Ie: 32A a 440V AC-21

T3-4-8440/XZ

020627

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

Interruptor de levas, Ie: 32A a 440V AC-21

Más detalles


Interruptores

Interruptores T y P - EATON - MOELLER

Conmutadores de motor - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$61.62
4+$57.94
7+$56.84
10+$56.23
13+$55.90
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  Control switches
Part group reference
  T3
Basic function
  Multi-speed switches
Contacts
  8
Design
  rear mounting
Basic switch
Contact sequence
  >
switching function
  tapped winding
Switching angle
 °45
Front plate no.
  >
Motor rating AC-23A, 50 - 60 Hz

400 V
PkW13
Rated uninterrupted current
IuA32
Number of contact units
 contact unit(s)4
Technical data
General
Standards
  IEC/EN 60947, VDE 0660, IEC/EN 60204
Switch-disconnector according to IEC/EN 60947-3
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature

Open
 °C-25 - +50
Enclosed
 °C-25 - +40
Overvoltage category/pollution degree
  III/3
Rated impulse withstand voltage
UimpV AC6000
Mechanical shock resistance
 g15
Mounting position
  As required
Protection against direct contact when actuated from front (EN 50274)
  Finger and back-of-hand proof
Contacts
Electrical characteristics

Rated operational voltage
UeV AC690
Rated uninterrupted current
IuA32
Note on rated uninterrupted current !u
  Rated uninterrupted current Iu is specified for max. cross-section.
Load rating with intermittent operation, class 12

AB 25 % DF
 x Ie2
AB 40 % DF
 x Ie1.6
AB 60 % DF
 x Ie1.3
Short-circuit rating

Fuse
 A gG/gL35
Rated short-time withstand current (1 s current)
IcwArms650
Note on rated short-time withstand current lcw
  Current for a time of 1 second
Rated conditional short-circuit current
IqkA1
Switching capacity
cos ϕ rated making capacity as per IEC 60947-3
 A320
Rated breaking capacity cos ϕ to IEC 60947-3
 A
230 V
 A260
400/415 V
 A260
500 V
 A240
690 V
 A170
Safe isolation to EN 61140

between the contacts
 V AC440
Current heat loss per contact at Ie
 W1.1
Current heat loss per auxiliary circuit at Ie (AC-15/230 V)
 CO1.1
Lifespan, mechanical
Operationsx 106> 0.5
Maximum operating frequency
Operations/h 1200
AC

AC-3

Rating, motor load switch
PkW
220 V 230 V
PkW5.5
230 V Star-delta
PkW7.5
400 V 415 V
PkW11
400 V Star-delta
PkW15
500 V
PkW15
500 V Star-delta
PkW18.5
690 V
PkW11
690 V Star-delta
PkW22
Rated operational current motor load switch

230 V
IeA23.7
230 V star-delta
IeA32
400V 415 V
IeA23.7
400 V star-delta
IeA32
500 V
IeA23.7
500 V star-delta
IeA32
690 V
IeA14.7
690 V star-delta
IeA25.5
AC-21A

Rated operational current switch

440 V
IeA32
AC-23A

Motor rating AC-23A, 50 - 60 Hz
PkW
230 V
PkW7.5
400 V 415 V
PkW15
500 V
PkW15
690 V
PkW15
Rated operational current motor load switch

230 V
IeA32
400 V 415 V
IeA32
500 V
IeA26.4
690 V
IeA17
DC

DC-1, Load-break switches L/R = 1 ms

Rated operational current
IeA25
Voltage per contact pair in series
 V60
DC-21A
IeA
Rated operational current
IeA1
Contacts
 Quantity1
DC-23A, motor load switchL/R = 15 ms

24 V

Rated operational current
IeA25
Contacts
 Quantity1
48 V

Rated operational current
IeA25
Contacts
 Quantity2
60 V

Rated operational current
IeA25
Contacts
 Quantity3
120 V

Rated operational current
IeA12
Contacts
 Quantity3
240 V

Rated operational current
IeA5
Contacts
 Quantity5
DC-13, Control switches L/R = 50 ms

Rated operational current
IeA20
Voltage per contact pair in series
 V24
Control circuit reliability at 24 V DC, 10 mA
Fault probabilityHF< 10 -5, < 1 fault in 100000 operations
Terminal capacities
Solid or stranded
 mm21 x (1 - 6)
2 x (1 - 6)
Flexible with ferrules to DIN 46228
 mm21 x (0.75 - 4)
2 x (0.75 - 4)
Terminal screw
  M4
Max. tightening torque
 Nm1.6
Technical safety parameters:
Notes
  B10d values as per EN ISO 13849-1, table C1
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA32
Heat dissipation per pole, current-dependent
PvidW1.1
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C50
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Please enquire
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Off-load switch (EC001105)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Changeover switch ([email protected] [AKF062010])
Model
  Dahlander switch
Number of poles
  3
With 0 (off) position
  Yes
With retraction in 0-position
  No
Rated permanent current Iu
 A32
Rated operation current Ie at AC-3, 400 V
 A23.7
Rated operation power at AC-3, 400 V
 kW12
Degree of protection (IP), front side
  IP65
Number of auxiliary contacts as normally closed contact
  0
Number of auxiliary contacts as normally open contact
  0
Number of auxiliary contacts as change-over contact
  0
Suitable for ground mounting
  Yes
Suitable for front mounting 4-hole
  No
Suitable for distribution board installation
  No
Suitable for intermediate mounting
  Yes
Complete device in housing
  No
Type of control element
  -
Type of electrical connection of main circuit
  Screw connection
CAD data
>Product-specific CAD data
>3D Preview

Datasheet - PDF
