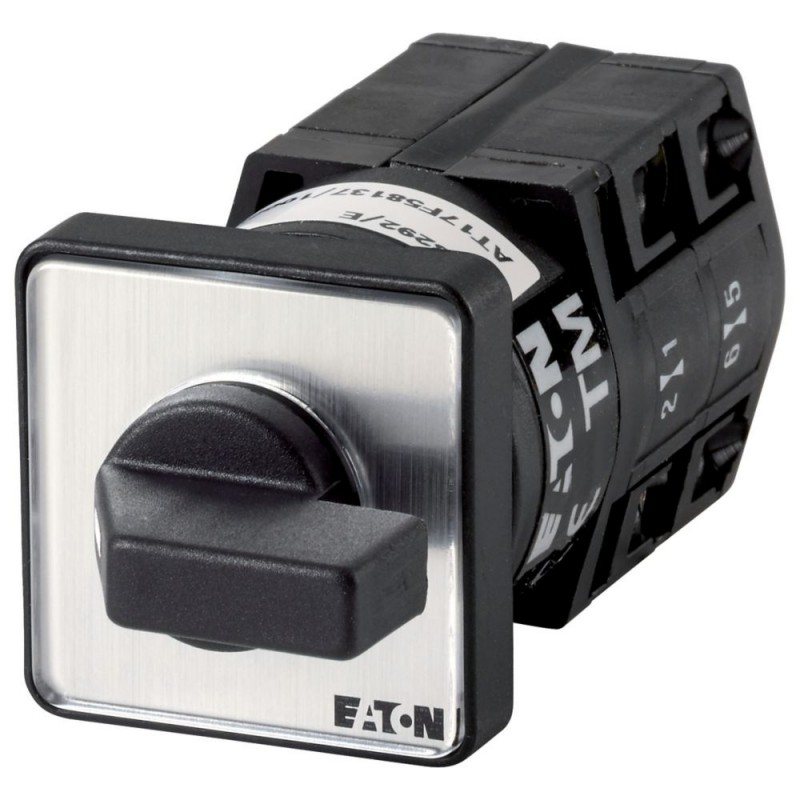

TM-2-15432/E 027418 EATON MOELLER Interruptor de levas, Iu:10 A a 440V AC-21 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

TM-2-15432/E 027418 EATON MOELLER Interruptor de levas, Iu:10 A a 440V AC-21

TM-2-15432/E

027418

EATON - MOELLER

Disponible

Envío el hoy

Interruptor de levas, Iu:10 A a 440V AC-21

Más detalles


Interruptores

Interruptores T y P - EATON - MOELLER

Interruptores-seccionadores - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$41.26
5+$38.18
10+$37.25
14+$36.87
19+$36.55
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  Control switches
Part group reference
  TM
Basic function
  Changeoverswitches

  with black thumb grip and front plate
Contacts
  4
Degree of Protection
  Front IP65
Design
  flush mounting


General
Standards
  IEC/EN 60947, VDE 0660, CSA, UL
Control switch as per IEC/EN 60947-5-1
Auxiliary switch as per IEC/EN 60947-5-1
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature

Open
 °C-25 - +50
Overvoltage category/pollution degree
  III/3
Rated impulse withstand voltage
UimpV AC4000
Mounting position
  As required
Protection against direct contact when actuated from front (EN 50274)
  Finger and back-of-hand proof
Contacts
Electrical characteristics

Rated operational voltage
UeV AC500
Rated uninterrupted current
IuA10
Note on rated uninterrupted current !u
  Rated uninterrupted current Iu is specified for max. cross-section.
Short-circuit rating

Fuse
 A gG/gL10
Switching capacity
Safe isolation to EN 61140

Current heat loss per contact at Ie
 W0.15
Current heat loss per auxiliary circuit at Ie (AC-15/230 V)
 CO0.15
Lifespan, mechanical
Operationsx 106> 1
Maximum operating frequency
Operations/h 1200
Control circuit reliability at 24 V DC, 10 mA
Fault probabilityHF< 10 -5, < 1 fault in 100000 operations
Terminal capacities
Solid or stranded
 mm21 x 1,5
2 x 1,5
Flexible
 mm21 x 1.5
2 x 1.5
Terminal screw
  M2.5
Max. tightening torque
 Nm0.35
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA10
Heat dissipation per pole, current-dependent
PvidW0.15
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C50
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Please enquire
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Control switch (EC002611)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Control switch ([email protected] [ACN998008])
Type of switch
  Reverser
Number of poles
  2
Max. rated operation voltage Ue AC
 V500
Rated permanent current Iu
 A10
Number of switch positions
  3
With 0 (off) position
  Yes
With retraction in 0-position
  No
Device construction
  Built-in device
Width in number of modular spacings
  0
Suitable for ground mounting
  No
Suitable for front mounting 4-hole
  Yes
Suitable for distribution board installation
  No
Suitable for intermediate mounting
  No
Complete device in housing
  No
Type of control element
  Toggle
Front shield size
  48x48 mm
Degree of protection (IP), front side
  IP65
Approvals
Product Standards  UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94; IEC/EN 60947-3; CE marking
UL File No.  E36332
UL Category Control No.  NLRV
CSA File No.  UL report applies to both US and Canada
CSA Class No.
North America Certification  UL listed, certified by UL for use in Canada
Degree of Protection  IEC: IP65; UL/CSA Type: –
Dimensions
IL03801025Z On-Off-switch, changeover switch, control switch

>>

Datasheet - PDF
