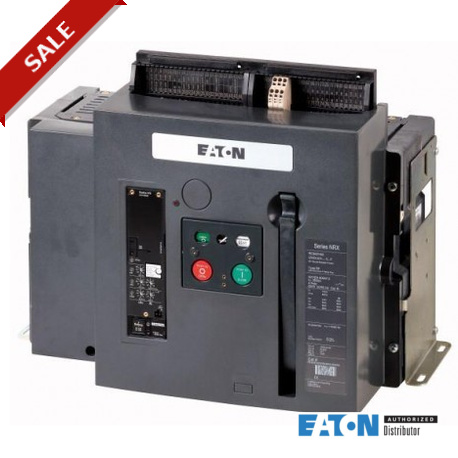

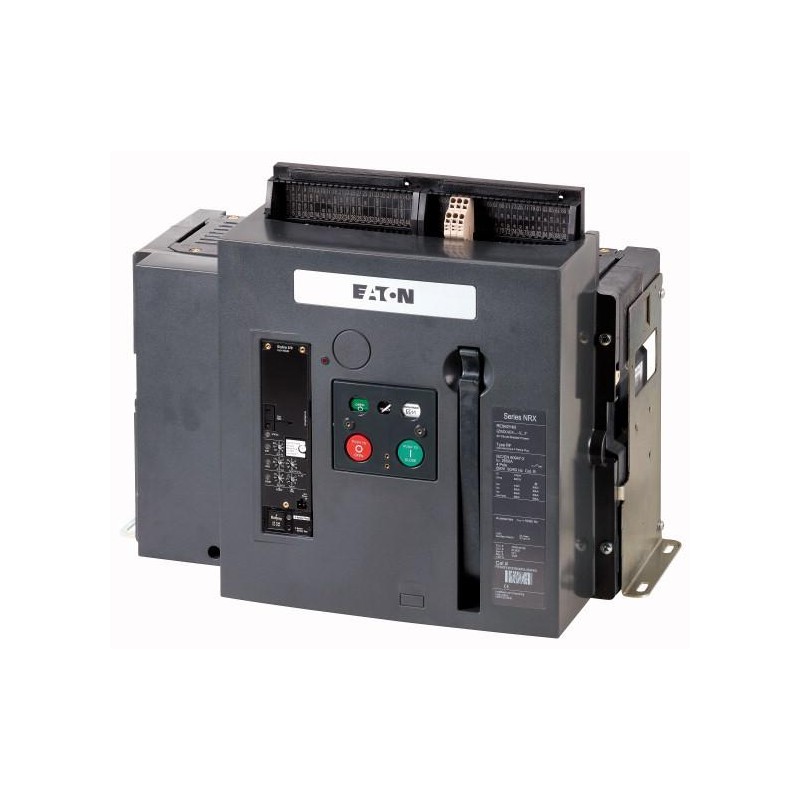

IZMX40N4-V12F 149895 EATON MOELLER RES8134B52-NMNN2MN1X Interruptor automático,4P,1250A,fijo Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

IZMX40N4-V12F 149895 EATON MOELLER RES8134B52-NMNN2MN1X Interruptor automático,4P,1250A,fijo

IZMX40N4-V12F

149895

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

RES8134B52-NMNN2MN1X Interruptor automático,4P,1250A,fijo

Más detalles


Interruptores Magnetotermicos Automatico Control Potencia Icp

Interruptores automáticos IZM - EATON - MOELLER

IZMX16 (Accesorios) - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  Air circuit-breakers/switch-disconnectors
Product range
  Open circuit-breakers
Current Range
  Up to 4000 A
Protective function
  Selective operation
Installation type
  Fixed
Construction size
  IZMX40
Release system
  Electronic release
Standard/Approval
  IEC
Number of poles
  4 pole
Degree of Protection
  IP20, IP55 with protective cover, IP41 door sealing frame

  suitable for zone selectivity
optionally fittable by user with comprehensive accessories
Rated current = rated uninterrupted current
In = IuA1250
Breaking capacity Icu = Ics to 440 V 50/60 Hz
IcukA85
Breaking capacity Ics to 440 V 50/60 Hz
IcskA85
Overload release, min.
IrA625
Overload release, max.
IrA1250
Non-delayed
General
Standards
  IEC/EN 60947
Ambient temperature

Storage
ϑ°C-40 - +70
Operating (open)
 °C-25 - +70
Mounting position

Technical data for design verification

Rated operational current for specified heat dissipation
InA1250
Equipment heat dissipation, current-dependent
PvidW60
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Power circuit-breaker for trafo/generator/installation prot. (EC000228)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Circuit breaker for power transformer, generator and system protection ([email protected] [AJZ716010])
Rated permanent current Iu
 A1250
Rated voltage
 V690 - 690
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
 kA85
Overload release current setting
 A625 - 1250
Adjustment range short-term delayed short-circuit release
 A2500 - 12500
Adjustment range undelayed short-circuit release
 A2500 - 15000
Integrated earth fault protection
  No
Type of electrical connection of main circuit
  Rail connection
Device construction
  Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
  No
DIN rail (top hat rail) mounting optional
  No
Number of auxiliary contacts as normally closed contact
  0
Number of auxiliary contacts as normally open contact
  0
Number of auxiliary contacts as change-over contact
  2
Switched-off indicator available
  Yes
With under voltage release
  No
Number of poles
  4
Position of connection for main current circuit
  Back side
Type of control element
  Push button
Complete device with protection unit
  Yes
Motor drive integrated
  No
Motor drive optional
  Yes
Degree of protection (IP)
  IP20

Datasheet - PDF
