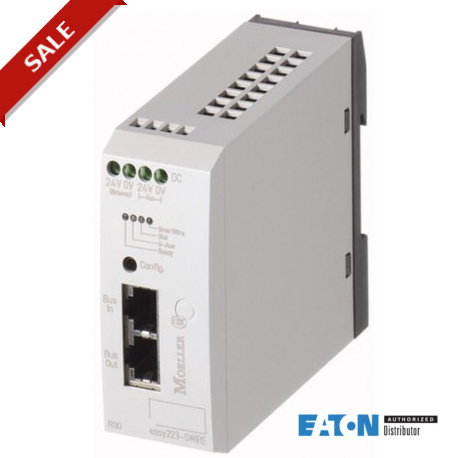

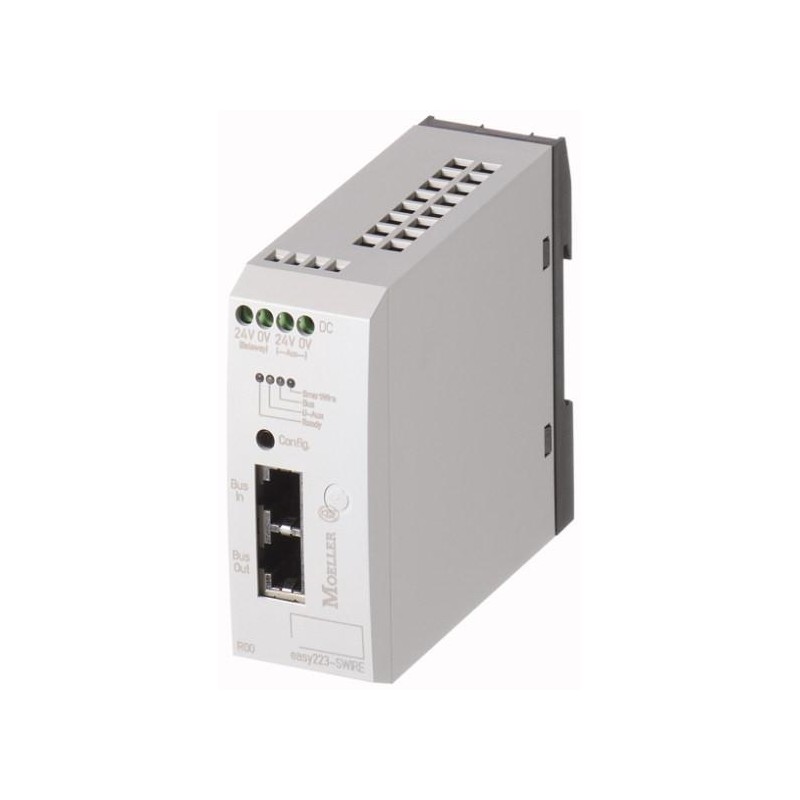

EASY223-SWIRE 106950 EATON MOELLER Gateway CANopen-easyNet/SmartWire

EASY223-SWIRE

106950

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

Gateway CANopen-easyNet/SmartWire

Más detalles


Seguridad Maquinas

Relé de seguridad programable ES4P - EATON - MOELLER

easySafety - ES4P - Ampliaciones de entrada/salida - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$185.13
2+$180.48
3+$178.17
4+$176.70
5+$176.37
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Description
  Gateway for connecting up to 16 SmartWire modules to easyNet or CANopen®
Notes

easy‐NET operating mode



CANopen® operating mode

In easy-NET mode the gateway acts as a station on easy-NET and the SmartWire master at the same time. Up to 8 stations on the easy‐NET can be intelligently connected with each other.



CANopen® mode allows communication between SmartWire modules and controllers with CANopen® interface such as EC4‐200 or XC100/200. In addition to standard fieldbus modules such as remote I/O systems or visualisation devices, this allows a number of switchgear devices can be networked directly with the PLC. Up to 126 stations can be connected to a CANopen® network, depending on the performance level of the CANopen® fieldbus master.


General
Standards
  EN 55011, EN 55022, IEC/EN 61000-4, IEC/EN 60068-2-27, EN 50325
Dimensions (W x H x D)
 mm35.5 x 90 x 58 (2 PE)
Weight
 kg0.15
Mounting
  Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Terminal capacities
Solid
 mm20.34 - 1.5 (AWG 22 - 16)
Flexible with ferrule
 mm20.34 - 1.5 (AWG 22 - 16)
Standard screwdriver
 mm3.5 x 0.8
Max. tightening torque
 Nm0.6
Climatic environmental conditions
Operating ambient temperature
 °C-25 to 55, cold as per IEC 60068-2-1, heat as per IEC 60068-2-2
Condensation
  Take appropriate measures to prevent condensation
Storage
 °C- 25 - 70
Relative humidity, non-condensing (IEC/EN 60068-2-30)
 %5 - 95
Air pressure (operation)
 hPa795 - 1080
Corrosion resistance
 cm³/m³
IEC/EN 60068-2-42
4 days SO2cm3/m310
IEC/EN 60068-2-43
4 days H2Scm3/m31
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
  IP20
Vibrations (IEC/EN 60068-2-6)
 Hz
Constant amplitude 0.15 mm
 Hz10 - 57
Constant acceleration 2 g
 Hz57 - 150
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
 Impacts18
Drop to IEC/EN 60068-2-31
Drop heightmm50
Free fall, packaged (IEC/EN 60068-2-32)
 m1
Mounting position
  Vertical (on horizontal top-hat rail)
Electromagnetic compatibility (EMC)
Overvoltage category/pollution degree
  II/2
Electrostatic discharge (IEC/EN 61000-4-2, Level 3, ESD)
 kV
Air discharge
 kV8
Contact discharge
 kV4
Electromagnetic fields (RFI) to IEC EN 61000-4-3
 V/m10
Radio interference suppression
  EN 55011 Class B, EN 55022 Class B
Burst Impulse (IEC/EN 61000-4-4, Level 3)

Supply cable
 kV2
Signal lines
 kV2
power pulses (surge) (IEC/EN 61000-4-5, level 2)
 kV0.5 (supply cables, symmetrical)
Immunity to line-conducted interference to (IEC/EN 61000-4-6)
 V10
Insulation resistance
Clearance in air and creepage distances
  EN 50178, UL 508, CSA C22.2, No. 142
Insulation resistance
  EN 50178
Power supply
Rated operational voltage
UeV24 (-15/+20 %)
Admissible range
 V DC20.4 - 28.8
Residual ripple
 %< 5
at 24 V DC
 mANormally 200
Voltage dips
 ms≤ 10
Heat dissipation at 24 V DC
 W2
Protection against polarity reversal
AS-I power supply
  Yes
PROFIBUS DP
Potential isolation
  Yes, for UAUX, UGATEWAY, SmartWire
Baud rates
  1000 (6 m) … 10 kBit/s (1000 m) easyNet: adjustable via easyNet configuration (station 1) or terminal mode with CANopen®: automatic
Bus terminating resistors
  External, first and last station
Bus addresses
  easyNet: 2 … 8, adjustable via easyNet configutarion (station 1) or terminal mode CANopen®: 1 … 126, adjustable via DIP switches
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW2
Heat dissipation capacity
PdissW0
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Meets the product standard's requirements.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Dimensions
IL05013003Z (AWA2528+1251-2355) Connection system SmartWire: Gateway easyNet/CANopen

>
>
>
>
>
>>
