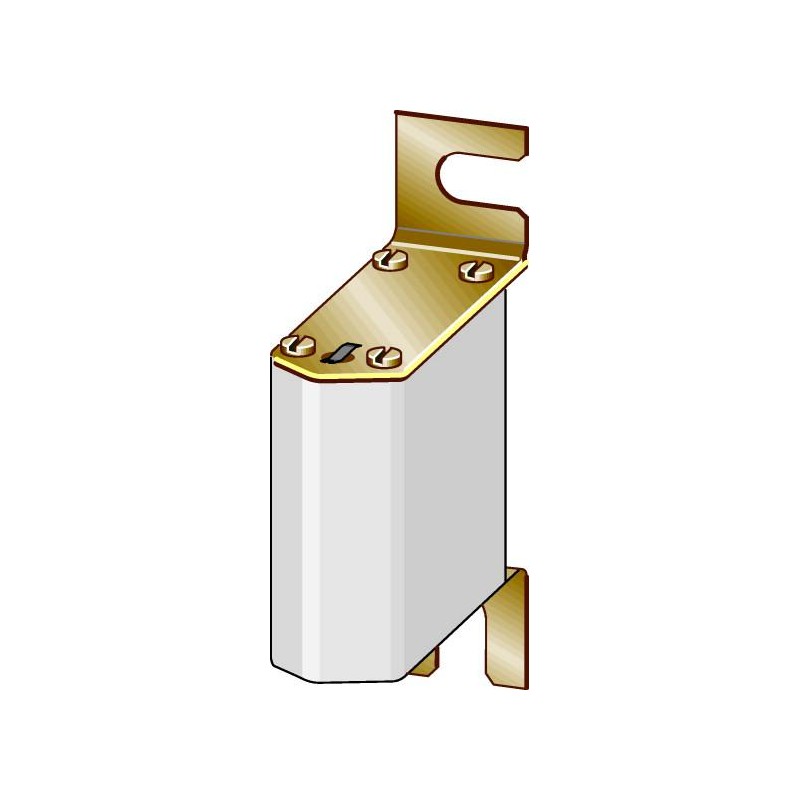

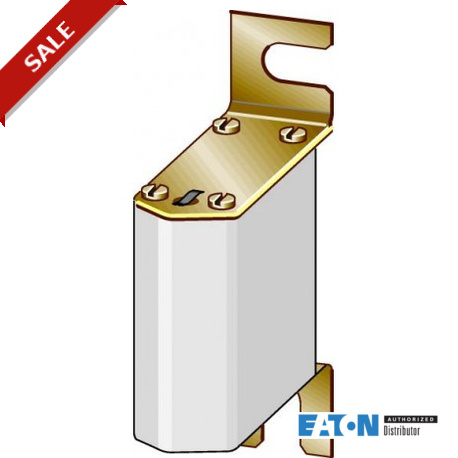

20.282.20-32 138285 EATON ELECTRIC Fusibles DM4
20.282.20-32
138285
EATON-MOELLER
Fusibles DM4
Arrancadores Suaves Estándar
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más Información
▲Delivery programme
Product range | Accessories | ||
Accessories | Fuses | ||
Rated device current | A | 32 | |
Maximum power loss | Pv | W | 9 |
Inside micrometer | mm | 80 | |
For use with | DS7-34…SX009N0-… DS7-34…SX012N0-… | ||
For use with | Soft starters |
Design verification as per IEC/EN 61439(Show features)(Hide features)
IEC/EN 61439 design verification | |||
10.2 Strength of materials and parts | |||
10.2.2 Corrosion resistance | Meets the product standard's requirements. | ||
10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. | ||
10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. | ||
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects | Meets the product standard's requirements. | ||
10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. | ||
10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.7 Inscriptions | Meets the product standard's requirements. | ||
10.3 Degree of protection of ASSEMBLIES | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.4 Clearances and creepage distances | Meets the product standard's requirements. | ||
10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. | ||
10.8 Connections for external conductors | Is the panel builder's responsibility. | ||
10.9 Insulation properties | |||
10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. | ||
10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. | ||
10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. | ||
10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. | ||
10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. | ||
10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. | ||
10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
Technical data ETIM 6.0(Show features)(Hide features)
| Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055) | |||
| Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800012]) | |||
Construction size | - | ||
Nominal rated current | A | 32 | |
Nominal rated voltage | V | 690 | |
Utilization category | aR (accompanied semiconductor protection) | ||
Type of fuse status indicator | Top fuse status indicator | ||
Approvals
| Product Standards | UL 248-13 CE marking | ||
| UL File No. | E180276 | ||
| UL Category Control No. | JFHR2 | ||
| CSA File No. | UL report applies to both US and Canada | ||
| CSA Class No. | JFHR8 | ||
| North America Certification | UL recognized, certified by UL for use in Canada | ||
| Specially designed for North America | No | ||
| Max. Voltage Rating | 660V |
Datasheet - PDF
