Product range | Accessories | ||
Accessories | Main terminal kits | ||
Accessories | Horizontal and vertical connections | ||

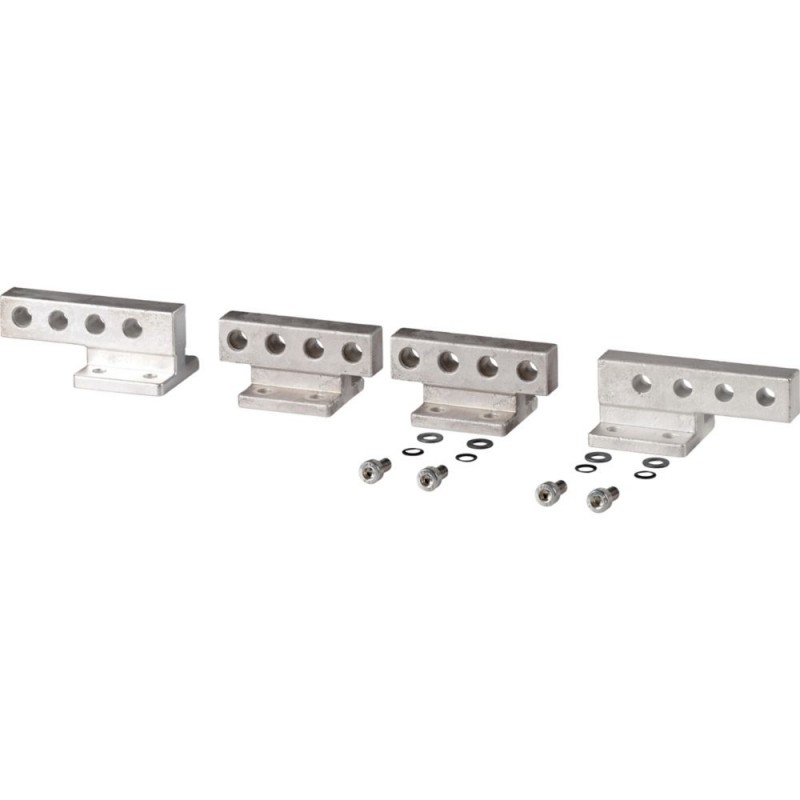

Cu bars can be connected directly to the circuit-breaker's flanged connections. This connector kit includes T-shaped adapters for all main terminals. These adapters can be mounted horizontally or vertically on circuit-breakers with ratings of up to 3,200 A. | |||
Rated current | In | A | 800 - 3200 |
Pole | 4 | ||
For use with | IZMX40…4…08… IZMX40…4…10… IZMX40…4…12… IZMX40…4…16… IZMX40…4…20… IZMX40…4…25… IZMX40…4…32… INX40…4…08… INX40…4…10… INX40…4…12… INX40…4…16… INX40…4…20… INX40…4…25… INX40…4…32… | ||
Information about equipment supplied | Main terminals are not supplied as standard with the basic devices and cassettes. Each set includes the connections for top and bottom. 3-pole= 6 connections; 4-pole= 8 connections, including accessories for mounting on the flanged circuit-breaker connection. |
