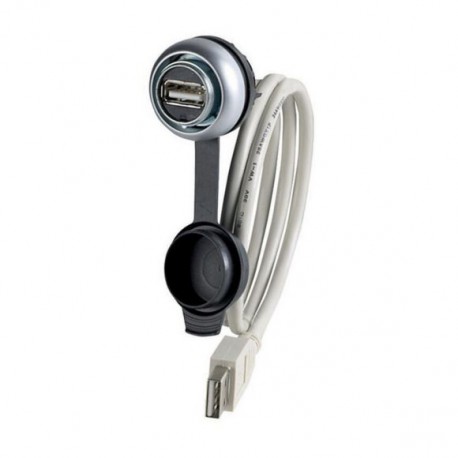

M22-USB-SA 107412 EATON MOELLER M22-USB-SAQ Conector USB 2.0 A/A con cable de conexión Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

M22-USB-SA 107412 EATON MOELLER M22-USB-SAQ Conector USB 2.0 A/A con cable de conexión

M22-USB-SA

107412

EATON - MOELLER

Disponible

Envío el hoy

M22-USB-SAQ Conector USB 2.0 A/A con cable de conexión

Más detalles


Señalizacion Industrial Timbres Zumbadores Sirenas Pilotos Balizas

Auxiliares de mando y señalización RMQ-Titan - EATON - MOELLER

Indicadores acústicos, potenciómetros y USB/RJ45 - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$55.62
3+$52.94
6+$51.65
9+$51.01
12+$50.68
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  RMQ-Titan (drilling dimensions 22.5 mm)
Accessories
  General accessories
Basic function
  Accessories
Basic function accessories
  Bulkhead interface, USB socket
Single unit/Complete unit
  Single unit
Degree of Protection
  IP65 (with closed cover)
IP20 (with plug connected)
For use with
  Front mounting
Type A socket with prefabricated cable (60 cm) with permanently connected USB 3.0, Type A plug
Front ring
  Bezel: titanium
Connection to SmartWire-DT
  no
Terminal diagram / contact assignment

Technical data
Nominal voltage
UL AC/DC 5V
Voltage range
  Max. 30 V
Rated current
 mA900
Pole
  9
Baud rate
 kBdMax. 5 Gbit/s
Class / category
  3.0
Contact type art
  1 : 1
Screen earth kit
  yes
General
Design
  USB 3.0 A
Insulation resistance
RISOMΩ>
Technical data for design verification

Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-20
Operating ambient temperature max.
 °C70
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Please enquire
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Accessories for control circuit devices (EC002024)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Low-voltage switch technology (accessories) / Control circuit devices (accessories) ([email protected] [ACO043008])
Type of electrical accessory
  -
Type of mechanical accessory
  -
Approvals
Product Standards  UL 508; CSA-C22.2 No. 142; IEC/EN 6113-2; CE marking
UL File No.  E330994
UL Category Control No.  DUXR, DUXR7
CSA File No.  UL report applies to both US and Canada
CSA Class No.  -
North America Certification  UL listed, certified by UL for use in Canada
Degree of Protection  IEC: IP65 and UL/CSA NEMA Type 12 when closed, IP20 when connected
Characteristics
IL04716002Z (AWA1160-1745) RMQ-Titan System

>>

Datasheet - PDF
