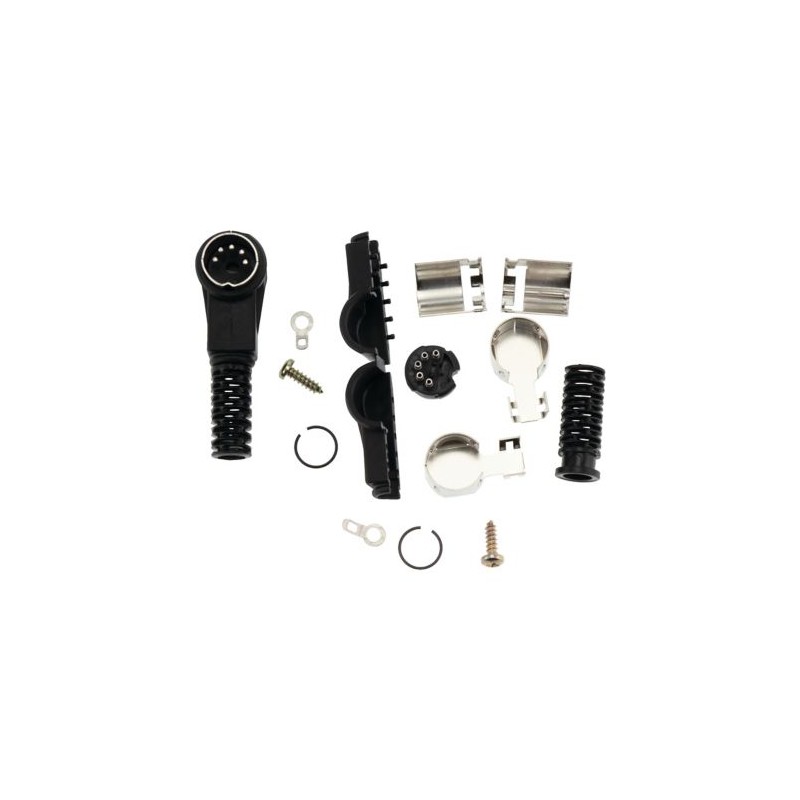

S1-PS3 095132 EATON MOELLER Conector DIN 5 Pins SuconetK Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

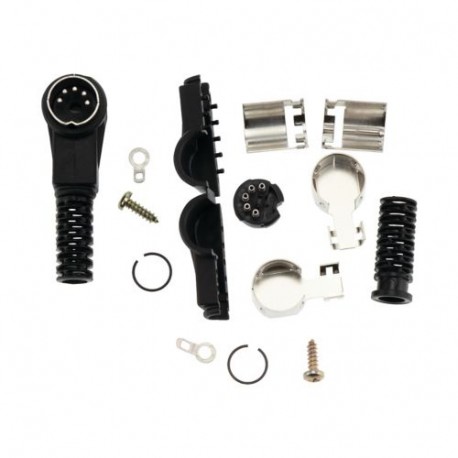

S1-PS3 095132 EATON MOELLER Conector DIN 5 Pins SuconetK

S1-PS3

095132

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

Conector DIN 5 Pins SuconetK

Más detalles


* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

Descuentos adicionales para clientes registrados. * Este articulo está obsoleto. Por favor, solicítenos presupuesto para que comprobemos si existen unidades disponibles o le ofrezcamos una alternativa de producto.

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Description
  For automation devices with a Suconet K/K1 connection
● 5 pole pin connnector, angled version
For use with
  PS4-…
EM4-…
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C0
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Meets the product standard's requirements.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
PLC's (EG000024) / Accessories for controls (EC002584)
Electric engineering, automation, process control engineering / Control / Control (accessories) / Control (accessories, unspecified) ([email protected] [AKN560011])
Type of electrical accessory
  Plug
Type of mechanical accessory
  -
Type of documentation
  -

Datasheet - PDF

Title:Language:Size:Type:
pdf-EATON - S1-PS3 - 95132English149 Kbytespdf-EATON - S1-PS3 - 95132
