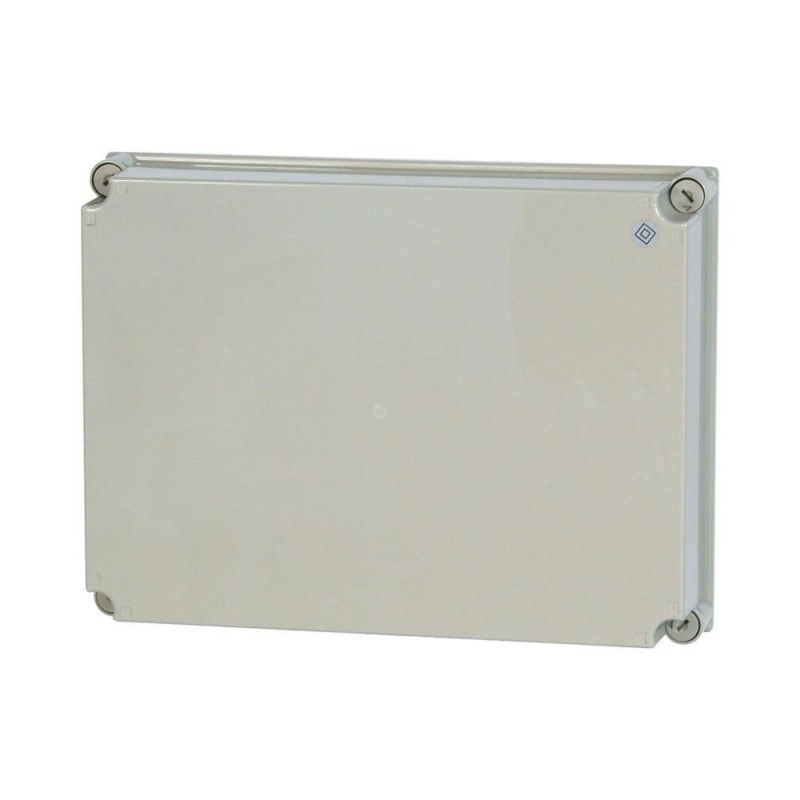

D200-CI45-RAL7032 098476 EATON MOELLER Carátula ciega Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

D200-CI45-RAL7032 098476 EATON MOELLER Carátula ciega

D200-CI45-RAL7032

098476

EATON - MOELLER

Disponible

Envío el hoy

Carátula ciega

Más detalles


Cajas Distribucion Armarios Electricos Envolventes

Envolventes - EATON - MOELLER

Cajas aislantes CI-K - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$88.81
2+$86.22
4+$84.11
6+$83.07
8+$82.49
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme


Technical data for design verification

Heat dissipation, at an ambient temperature of 35°C, delta T: 20 degrees, calculated as per IEC 60890

Individual enclosure for wall mounting
PVCO26
Starting enclosure for wall mounting
PVCO25
Middle enclosure for wall mounting
PVCO24
Heat dissipation, at an ambient temperature of 35°C, delta T: 35 degrees, calculated as per IEC 60890

Individual enclosure for wall mounting
PVCO52
Starting enclosure for wall mounting
PVCO50
Middle enclosure for wall mounting
PVCO47
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  850 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Not relevant to indoor installations.
10.2.5 Lifting
  30 kg per enclosure with support frame and lifting aid met; assembled and secured as per the latest applicable instruction leaflet.
10.2.6 Mechanical impact
  IK10
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  IP65, with base unit
10.4 Clearances and creepage distances
  Is the panel builder's responsibility.
10.5 Protection against electric shock
  Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
  Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Ui = 1000 V AC
10.9.3 Impulse withstand voltage
  8 kV
10.9.4 Testing of enclosures made of insulating material
  Meets the product standard's requirements.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  Meets the product standard's requirements.

Datasheet - PDF
