> >>AE/I43E/T 002612 TBA3.1 ELECTRIC MCB enclosure, +door, 3x9space units, HxWxD 375x250x150mm
Anterior producto Siguiente producto

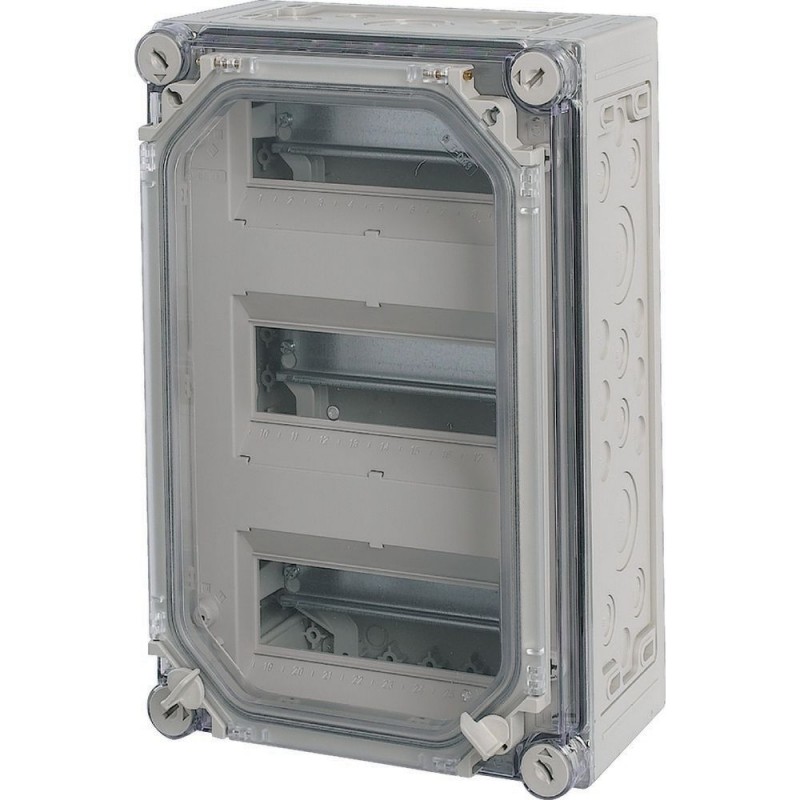

AE/I43E/T 002612 TBA3.1 EATON ELECTRIC MCB enclosure, +door, 3x9space units, HxWxD 375x250x150mm Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

AE/I43E/T 002612 TBA3.1 EATON ELECTRIC MCB enclosure, +door, 3x9space units, HxWxD 375x250x150mm

AE/I43E/T

002612

TBA3.1

EATON-MOELLER

MCB enclosure, +door, 3x9space units, HxWxD=375x250x150mm

Eaton xEnergy Safety Ci LV systems LV switchgear. MCB enclosure, +door, 3x9space units, HxWxD=375x250x150mm

Más detalles


Sistemas de distribución eléctrica (incluidos cuadros de control) > Pequeños distribuidores de instalación

Cajas aislantes

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $444.94
Precio unitario: $444.94

*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más Información

▲


Especificaciones generales

Product Name
Eaton xEnergy Safety Ci MCB enclosure
Catalog Number
002612
EAN
4015080026129
Product Length/Depth
150 mm
Product Height
250 mm
Product Width
375 mm
Product Weight
3.233 kg
Compliances
RoHS conform
Certifications
EN 61439-2
EN 62208
Model Code
AE/I43E/T

Product specifications

Special features
Metric cable entry knockouts in all sidesHousings for e.g. built-in devices MCB, RCD, RCBO, AFDDTransparent door for operator access to devices fittedMetal mounting rail for snapping on devices1 x Blanking strip for unused mounting locationsProtective shroud with inscription labelPE/N combi-plug-in terminalsFixing straps for wall fixingSealable cover fasteners
Type
MCB individual enclosuresPrepared enclosurexEnergy Safety Ci
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Lower part: 960 °C / cover: 850 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
10 kg per enclosure with support frame and lifting aid met; assembled and secured as per the latest applicable instruction leaflet.
10.2.6 Mechanical impact
IK10
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP65
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 1000 V AC
10.9.3 Impulse withstand voltage
8 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
Used with
Prepared enclosure
xEnergy Safety Ci
MCB individual enclosures
Enclosure material
Plastic
Accessory/spare part type
MCB individual enclosures
Built-in height
0 mm
Built-in width
0 mm
Unit type
Stand-alone device
Built-in depth
100 mm
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
19 W
Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
16 W
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
17 W
Closure type
Other
Cover/door color
Transparent
Cover/door model
Closed
Cover/door type
Transparent
Door
Single
RAL-number
7035
Width in number of modular spacings
9
Color
Gray
Number of rows
3
Number of module space units (total)
27
Degree of protection
IP65
Number and capacity of terminal (PE and N)
On each 3 x (2.5 - 25 mm²)
On each 21 x (0.5 - 4 mm²)
Functions
Prepared enclosure
Mounting method
DIN-rail
Surface mounted (plaster)
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
38 W
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
32 W
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
35 W
Internal depth
150 mm

Datasheet - PDF

▲
Título: Tamaño: Tipo:
AE/I43E/T TBA3.1 002612 ES_000239.pdf 2 Mbytes AE/I43E/T TBA3.1 002612 ES_000239.pdf
