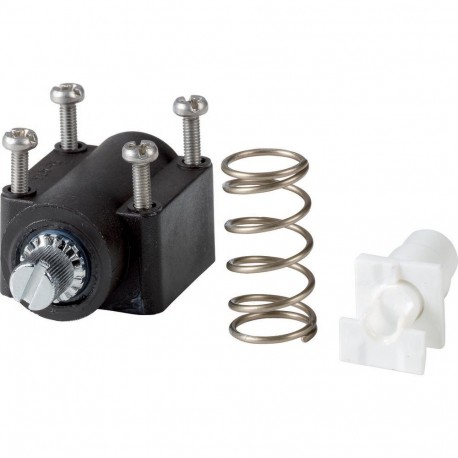

R-AT4 095687 EATON MOELLER Cabeza de Acoplamiento de Giro

R-AT4

095687

EATON - MOELLER

Disponible

Envío el hoy

Cabeza de Acoplamiento de Giro

Más detalles


* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Basic function
  Components
Part group reference
  AT4
Product range
  Rotary drive head
Description
  For completing insulated enclosure I-AT4
In conjunction with H… actuators
directional dependant contacting
Max. operating speed lateral
  3
1.5
Angle of actuation
 Degrees15
50
For use with
  I-AT4
IA-AT4
Notes The operating head can be rotated at 90° intervals to adapt to the specified approach direction.
Technical data
General
Standards
  IEC/EN 60947
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78; damp heat, cyclical, to IEC 60068-2-30
Mounting position
  As required
Terminal capacities
 mm2
Solid
 mm21 x (0.75 - 2.5)
2 x (0.75 - 1.5)
Flexible with ferrule
 mm21 x (0.5 - 1.5)
2 x (0.5 - 1.5)
Contacts/switching capacity
Rated impulse withstand voltage
UimpV AC6000
Rated insulation voltage
UiV500
Overvoltage category/pollution degree
  III/3
Rated operational current
IeA
AC-15

24 V
IeA10
220 V 230 V 240 V
IeA6
380 V 400 V 415 V
IeA4
DC-13

24 V
IeA3
110 V
IeA0.8
220 V
IeA0.4
Supply frequency
 Hzmax. 400
Short-circuit rating to IEC/EN 60947-5-1

max. fuse
 A gG/gL6
Repetition accuracy
 mm0.02
Mechanical variables
Contact temperature of roller head
 °C
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Please enquire
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  Not applicable.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Sensors (EG000026) / Drive head for position switches/hinge switches (EC001483)
Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Position switch / Drive head for position switches ([email protected] [BAA083009])
Type of control element
  Rotating axis
