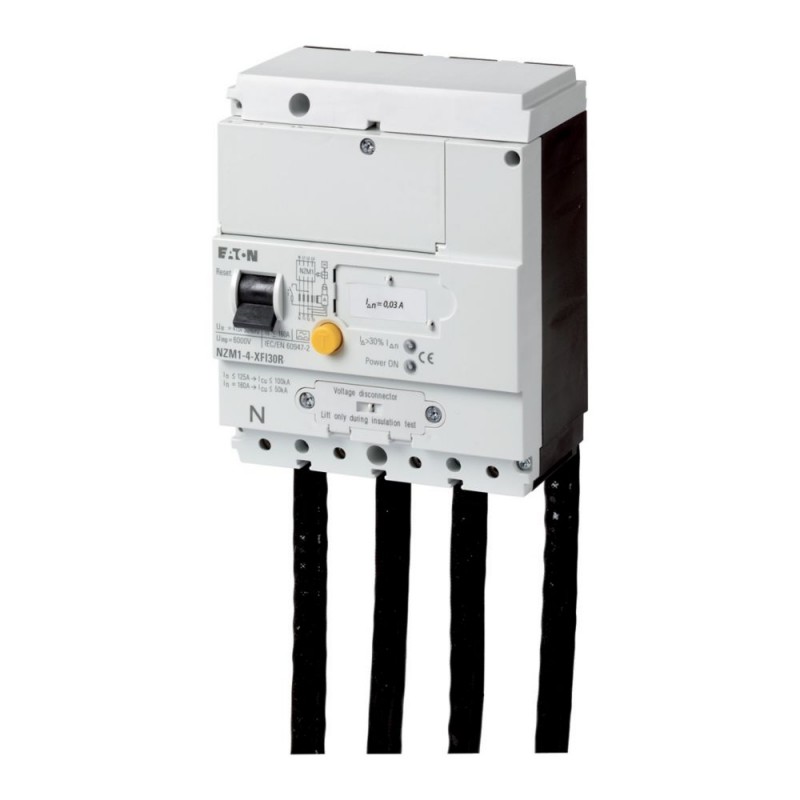

NZM1-4-XFI30R 104606 EATON MOELLER Bloque de protección diferencial Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

NZM1-4-XFI30R 104606 EATON MOELLER Bloque de protección diferencial

NZM1-4-XFI30R

104606

EATON - MOELLER

Disponible

Envío el hoy

Bloque de protección diferencial

Más detalles


Interruptores Magnetotermicos Automatico Control Potencia Icp

Interruptores automáticos NZM - EATON - MOELLER

Protección de instalaciones, hasta 300A - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$456.29
2+$455.03
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Description
  Earth-fault release to IEC/EN 60947-2
not UL/CSA approved
Suitable for use in three- and single-phase systems
Pulse-current sensitive according to core-balance principle
For 4 pole NZM1-4 circuit-breakers and N1-4 switch-disconnectors
Supply voltage-dependent Ue = 200 – 415 V 50/60 Hz
Contact sequence

Electrical
Standards
  IEC/EN 60947-2
IEC/EN 60947-2 annex B
Sensitivity
  Pulse-current sensitive as per core-balance principle (type A)
Min. operating voltage
UeV
or detection of fault currents type A/AC
  80 V (dependent on mains voltage)
Suitability for the application
  In three- and single-phase systems
Rated operational voltage
UeV AC200…415 (3~)
Rated frequency
fHz50/60
Number of poles
  4-pole
Rated current range
InA15…160
Rated fault currents
IΔnA0.03
Detection range of the fault current
  50/60 Hz
Rated ultimate short-circuit making capacity and rated ultimate short-circuit breaking capacity
IΔmA= ICU
Mechanical shock resistance (IEC 60068-2-27)
  20 (half-sinusoidal shock 20 ms)
Lifespan, mechanical (50 % with fault current)
Operations 20000
Mechanical
Standard front dimension
 mm45
Mounting
  on the right side
Mounting position
  Vertical and 90° in all directions
Supply


  NZM1 from above
Degree of protection
  IP20 in the operating component area
Ambient temperature
  -5 - +40
Terminal capacity

Flexible without ferrule
 mm2wie NZM1 Standardklemme
flexible with ferrules
 mm2such as NZM1 standard terminal
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Operating ambient temperature min.
 °C-5
Operating ambient temperature max.
 °C40
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Residual current release for power circuit breaker (EC001021)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Fault current switch for circuit breakers ([email protected] [AKF009010])
Rated control supply voltage Us at AC 50HZ
 V200 - 415
Rated control supply voltage Us at AC 60HZ
 V200 - 415
Rated control supply voltage Us at DC
 V0 - 0
Rated fault current
 A0.03 - 0.03
Max. power on-delay time
 ms30
Delay adjustable
  No
Max. rated operation voltage Ue
 V415
Dimensions
IL01219028Z (AWA1230-2331) NZM1 Residual-current Module, mount right

>>
