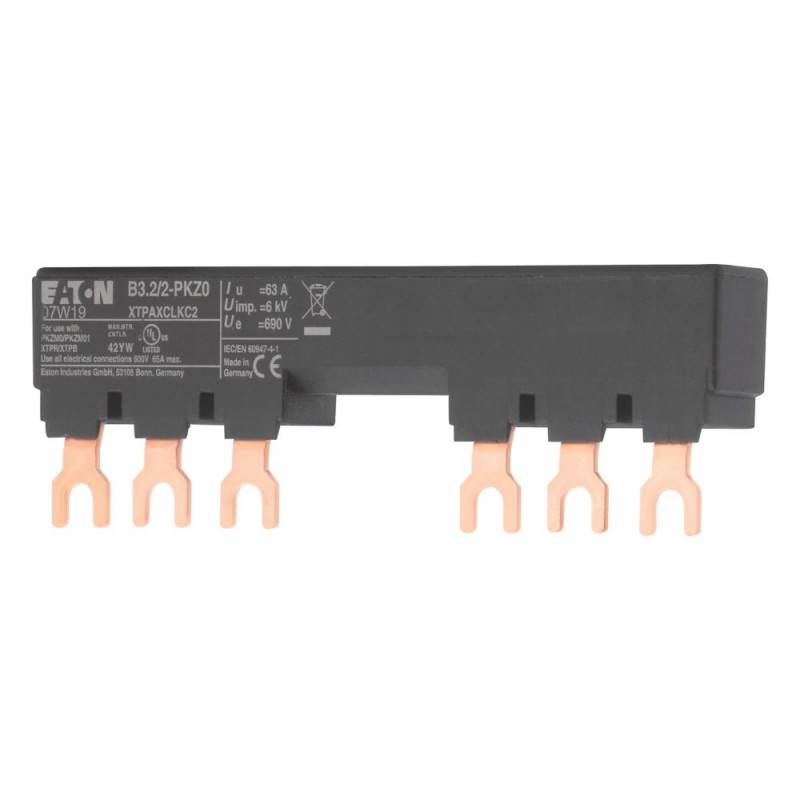

B3.2/2-PKZ0 063963 EATON MOELLER XTPAXCLKC2 Bloque de Embarrado Trifásico Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

B3.2/2-PKZ0 063963 EATON MOELLER XTPAXCLKC2 Bloque de Embarrado Trifásico

B3.2/2-PKZ0

063963

EATON - MOELLER

Disponible

Envío el hoy

XTPAXCLKC2 Bloque de Embarrado Trifásico

Más detalles


Interruptores Protectores Motor Guardamotores

Interruptores protectores de motor PKZ - EATON - MOELLER

Interruptor protector motor PKZ (Accesorios) - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$7.24
18+$6.14
35+$5.99
52+$5.92
69+$5.87
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme


Main conducting paths
Rated impulse withstand voltage
UimpV AC6000
Overvoltage category/pollution degree
  III/3
Rated operational voltage
UeV AC690
Rated uninterrupted current
IuA63
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA63
Heat dissipation per pole, current-dependent
PvidW1.2
Equipment heat dissipation, current-dependent
PvidW3.6
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C55
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Phase busbar (EC000215)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Phase busbar ([email protected] [ACN992008])
Number of phases
  3
Number of poles
  3
Suitable for number of devices
  2
Pitch dimensions
 mm63
Cross section
 mm²0
Length
 mm108
Number of modular spacings
  0
Rated permanent current Iu
 A63
Type of electric connection
  Fork
Insulated
  Yes
Rated surge voltage
 kV6
Conditioned rated short-circuit current Iq
 kA0
Max. rated operation voltage Ue
 V690
Rated short-time withstand current lcw
 kA0
Suitable for devices with N-busbar
  No
Suitable for devices with auxiliary switch
  No
Approvals
Product Standards  UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking
UL File No.  E36332
UL Category Control No.  NLRV
CSA File No.  98494
CSA Class No.  3211-06
North America Certification  UL listed, CSA certified
Specially designed for North America  No
Dimensions
>>

Datasheet - PDF
