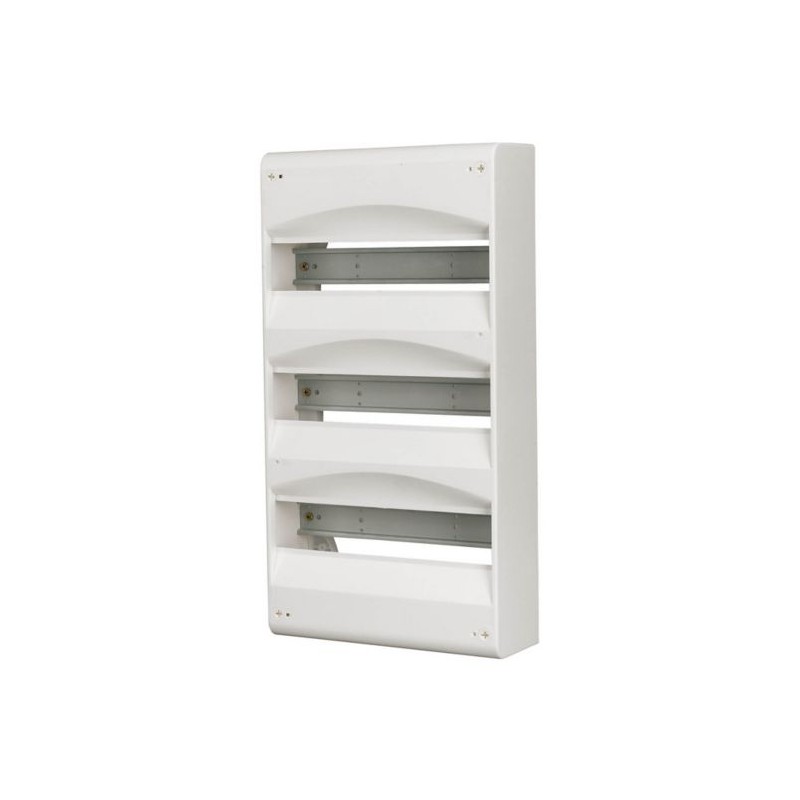

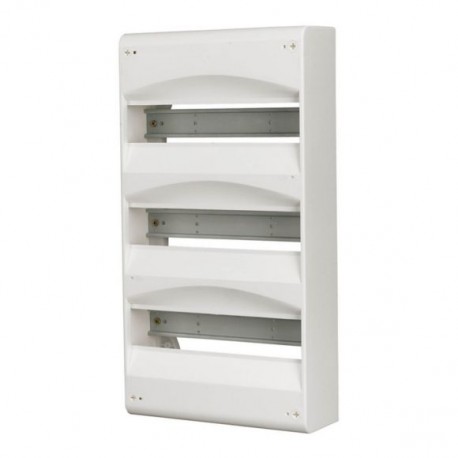

BC-A-3/39-A 101556 EATON MOELLER Cover distribution board, 3-rows, without back plate Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

BC-A-3/39-A 101556 EATON MOELLER Cover distribution board, 3-rows, without back plate

BC-A-3/39-A

101556

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

Cover distribution board, 3-rows, without back plate

Más detalles


Cajas Distribucion Armarios Electricos Envolventes

Cajas y pequeños armarios de distribución - EATON - MOELLER

Cajas de superficie BC-A - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$49.13
4+$46.09
8+$44.98
11+$44.54
15+$44.20
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Heat dissipation, at an ambient temperature of 35°C, delta T: 20 degrees, calculated as per IEC 60890

Individual enclosure for wall mounting
PVCO18
Heat dissipation, at an ambient temperature of 35°C, delta T: 35 degrees, calculated as per IEC 60890

Individual enclosure for wall mounting
PVCO36
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  650 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Not relevant to indoor installations.
10.2.5 Lifting
  Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
  IK07
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  IP30
10.4 Clearances and creepage distances
  Is the panel builder's responsibility.
10.5 Protection against electric shock
  Does not apply to plastic enclosures.
10.6 Incorporation of switching devices and components
  Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Ui = 440 V AC
10.9.3 Impulse withstand voltage
  4 kV
10.9.4 Testing of enclosures made of insulating material
  Meets the product standard's requirements.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  Meets the product standard's requirements.
Technical data ETIM 6.0
Distribution boards (EG000023) / Small distribution board (EC000214)
Electric engineering, automation, process control engineering / Electrical installation, device / Electrical distribution system (incl. small distribution board) / Small distribution board ([email protected] [ACN387008])
Mounting method
  Surface mounting
Number of rows
  3
Width in number of modular spacings
  13
Type of cover
  Optional
Cover model
  With notch
Transparent cover/door
  No
Material housing
  Plastic
Height
 mm475
Width
 mm250
Depth
 mm94
Built-in depth
 mm46
Internal depth
 mm72
DIN-rail
  Yes
With mounting plate
  No
Extension possible
  No
EMC-version
  No
Colour
  White
RAL-number
  9010
Degree of protection (IP)
  IP30
With lock
  No

Datasheet - PDF
