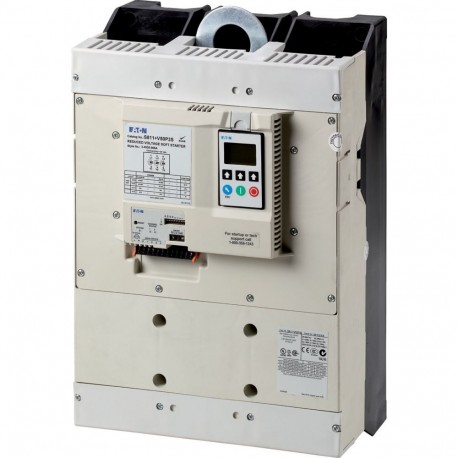

S811+V42P3S 168997 EATON MOELLER S811PLUSV42P3S Arrancador suave Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

S811+V42P3S 168997 EATON MOELLER S811PLUSV42P3S Arrancador suave

S811+V42P3S

168997

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

S811PLUSV42P3S Arrancador suave

Más detalles


Arrancadores Suaves Motor

Arrancadores suaves - EATON - MOELLER

Arrancadores suaves S8 - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Description
  With internal bypass contacts
Function
  Soft starter for three-phase loads, with control unit and pump algorithm
Mains supply voltage (50/60 Hz)
ULNV AC200 - 600
Supply voltage
Us 24 V DC
Control voltage
UC 24 V DC
Assigned motor rating (Standard connection, In-Line)

at 400 V, 50 Hz
PkW200
at 460 V, 60 Hz
PHP350
Rated operational current

AC-53
IeA420
AC-53, In-Delta
IeA727
Startup class
  CLASS 10 (star-delta replacement)
CLASS 20 (heavy starting duty 3 x Ie for 45 s)
CLASS 30 (6 x Ie for 30 s)
Rated operational voltage
Ue 200 V
230 V
400 V
480 V
600 V
Connection to SmartWire-DT
  no
Frame size
  V
Ordering information
  Terminal blocks for the terminals are required for frame sizes T, U, and V -> Accessories
Technical data
General
Standards
  IEC/EN 60947-4-2
UL 508
CSA22.2-14-1995
GB14048
Approvals
  CE
Approvals
  UL
CSA
C-Tick
CCC
Climatic proofing
  Damp heat, constant, to IEC 60068-2-3
Damp heat, cyclic, to IEC 60068-2-10
Ambient temperature

Operation
ϑ°C-30 - +50
Storage
ϑ°C-50 - +70
Altitude
 m0 - 2000 m, above that each 100 m 0.5% Derating
Mounting position
  As required
Degree of protection

Degree of Protection
  IP20 (terminals IP00)
Integrated
  Protection type IP40 can be achieved on all sides with covers SS-IP20-N.
Protection against direct contact
  Finger- and back-of-hand proof
Overvoltage category/pollution degree
  II/3
Shock resistance
  15 g
Radio interference level (IEC/EN 55011)
  A
Static heat dissipation, non-current-dependent
PvsW25
Weight
 kg41.4
Main conducting paths
Rated operating voltage
UeV AC200 - 600
Supply frequency
fLNHz50/60
Rated operational current
IeA
AC-53, In-Delta
IeA727
AC-53
IeA420
Assigned motor rating (Standard connection, In-Line)

at 230 V, 50 Hz
PkW132
at 400 V, 50 Hz
PkW200
at 500 V, 50 Hz
PkW250
at 200 V, 60 Hz
PHP150
at 230 V, 60 Hz
PHP150
at 460 V, 60 Hz
PHP350
at 600 V, 60 Hz
PHP450
Assigned motor rating (delta connection)

at 230 V, 50 Hz
PkW200
at 400 V, 50 Hz
PkW400
at 500 V, 50 Hz
PkW450
at 230 V, 60 Hz
 HP300
at 480 V, 60 Hz
 HP600
at 600 V, 60 Hz
PHP750
Overload cycle to IEC/EN 60947-4-2

AC-53a
  420 A: AC-53a: 4.0 - 32: 99 - 3
Internal bypass contacts

Technical data for design verification

Rated operational current for specified heat dissipation
InA420
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW25
Static heat dissipation, non-current-dependent
PvsW25
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-30
Operating ambient temperature max.
 °C50
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Soft starter (EC000640)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Load breakout, motor breakout / Semiconductor motor controller or soft starter ([email protected] [ACO300008])
Rated operation current Ie at 40 °C Tu
 A420
Rated operating voltage Ue
 V200 - 600
Rated power three-phase motor, inline, at 230 V
 kW132
Rated power three-phase motor, inline, at 400 V
 kW200
Rated power three-phase motor, inside delta, at 230 V
 kW200
Rated power three-phase motor, inside delta, at 400 V
 kW400
Internal bypass
  Yes
With display
  Yes
Torque control
  No
Rated surrounding temperature without derating
 °C50
Rated control supply voltage Us at AC 50HZ
 V0 - 0
Rated control supply voltage Us at AC 60HZ
 V0 - 0
Rated control supply voltage Us at DC
 V24 - 24
Voltage type for actuating
  DC
Integrated motor overload protection
  Yes
Approvals
Product Standards  IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14; CE marking
UL File No.  E202571
UL Category Control No.  NMFT
CSA File No.  LR 353
CSA Class No.  3211-06
North America Certification  UL listed, CSA certified
Suitable for  Branch Circuits, not as BCPD
Max. Voltage Rating  600 Vac
Degree of Protection  IP20 with kit
Dimensions
>
