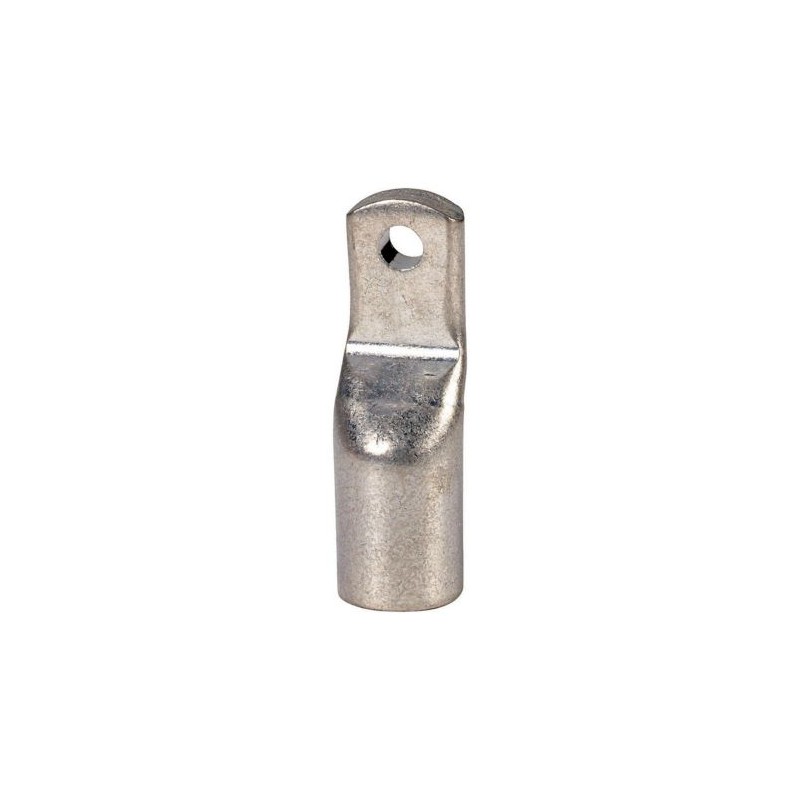

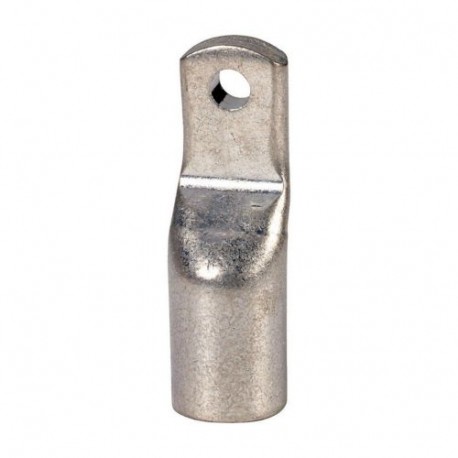

NZM3-XKS300 153186 EATON MOELLER Accesorio NZM

NZM3-XKS300

153186

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

Accesorio NZM

Más detalles


Interruptores Magnetotermicos Automatico Control Potencia Icp

Interruptores NZM y LZM (Accesorios) - EATON - MOELLER

Técnica de conexión y tapas cubrebornes - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$38.60
4+$36.19
8+$35.32
11+$34.97
15+$34.68
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Number of conductors
  3/4 pole
Accessories
  Cable lugs
For use with
  NZM3(-4), PN3(-4), N3(-4)
NZM4(-4), N(-4)
Description
  Not UL/CSA approved.
Narrow tubular cable lugs for switchgear connections.
When using without cover NZM3(-4)-XKSA, the cable lug must be insulated.
Terminal capacity
 mm2300
Instructions For detailed specifications regarding suitable types of conductors and the required crimping tool: See Heading Engineering.
Technical data
Engineering
Engineering notes


In order to crimp cable lugs when using stranded conductors, e.g., VDE 0295 Class 2 and rounded stranded sector-shaped conductors, you will need a Klauke K22, HK60/22, or EK22 crimping tool with the following crimping dies:

  • R22/95 for 95 mm2
  • R22/120 for 120 mm2
  • R22/150 for 150 mm2
  • R22/185 for 185 mm2
  • R22/240 for 240 mm2
  • R22/300 for 300 mm2

Flexible conductors are adequate to a limited extent. They must be indent-crimped with a Klauke series 13 or series 25 crimping die.

Design verification as per IEC/EN 61439(Show features)(Hide features)
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Installation, isolation and connection material (EG000047) / Crimp cable lug for copper conductors according to DIN 46235 (EC001050)
Electric engineering, automation, process control engineering / Electrical insulation and connecting material / Lug, conductor sleeve, connector / Crimp cable lug for copper conductors ([email protected] [AKN512010])
Bolt dimension metric (M..)
  0
Connecting angle
  Straight
Number of fixing holes
  1
Code digit
  0
Nominal cross section
 mm²300
Surface protection
  Tinned
Dimensions
IL01219001Z (AWA1230-2049) Cable lugs-NZM3

>>

Datasheet - PDF
