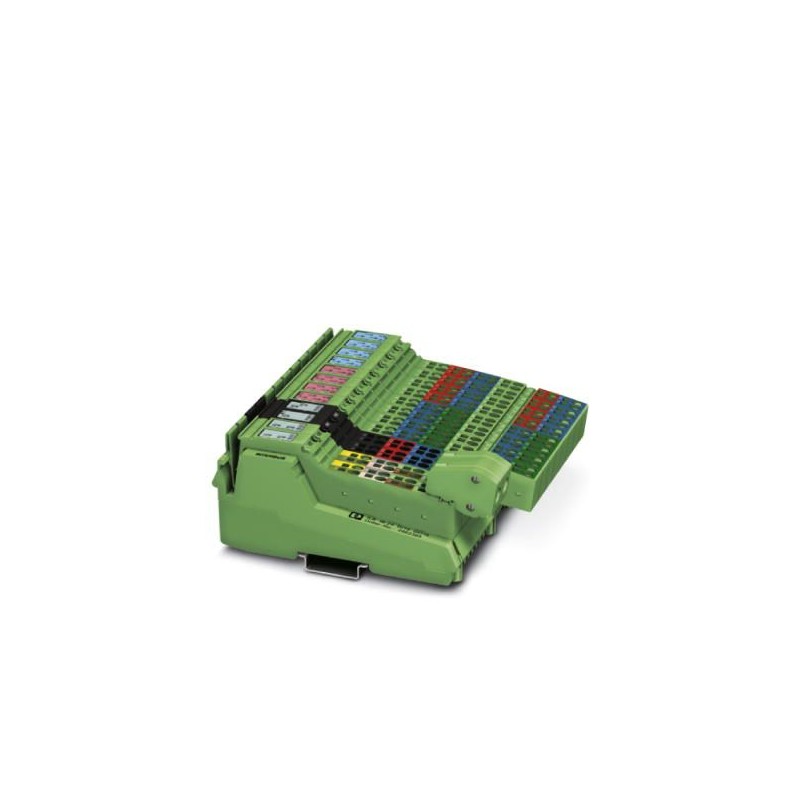

ILB IB 24 DI16 DO16

2862385

PHOENIX_CONTACT

Available

Ship on today

Inline Block IO digital input/output module, INTERBUS, 16 inputs, 24 V DC, 2, 3-wire connection technology, 16 outputs, 24 V DC, 500 mA, 2, 3-wire connection technology

More details


AUTOMATION Industrial Automation - PHOENIX CONTACT

I/O systems - PHOENIX CONTACT

* Brand new produt in its original packing covered by the warranties and certifications provided by PHOENIX_CONTACT

*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Dimensions

Width156 mm
Height141 mm
Depth57 mm
Note on dimensionsSpecfications with connectors

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)max. 85 % ((non-condensing))
Permissible humidity (storage/transport)95 % (non-condensing)
Air pressure (operation)80 kPa ... 108 kPa (up to 2000 m above mean sea level)
Air pressure (storage/transport)66 kPa ... 108 kPa (up to 3500 m above mean sea level)
Degree of protectionIP20

General

Net weight500 g
Note on weight specificationswith connectors
Mounting typeDIN rail
NS 35/7,5

Interfaces

Fieldbus systemINTERBUS
DesignationINTERBUS
Connection methodInline connector
Transmission speed500 kBit/s

Power supply for module electronics

Supply voltage24 V DC
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Supply current80 mA
Current consumptionapprox. 80 mA

Digital inputs

Input nameDigital inputs
Connection methodSpring-cage connection
2, 3-wire
Number of inputs16 (EN 61131-2 type 1)
Typical response timeapprox. 500 µs
Protective circuitShort-circuit protection, overload protection of the sensor supply
Input voltage24 V DC
Input voltage range "0" signal-30 V DC ... 5 V DC
Input voltage range "1" signal15 V DC ... 30 V DC
Nominal input current at UIN5 mA

Digital outputs

Output nameDigital outputs
Connection methodSpring-cage connection
2, 3-wire
Number of outputs16
Protective circuitShort-circuit and overload protection
Output voltage24 V DC
Nominal output voltage24 V DC
Maximum output current per channel500 mA
Maximum output current per module / terminal block8 A
Maximum output current per module8 A
Nominal load, inductive12 VA
Nominal load, lamp12 W
Nominal load, ohmic12 W

Datasheet - PDF

Title:Language:Size:Type:
PHOENIX CONTACT-2862385-ILB IB 24 DI16 DO16English171 KbytesPHOENIX CONTACT-2862385-ILB IB 24 DI16 DO16
