View larger

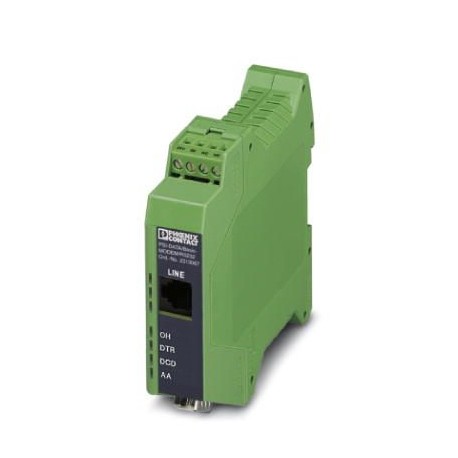

PSI-DATA/BASIC-MODEM/RS232 2313067 PHOENIX CONTACT Modem
PSI-DATA/BASIC-MODEM/RS232
2313067
PHOENIX_CONTACT
Modem
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2313067 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 357 (C-6-2017) |
| GTIN | 4046356098823 |
| Weight per Piece (excluding packing) | 117.800 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | 0 °C ... 55 °C |
|---|---|
| Degree of protection | IP20 |
| Noise immunity | EN 61000-6-2:2005 |
General
| Electrical isolation | VCC // PSTN // V.24 (RS-232) |
|---|---|
| Test voltage data interfaces | 1500 V |
| Test voltage data interface/power supply | 1.5 kVrms(50 Hz, 1 min.) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 55032 |
| Net weight | 117.8 g |
| Housing material | PA V0 |
| Color | green |
| MTTF | 628 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| 290 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day)) | |
| 115 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) |
Power supply
| Nominal supply voltage | 24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply) |
|---|---|
| Supply voltage range | 10 V DC ... 30 V DC (via pluggable COMBICON screw terminal block) |
| Typical current consumption | < 100 mA (24 V DC) |
| < 40 mA |
Serial interface
| Interface 1 | V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1 |
|---|---|
| Interface | RS-232 |
| Connection method | D-SUB 9 plug |
| File format/coding | Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length |
| Transmission length | 15 m |
| Data flow control/protocols | Software handshake, Xon/Xoff or hardware handshake RTS/CTS |
| Serial transmission speed | 0.3; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2 kbps |
| Interface 2 | PSTN-Port (a/b-Line) |
| Operating mode | Dial-up modem, 2-wire half/full duplex |
| Connection method | RJ12, 6-pos. |
| Dialing procedure | Multiple frequency/pulse dialing, configuration via software |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Noise emission | EN 55032 |
| Noise immunity | EN 61000-6-2:2005 |
| Connection in acc. with standard | CUL |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250312eCl@ss 4.127250312eCl@ss 5.027242208eCl@ss 5.119030100eCl@ss 6.019060500eCl@ss 7.019060590eCl@ss 8.019060590eCl@ss 9.019060590
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
| PHOENIX CONTACT-2313067-PSI-DATA/BASIC-MODEM/RS232 | 111 Kbytes |
|
