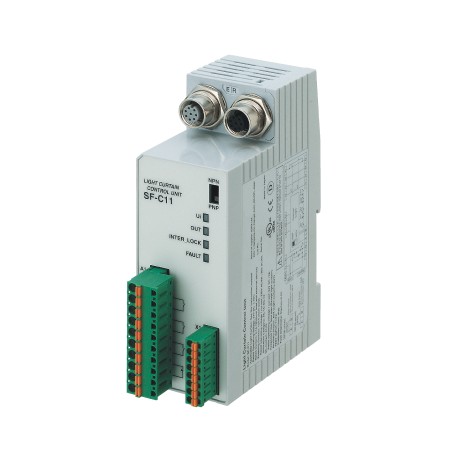

SFC11 SF-C11 PANASONIC Control unit for SF4B, connector type
SFC11
SF-C11
PANASONIC
Control unit for SF4B, connector type
SF-C11_Exclusive Control Unit for Safety Light Curtain_Exclusive Control Unit for Safety Light Curtain SF-C10_Connector connection type control unit
Safety - PANASONIC > SF4B thru-beam type 4, IP67. ACCE - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | SF-C11 |
| Part Number | SF-C11 |
| Product | Exclusive Control Unit for Safety Light Curtain |
| Details | Connector connection type control unit |
| Product name | Exclusive Control Unit for Safety Light Curtain SF-C10 |
| Item | Specifications |
|---|---|
| Product Number | SF-C11 |
| Part Number | SF-C11 |
| Connectable safety light curtains | SF4D / SF4B / SF4B-G / SF2B series |
| Applicable standards:International standard | IEC 61496-1 (Type 4) |
| CE marking directive compliance | Machinery Directive, Low Voltage (SF-C11/C13 only) Directive, EMC Directive, RoHS Directive |
| Applicable standards:Japan | JIS B 9704-1 (Type 4), JIS B 9705-1(Category 4), |
| Applicable standards:Europe (EU) | EN 61496-1 (Type 4), EN 55011, EN ISO 13849-1 (Category 4, PLe), ISO 13849-1 (Category 4, PLe) |
| Applicable standards:North America | ANSI/UL 61496-1 (Type 4), UL 1998 (Class 2) (Note：SF-C11 and SF-C13 comply with UL 1998 (Class 2).) |
| Power voltage | 24 V DC ±10 % Ripple P-P 10 % or less / 100 mA or less (without safety light curtain) |
| Current consumption | 100 mA or less (without light curtain) |
| Fuse rating | Built-in electronic fuse, Triggering current: 0.5 A or more, Reset after power down |
| Safety output | NO contact × 3 (13-14, 23-24, 33-34) |
| Safety output:Application category | AC-15, DC-13 (IEC 60947-5-1) |
| Safety output:Rated operation voltage (Ue) /Rated operation current (le) | 6 A / 30 V DC, 6 A / 230 V AC, resistive load (For inductive load, during contact protection) Min. applicable load: 10 mA (at 24 V DC) (Note：If several SF-C11 or SF-C13 units are being used in a line together, leavea space of 5 mm 0.197 in or more between each unit. If the units are touching each other, reduce the rated operating current for safety output in accordance with the ambient operating temperature as shown in the graphs below.) |
| Safety output:Contact material / contacts | AgSnO, self cleaning, positively driven |
| Safety output:Contact resistance | 100 mOhm or less (initial value) |
| Safety output:Contact protection fuse rated | 6 A (slow blow) |
| Safety output:Mechanical lifetime | 10,000,000 times or more (open/close frequency of 180 times/min) (Note：The life expectancy of the relay varies depending on the type of load, open / close frequency, ambient conditions and others.) |
| Safety output:Electrical lifetime | 100,000 times or more (open/close frequency of 20 times/min, 230 V AC, 3 A, using resistance load) (Note：The life expectancy of the relay varies depending on the type of load, open / close frequency, ambient conditions and others.) |
| Pick-up delay(Auto reset / Manual reset) | 80 ms or less / 90 ms or less |
| Response time | 10 ms or less |
| Auxiliary outputs | Safety relay contact (NC contact) × 1 (41-42) (Related to enabling path) |
| Auxiliary output:Rated operation voltage / current | 24 V DC / 2 A, Min. applicable load: 10 mA (at 24 V DC) |
| Auxiliary output:Contact protection fuse rated | 2 A (slow blow) |
| Semiconductor auxiliary output(AUX) | <Minus ground (Setting for PNP)> PNP open-collector transistor ・Max. source current: 60 mA ・Applied voltage: same as supply voltage(between the semiconductor auxiliary output and +V) ・Residual voltage: 2.3 V or less (at source current 60 mA) Leakage current: 2 mA or less <Plus ground (Setting for NPN)> NPN open-collector transistor ・Max. sink current: 60 mA ・Applied voltage: same as supply voltage (between the semiconductor auxiliary output and 0 V) ・Residual voltage: 1.5 V or less (at sink current 60 mA) Leakage current: 2 mA or less |
| Semiconductor auxiliary output(AUX):Output operation | Related to auxiliary output of safety light curtain |
| Overvoltage category | II |
| Indicators:Power supply (Ui) | Green LED (lights up when the power is ON) |
| Indicators:Safety output [OUT] | Green LED (lights up when safety output is closed) (Note：The operation indicator is marked as "Enabling" on the unit for SF-C12.) |
| Indicators:Interlock (INTER_LOCK) | Yellow LED (lights up when safety output is opened) |
| Indicators:Fault (FAULT) | Yellow LED (blinks when fault occurs) |
| External relay monitor function | Incorporated |
| Trailing edge function | Incorporated |
| Polarity selection function | Incorporated (Sliding switch allows selection of plus/minus ground)Minus ground: Correspond to PNP output safety light curtainPlus ground: Correspond to NPN output safety light curtain (Note：Please switch the sliding switch to the PNP side for minus ground and to the NPN side for plus ground.) |
| Pollution degree | 2 |
| Environmental resistance:Degree of protection | Enclosure: IP40 Terminal: IP20 |
| Ambient temperature | -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -25 to +70 ℃ -13 to +158℉ |
| Ambient humidity | 30 to 85 % RH, Storage: 30 to 95 % RH |
| Vibration resistance | Resistance / malfunction 10 to 55 Hz frequency, 0.35 mm 0.014 in amplitude in X, Y, and Z directions for twenty times each |
| Enclosure material | ABS |
| Connection terminal | Detachable spring-cage terminal |
| Weight | Net weight: 320 g approx. |
