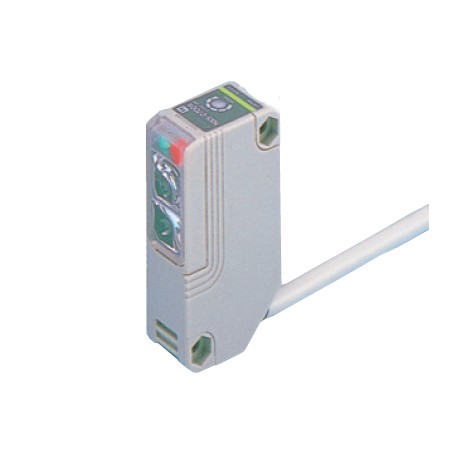

NX5D700B NX5-D700B PANASONIC Diffuse refl., 700mm, dark-on, relay output, AC/DC
NX5D700B
NX5-D700B
PANASONIC
Diffuse refl., 700mm, dark-on, relay output, AC/DC
Compact Photoelectric Sensors - PANASONIC > NX5 Multi-voltage photoelectric sensor - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | NX5-D700B |
| Part Number | NX5-D700B |
| Product | Compact Multi-voltage Photoelectric Sensor |
| Details | Diffuse reflective |
| Product name | Compact Multi-voltage Photoelectric Sensor NX5 |
| Item | Specifications |
|---|---|
| Product Number | NX5-D700B |
| Part Number | NX5-D700B |
| CE marking directive compliance | Low Voltage Directive, EMC Directive, RoHS Directive |
| Sensing range | 700 mm 27.559 in (Note) The sensing range and the hysteresis of the diffuse reflective type sensor are specified for white non-glossy paper (200 x 200 mm 7.874 x 7.874 in) as the object. |
| Sensing object | Opaque, translucent or transparent object (Note) Make sure to confirm detection with an actual sensor before use. |
| Hysteresis | 15 % or less of operation distance (Note) The sensing range and the hysteresis of the diffuse reflective type sensor are specified for white non-glossy paper (200 x 200 mm 7.874 x 7.874 in) as the object. |
| Repeatability(perpendicular to sensing axis) | 0.3 mm 0.012 in or less |
| Supply voltage | 24 to 240 V AC +10-15 % or 12 to 240 V DC +10-15 % Ripple P-P 10 % or less |
| Power consumption | 2 VA or less |
| Output | Relay contact 1 c - Switching capacity: 250 V AC 1 A (resistive load), 30 V DC 2 A (resistive load) - Electrical life: 500,000 or more switching operations (switching frequency 3,600 operations/hour), 100,000 or more switching operations (switching frequency 3,600 operations/hour) - Mechanical life: 100 million or more switching operations (switching frequency 36,000 operations/hour) |
| Output:Output operation | Dark-ON |
| Response time | 10 ms or less |
| Operation indicator | Red LED (lights up when the output is ON) |
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
| Power indicator | - |
| Sensitivity adjuster | Continuously variable adjuster |
| Automatic Interference prevention function | Incorporated (Two units of sensors can be mounted close together.) |
| Pollution degree | 3 (Industrial environment) |
| Protection | IP66 (IEC) |
| Ambient temperature | -20 to +55 degrees -4 to +131 degrees Fahrenheit (No dew condensation or icing allowed) (Note) , Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit (Note) In case the sensor is to be used at an ambient temperature of -15 degrees +5 degrees Fahrenheit , or less, please contact our office. |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,500 Lx or less at the light-receiving face |
| Voltage withstandability | 1,500 V AC for one min. between power supply and output terminals 1,000 V AC for one min. between relay contact terminals |
| Insulation resistance | 20 MOhm , or more, with 500 V DC megger between power supply and output terminals, and between relay contact terminals |
| Vibration resistance | 10 to 55 Hz frequency, 1.5 mm0.059 indouble amplitude in X, Y and Z directions two hours each |
| Shock resistance | 500 m/s2(50 G approx.) in X, Y and Z directions three times each |
| Emitting element | Infrared LED (modulated) |
| Emitting element:Peak emission wavelength | 880 nm 0.035 mil |
| Material | Enclosure: Polycarbonate Lens: Polycarbonate Cover: Polycarbonate |
| Cable | 0.3 mm2 5-core cabtyre cable, 2 m 6.562 ft long |
| Cable extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable |
| Weight | 140 g approx. |
| Accessory | Adjusting screwdriver: 1 pc. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: NX5D700B - NX5D700B | NX5-D700B | 398 Kbytes |
 |
| Download general catalog |
|
