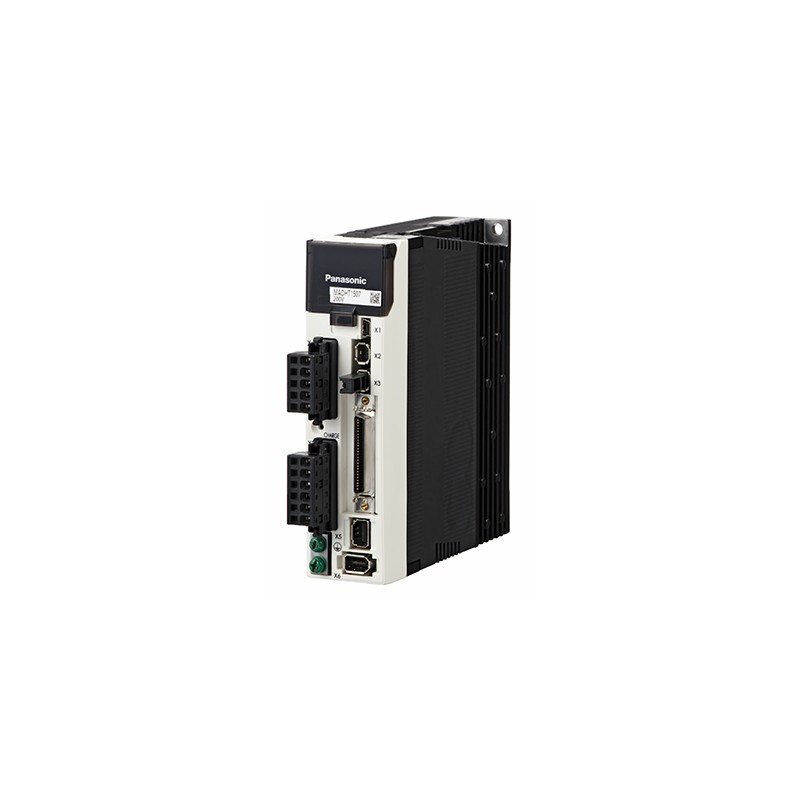

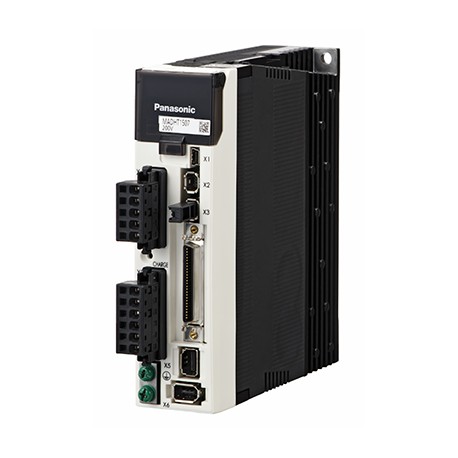

MHDHTB4A2 PANASONIC Servo drive MINAS A5, position, velocity and torque control, with Safety Torque Off func..
MHDHTB4A2
PANASONIC
Servo drive MINAS A5, position, velocity and torque control, with Safety Torque Off function(STO), 11/15kW, 3x400VAC
Minas A5 Series - PANASONIC > MINAS A5, Drivers, 3 phase 400V power supply - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Part Number | MHDHTB4A2 |
| Product | Servo Driver |
| Details | A5 series Speed, Position, Torque, Full-closed type with the safety function |
| Product name | MINAS A5 Family Servo Driver |
| Features | Servo motor that bring out potential of the machine. |
| Item | Specifications |
|---|---|
| Part Number | MHDHTB4A2 |
| Details | A5 series Speed, Position, Torque, Full-closed type with the safety function |
| Family Name | MINAS A5 |
| Series | A5 series |
| Type | Speed, Position, Torque, Full-closed type |
| Frame | H-Frame |
| Frequency response | 2.3 kHz |
| Control method | Position control, Velocity control, Torque control, and Full-closed control |
| Safety Function | with the safety function |
| Power device Max. current rating | 150A |
| Current detector current rating | 120A |
| Supply voltage | 3-phase 400 V |
| I/F Classification of type | Analog/Pulse |
| Dimensions (W) (Unit: mm) | 261 |
| Dimensions (H) (Unit: mm) | 450 |
| Dimensions (D) (Unit: mm) | 270 |
| Mass (kg) | 21.0 |
| Environment | For more details, please refer to the instruction manual. |
Datasheet - PDF
▲| Title: | Type: | |
|---|---|---|
| Download general catalog |
|
