LS401P
LS-401P
PANASONIC
1

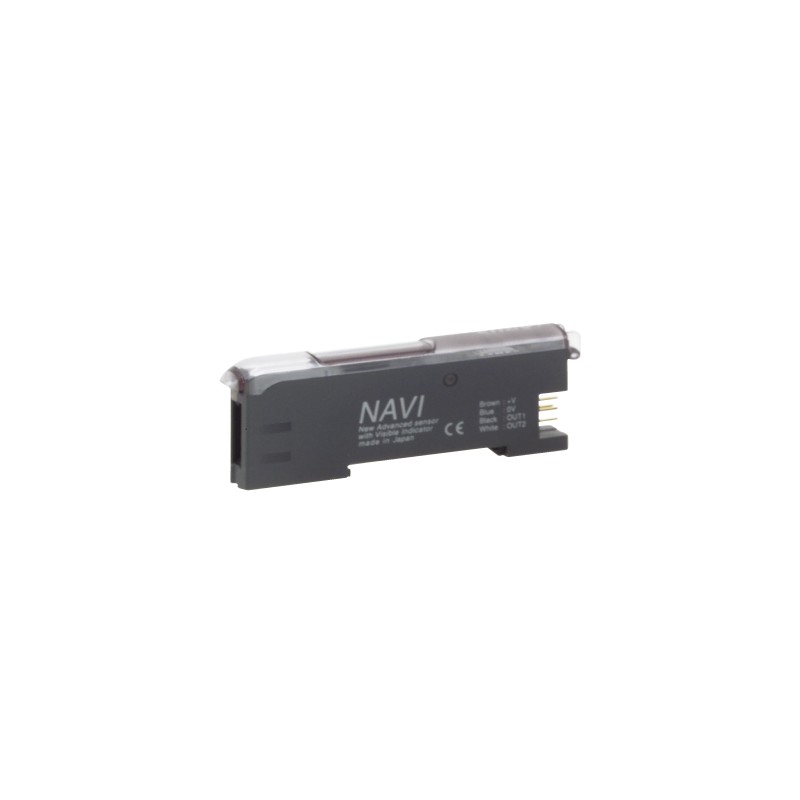

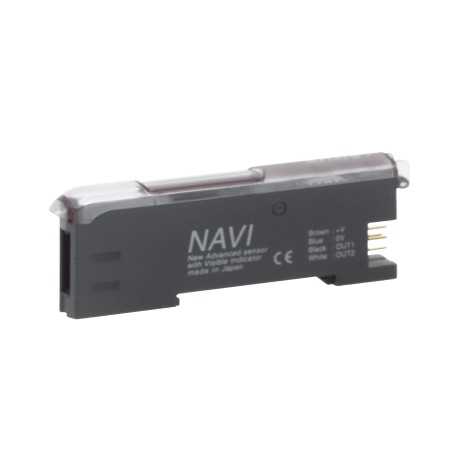

Laser Amplifier (with display), connector type, 2 outputs PNP
Digital laser - PANASONIC > LS high precision Digital Laser Sensor - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Product Number | LS-401P |
Part Number | LS-401P |
Product | Digital Laser Sensor |
Details | Amplifier (Connector type) |
Product name | Digital Laser Sensor LS-400 |
Item | Specifications |
---|---|
Product Number | LS-401P |
Part Number | LS-401P |
Operation indicator | Orange LED (lights up when output 1 and output 2 are ON) |
Laser emission indicator | Green LED (lights up during laser emission) |
Ambient temperature | -10 to +55 ℃+14 to +131 ℉(If 4 to 7 units are mounted close together: -10 to +50 ℃+14 to +122 ℉, if 8 to 16 units are mounted close together: -10 to +45 ℃+14 to +113 ℉) (No dew condensation or icing allowed), Storage: -20 to +70 ℃-4 to +158 ℉ |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
Vibration resistance | 10 to 150 Hz frequency, 0.75 mm0.030 indouble amplitude in X, Y and Z directions for two hours each |
Shock resistance | 98 m/s2acceleration (10 G approx.) in X, Y and Z directions five times each |
Material | Enclosure: Heat-resistant ABS Transparent cover: Polycarbonate Push button switch: Acrylic Jog switch: ABS |
Cable | - (Note) The cable is not supplied as an accessory. Be sure to use the optional quick-connection cables given below. Main cable (4-core): CN-74-C1 (cable length 1 m3.281 ft), CN-74-C2 (cable length 2 m6.562 ft), CN-74-C5 (cable length 5 m16.404 ft) Sub cable (2-core): CN-72-C1 (cable length 1 m3.281 ft), CN-72-C2 (cable length 2 m6.562 ft), CN-72-C5 (cable length 5 m16.404 ft) |
Weight | Net weight: 15 g approx Gross weight: 20 g approx |
Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
Current consumption | Normal operation: 950 mW or less (Current consumption 40 mA or less at 24 V supply voltage) ECO mode: 780 mW or less (Current consumption 33 mA or less at 24 V supply voltage) |
Outputs(Output 1, Output 2) | PNP open-collector transistor - Maximum source current: 100 mA (Note) - Applied voltage: 30 V DC or less (between output and +V) - Residual voltage: 1.5 V or less [at 100 mA (Note) source current] (Note) 50 mA if 5 to 8 connector type amplifiers are connected in cascade , and 25 mA if 9 to 16 connector type amplifiers are connected in cascade. |
Outputs(Output 1, Output 2):Output operation | Selectable either Light-ON or Dark-ON, with jog switch |
Outputs(Output 1, Output 2):Short-circuit protection | Incorporated |
Response time | 80 micro s or less (H-SP), 150 micro s or less (FAST), 500 micro s or less (STD), 4 ms or less (U-LG) selectable with jog switch |
External input(Laser emission halt Full-auto teaching / Limit teaching) | - |
Select indicator | Yellow LED (lights up when either output 1 or output 2 is selected) |
MODE indicator | RUN: Green LED TEACH, L/D, TIMER, CUST, PRO: Yellow LED |
Digital display | 4 digit (green) + 4 digit (red) LED display |
Sensitivity setting | Normal mode: 2-level teaching / Limit teaching / Full-auto teaching / Manual adjustment Window comparator mode: Teaching (1-level, 2-level, 3-level) / Manual adjustment Hysteresis mode: Teaching (1-level, 2-level, 3-level) / Manual adjustment Differential mode: 5-level settings |
Fine sensitivity adjustment function | Incorporated |
Timer function | Incorporated with variable ON-delay / OFF-delay / ONE SHOT timer, switchable either effective or ineffective. |
Timer function:Time | 1 to 9,999 ms |
Automatic Interference prevention function | Incorporated [Up to four sets of sensor heads can be mounted close together. (However, disabled when in H-SP mode)] |
Cable extension | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable. |
