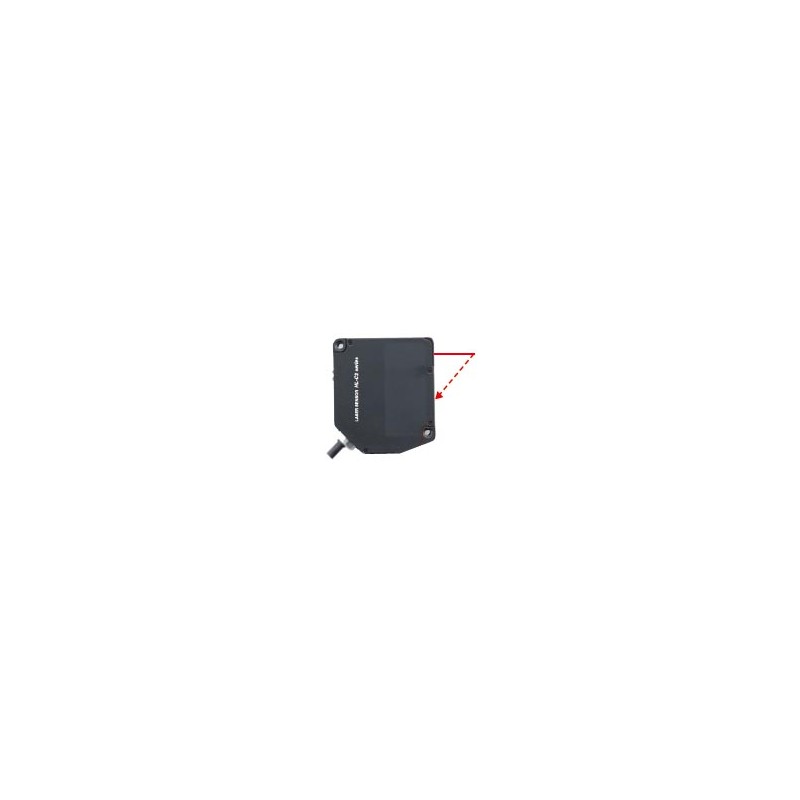

HL-C203FE-MK PANASONIC Sensorhead HL-C2, Laserclass 2, 30±5mm, 0.025μm, Linetype
HL-C203FE-MK
PANASONIC
Sensorhead HL-C2, Laserclass 2, 30±5mm, 0.025μm, Linetype
Laser Sensors - Spot Type - AN - PANASONIC > HLC2-Controller - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | HL-C203FE-MK |
| Part Number | HL-C203FE-MK |
| Product | Ultra High-speed High-precision Laser Displacement Sensor |
| Details | Sensor head (Super-high precision) |
| Product name | Ultra High-speed・High-precision Laser Displacement Sensor HL-C2 |
| Item | Specifications |
|---|---|
| Product Number | HL-C203FE-MK |
| Part Number | HL-C203FE-MK |
| Setup mode | Diffuse reflective Specular reflective |
| Measurement center distance | Diffuse reflective: 30 mm 1.181 in Specular reflective: 26.4 mm 1.039 in |
| Measuring range | Diffuse reflective: plus or minus 5 mm plus or minus 0.197 in Specular reflective: plus or minus 4.6 mm plus or minus 0.181 in (Note) Measuring range at sampling periods of 20 micro s and 10 micro s is as follows. [Diffuse reflective] 20 micro s: 0 to +5.0 mm 0 to +0.197 in 10 micro s: +3.8 to +5.0 mm +0.150 to +0.197 in [Specular reflective] 20 micro s: 0 to +4.6 mm 0 to +0.181 in 10 micro s: +3.6 to +4.6 mm +0.142 to +0.181 in |
| Resolution [Average number of samples] | 0.25 micro m 0.010 mil [256] (Note) The P-P value for the deviation in the digital measurement values at the measurement center range has been converted for the measurement center distance. |
| Linearity | plus or minus 0.03 % F.S. (Note) Indicates error with respect to the ideal linear values for digital displacement output when standard objects were measured by our company. It may vary depending on the types of objects being measured. |
| Temprerature characteristics | 0.01 % F.S./degrees |
| Light source | Red semiconductor laser (Peak emission wavelength: 658 nm 0.026 mil) Class 2 (IEC / JIS), Class II (FDA) Max. output: 1 mW |
| Beam diameter | 30 x 1,200 micro m 1.181 x 47.244 mil approx. (Note) This beam diameter is the size at the measurement center distance. These values were defined by using 1/e2 (13.5 %) of the center light intensity. If there is a slight leakage of light outside the normal spot diameter and if the periphery surrounding the sensing point has a higher reflectivity than the sensing point itself, then the results may be affected. |
| Receiving element | Linear image sensor |
| Indicator : Laser emission | Green LED (lights up during laser emission) |
| Indicator : Measuring range | Yellow LED (lights up when near the measurement center distance, blinks when within the measuring range, and lights out when outside of the measuring range.) |
| Environmental resistance : Protection | IP67 (IEC) (excluding the connector) |
| Environmental resistance : Ambient temperature | 0 to +45 degrees +32 to +113 degrees Fahrenheit (No dew condensation), Storage: -20 to +70 degrees -4 to +158 degrees Fahrenheit |
| Environmental resistance : Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Environmental resistance : Ambient illuminance | Incandescent light: 3,000 liter x at the light-receiving face |
| Environmental resistance : Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in amplitude in X,Y and Z directions for two hours each |
| Environmental resistance : Shock resistance | 196 m/s2 acceleration (20 G approx.) in X,Y and Z directions for three times each |
| Cable | Cabtyre cable, 0.5 m 1.640 ft long with connector |
| Cable extension | Extension up to total 30 m 98.425 ft is possible, with optional cable. |
| Material | Enclosure: Die-cast aluminum Case cover: Die-cast aluminum Front cover: Glass |
| Weight | 250 g approx. (including cable) |
| Accessory | English warning label: 1 set [The FDA regulations conforming type includes a set of both the IEC label (written in English) and JIS label (written in Japanese)]. |
