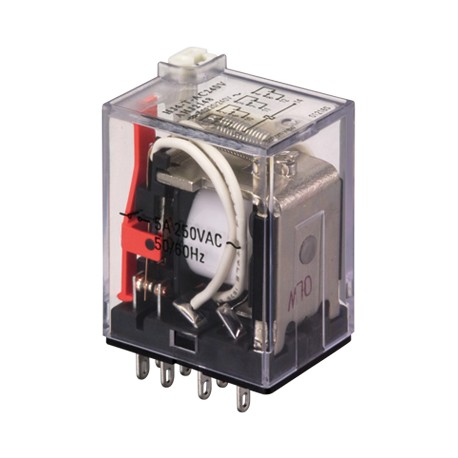

HJ4-L-T-DC24 AHJ224206 PANASONIC Power-Relay, 4-Form-C, Single side stable, Plug-in, LED, Test Button
HJ4-L-T-DC24
AHJ224206
PANASONIC
Power-Relay, 4-Form-C, Single side stable, Plug-in, LED, Test Button
Switches / Microswitches - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | HJ4-L-T-DC24V |
| Part Number | AHJ224206 |
| Details | With a test button, Without Au plating, With LED indication |
| Product name | HJ Relays(Discontinued) |
| Features | Relay for control panel of 2c 7A and 4c 5A |
| Item | Specifications |
|---|---|
| Product Number | HJ4-L-T-DC24V |
| Part Number | AHJ224206 |
| Accessories | Sockets and terminal sockets are available. |
| Protective construction | Dust Cover Type |
| Terminal arrangment | Plug-in terminal |
| Contact arrangement | 4 Form C |
| Coil voltage | 24V DC |
| Nominal Operating Power | 900mW |
| Pick-up voltage | 19.2V DC |
| Drop-out voltage | 2.4V DC |
| Nominal switching capacity (Resistive load) | 5A 250V AC, 5A 30V DC |
| Min. switching capacity | 1mA 5V DC |
| Type of operation | BBM |
| Contact material | Ag |
| Expected life (Mechanical) (Min.operation) | 2x10^7 |
| Expected life (Electrical) | 1x10^5 |
| Breakdown voltage (Contact-Contact)(Initial) | 1000Vrms |
| Breakdown voltage (Contact-Coil)(Initial) | 2000Vrms |
| Ambient temperature | -40deg to +70deg |
| Operating function | Single Side Stable Type |
| Contact specification | Without Au plating |
| Operation indication | With LED indication |
| Type classification | With a test button |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SWITCHES EN.pdf | 2 Mbytes |
|
| Download general catalog |
|
