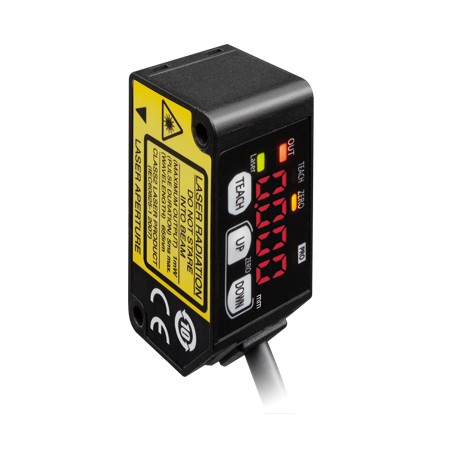

HG-C1030 PANASONIC Compact Laser Displacement Sensor, 30mm+-5mm, NPN, 0-5V/4-20mA, cable 2m
HG-C1030
PANASONIC
Compact Laser Displacement Sensor, 30mm+-5mm, NPN, 0-5V/4-20mA, cable 2m
Laser Sensors - Spot Type - AN - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | HG-C1030 |
| Part Number | HG-C1030 |
| Product | CMOS type Micro Laser Distance Sensor |
| Details | Measurement center 30mm 1.181 in type |
| Product name | CMOS type Micro Laser Distance Sensor HG-C |
| Item | Specifications |
|---|---|
| Product Number | HG-C1030 |
| Part Number | HG-C1030 |
| Applicable standard | EMC Directive Compliance, FDA Standard |
| Measurement center distance | 30mm1.181 in |
| Measuring range | ±5mm0.197 in |
| Repeatability | 10 μm0.394 mil |
| Linearity | ±0.1%F.S. |
| Temprerature characteristics | 0.03% F.S. /℃ |
| Light source | Red semiconductor laser Class 2 (JIS / IEC / GB) / Class II (FDA)(Note) Max. output: 1mW emission peak wavelength: 655nm 0.026 mil (Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated June 24, 2007, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration). |
| Beam diameter | ø50 μm1.969 milapprox. (Note) This is the size in the measurement center distance. These values were defined by using 1 / e2(13.5% approx.) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value. |
| Supply voltage | 12 to 24V DCplus or minus 10% Ripple P-P 10% |
| Current consumption | 40 mA or less (at 24V DC supply voltage) 65 mA or less (at 12V DC supply voltage) Note : Specifications have been changed from shipment in August, 2016. For shipment before July 2016 ： 40 mA or less (at 24 V DC supply voltage), 60 mA or less (at 12 V DC supply voltage) |
| Control output | NPN open-collector transistor - Maximum sink current: 50mA - Applied voltage: 30V DC or less (Between control output to 0V) - Residual voltage: 1.5V or less (At 50mA sink current) - Leakage current: 0.1 mA or less |
| Control output:Output operation | Either Light-ON or Dark-ON |
| Control output:Short-circuit protection | Incorporated (Auto reset type) |
| Analogue output : Analog voltage output | • Output range: 0 to 5 V (at alarm: +5.2 V) • Output impedance: 100Ω |
| Analogue output : Analog current output | • Output range: 4 to 20mA (at alarm: 0mA) • Output impedance: 300Ω or less Note : Analog current output has been added from shipment in August 2016. |
| Response time | Switchable between 1.5 ms / 5 ms / 10 ms |
| External input | NPN non-contact input - Input conditions Invalid: +8 to +V DC or Open Valid: 0 to +1.2V DC - Input impedance: 10kΩ approx. |
| Pollution degree | 2 |
| Operating altitude | 2,000 m6561.680 ftor less |
| Protection | IP67 (IEC) |
| Ambient temperature | -10 to +45 ℃-14 to 113 ℉(No dew condensation or icing allowed), Storage: -20 to +60 ℃-4 to 140 ℉ |
| Ambient humidity | 35 to 85% RH, Storage: 35 to 85% RH |
| Ambient illuminance | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm0.059 indouble amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Cable | 5-core composite cable, 2 m6.5617 ftlong |
| Cable extension | Extension up to total 10 m393.701 ftis possible with 0.3 mm2, or more, cable. |
| Material | Enclosure: Aluminum die-cast Front cover: Acrylic |
| Weight | Net weight: 35 g approx. (without cable), 85 g approx. (including cable) |
