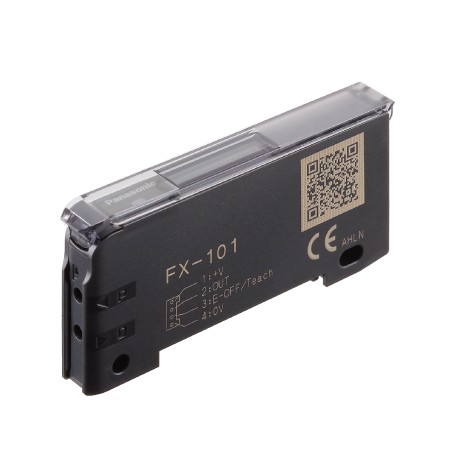

FX101 FX-101 PANASONIC Fiber amplifier, Standard type, NPN, display, connector type
FX101
FX-101
PANASONIC
Fiber amplifier, Standard type, NPN, display, connector type
Fiber - PANASONIC > FX100 preset fiber sensors - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | FX-101 |
| Part Number | FX-101 |
| Product | Digital Fiber Sensor |
| Details | Standard type |
| Product name | Digital Fiber Sensor FX-100 |
| Item | Specifications |
|---|---|
| Product Number | FX-101 |
| Part Number | FX-101 |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Power consumption | Normal operation: 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode: 600 mW or less (Current consumption 25 mA or less at 24 V supply voltage) |
| Output | NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 1.5 V or less (at 100 mA sink current) |
| Output:Output operation | Selectable either Light-ON or Dark-ON, at SET mode |
| Output:Short-circuit protection | Incorporated |
| External input | NPN non-contact input - Signal condition High: +8 V to +V DC or Open Low: 0 to +2 V DC(Source current 0.5 mA or less) - Input impedance: 10 kOhm approx. |
| Response time | Emission frequency 0: 250 micro s or less (factory default setting) Emission frequency 1: 450 micro s or less Emission frequency 2: 500 micro s or less Emission frequency 3: 600 micro s or less |
| Sensitivity setting | 2-point teaching / Limit teaching / Full-auto teaching |
| Operation indicator | Orange LED (lights up when the output is ON) |
| Digital display | 4 digits (green) + 4 digits (red) LCD display |
| Fine sensitivity adjustment function | Incorporated |
| Timer function | ON-delay / OFF-delay timer, switchable either effective or ineffective [Timer period: 1 ms, 5 ms, 10 ms, 20 ms, 40 ms, 50 ms, 100 ms, 500 ms, 1,000 ms] |
| Emission amount setting function | 3-level + Auto setting (from production in December 2007) |
| Interference prevention function | Incorporated Emission frequency selection method (Functions at emission frequency 1, 2 or 3) (Note) When using the interference prevention function, set the emission frequencies for the amplifiers to be covered by the interference prevention function to different frequency values. However, the interference prevention function does not operate at emission frequency 0 (factory default setting). |
| Ambient temperature | –10 to +55 ℃+14 to +131℉ (If 4 to 7 units are mounted close together: –10 to +50 ℃+14 to +122℉, if 8 to 16 units are mounted close together: –10 to +45 ℃+14 to +113℉) (No dew condensation or icing allowed), Storage: –20 to +70 ℃–4 to +158℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure (Note) The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only. |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure (Note) The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only. |
| Vibration resistance | 10 to 150 Hz frequency, 0.75 mm0.030 indouble amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each |
| Emitting element (modulated) | Red LED (Peak emission wavelength: 643 nm0.025 mil) |
| Material | Enclosure: Polycarbonate Key switch: Polycarbonate Fiber lock lever: PBT |
| Connection method | Connector (Note) Connector attached cable CN-14A-C2 is not attached to the models that have no ''-CC2'' at the end of the model Nos.Make sure to use the optional connector attached cable CN-14A(-R)-Cx or the connector CN-14A, or a connector manufactured by J.S.T. Mfg., Ltd.(contact: SPHD-001T-P0.5, housing: PAP-04V-S). |
| Cable length | Total length up to 100 m328.084 ftis possible with 0.3 mm2, or more, cable. |
| Weight | Net weight: 15 g approx. Gross weight: 35 g approx. |
| Accessory | FC-FX-1(Protection cover): 1 pc. (Note) Protection cover FC-FX-1 has been attached from the production at July, 2011. |
