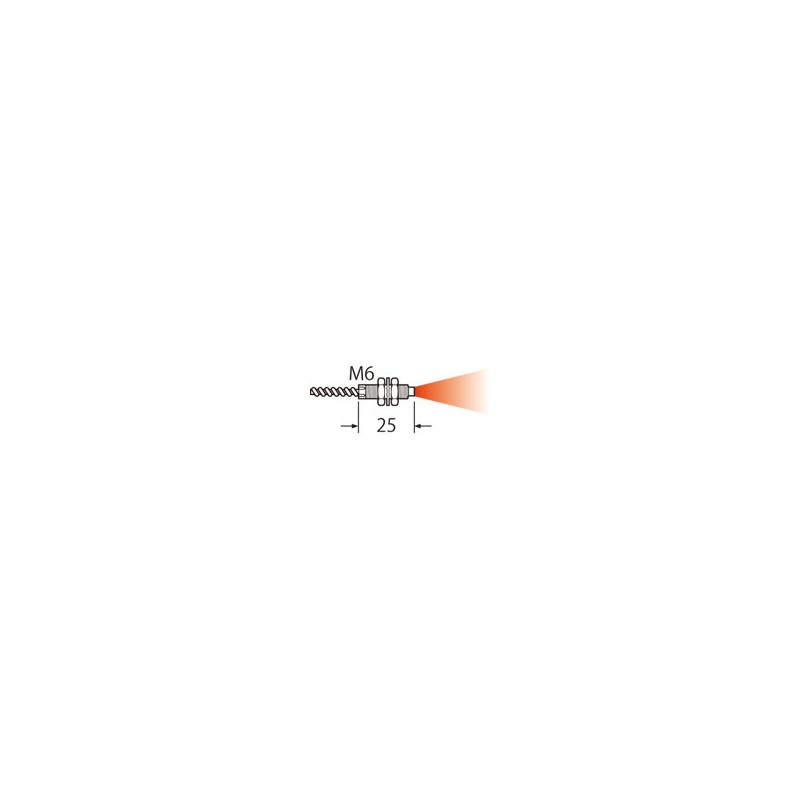

FDH35M2 FD-H35-M2 PANASONIC Fiber, Diffuse reflective, coaxial, stainless steel tube -60 to 350°C, M6, 2m
FDH35M2
FD-H35-M2
PANASONIC
Fiber, Diffuse reflective, coaxial, stainless steel tube -60 to 350°C, M6, 2m
Fiber - PANASONIC > HEAT-RESISTANT type optical fibers - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | FD-H35-M2 |
| Part Number | FD-H35-M2 |
| Product | Reflective type Fiber |
| Details | Heat-resistant Fiber |
| Product name | Heat-resistant Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-H35-M2 |
| Part Number | FD-H35-M2 |
| Sensing mode | Reflective type |
| Fiber type | Heat-resistant |
| Fiber head dia. | M6 |
| Fiber head length | 25 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Fiber cable length | 2m |
| Allowable bending radius | R25 mm |
| Free-cut | Not available |
| Semi-custom | Fiber length change |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | Heat-resistant |
| Environmental resistance : Ambient temperature MAX | 350 degrees |
| Environmental resistance : Ambient temperature MIN | -60 degrees |
| Sensing range（STD） | 260 mm 10.236 in (FX-500 series) |
| Sensing range（HYPR） | 720 mm 28.346 in (FX-500 series) |
| Sensing range（U-LG） | 540 mm 21.260 in (FX-500 series) |
| Sensing range（LONG） | 460 mm 18.110 in (FX-500 series) |
| Sensing range（FAST） | 150 mm 5.906 in (FX-500 series) |
| Sensing range（H-SP） | 45 mm 1.772 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: FDH35M2 - FDH35M2 | FD-H35-M2 | 4 Mbytes |
 |
| Download general catalog |
|
