FD-61
PANASONIC
1
Fiber, reflective, M6 head, 2 m cable
Reflex optical fiber. direct M6, model "Tough" (super-resistant), radius curvat. 4mm (R4), detecc. up to 1630mm (with FX551), long.2m, cutable, IP67, temp.-55/+80ºC range
FD-61_Reflective type Fiber_Threaded Type Fiber_Threaded Type Fiber
Fiber - PANASONIC > FZ Colour detection sensor amplifier accessories - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | FD-61 |
Part Number | FD-61 |
Product | Reflective type Fiber |
Details | Threaded Type Fiber |
Product name | Threaded Type Fiber |
Item | Specifications |
---|---|
Product Number | FD-61 |
Part Number | FD-61 |
Sensing mode | Reflective type |
Fiber type | Threaded type |

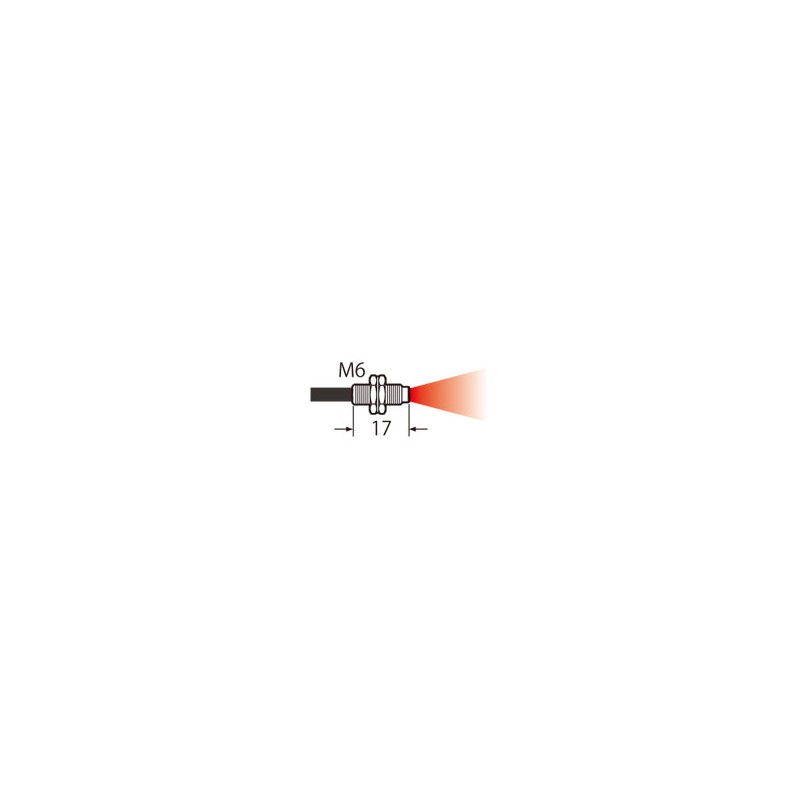

Fiber head dia. | M6 |
Fiber head length | 17 mm |
With sleeve | No |
Beam direction | Top-view |
Beam axis accuracy : Beam axis position | 150 micro m |
Beam axis accuracy : Beam axis Inclination | plus or minus 3 degrees |
Fiber cable length | 2 m |
Allowable bending radius | R4 mm |
Free-cut | Available |
Mounting lens | Not available |
Mounting protective tube | FDP-500,FDP-1000,FDP-1500 |
Application | General-purpose |
Environmental resistance : Protection | IP67 |
Environmental resistance : Ambient temperature MAX | 80 degrees |
Environmental resistance : Ambient temperature MIN | -55 degrees |
Sensing range(STD) | 450 mm 17.717 in (FX-500 series) |
Sensing range(HYPR) | 1,400 mm 55.118 in (FX-500 series) |
Sensing range(U-LG) | 840 mm 33.071 in (FX-500 series) |
Sensing range(LONG) | 670 mm 26.378 in (FX-500 series) |
Sensing range(FAST) | 200 mm 7.874 in (FX-500 series) |
Sensing range(H-SP) | 70 mm 2.756 in (FX-500 series) |
Title: | Size: | Type: |
---|---|---|
Datasheet 1: FD61 - FD-61 | FD-61 | FD-61 | 4 Mbytes | |
Download general catalog |
