EX-L261-P
PANASONIC
1

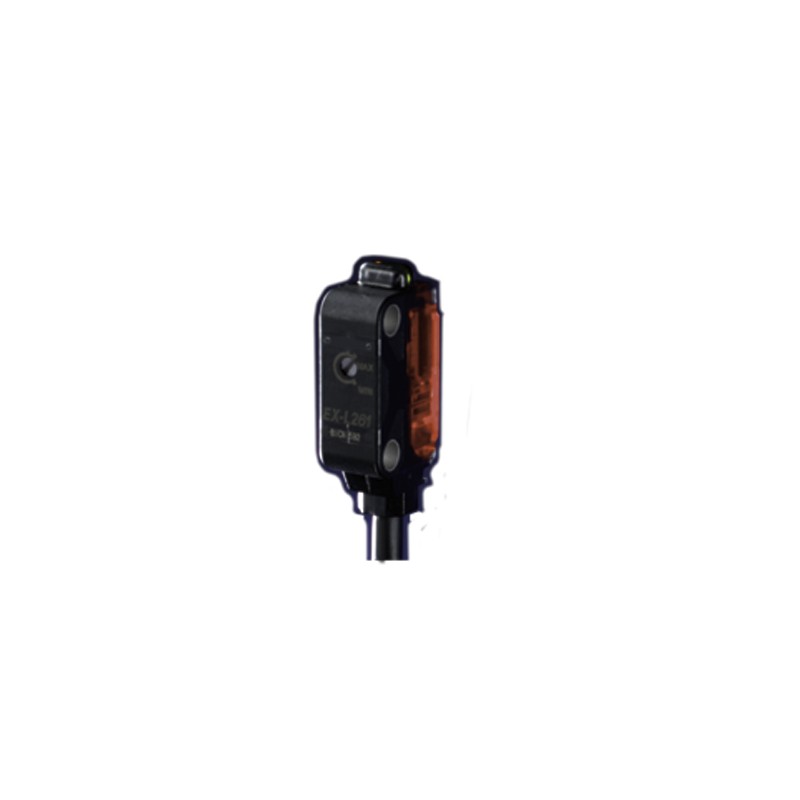

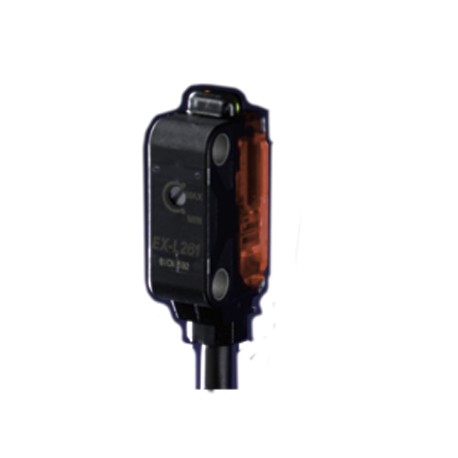

Laser, convergent reflexive, spot type, sensing range 20-50mm, convergent point 22mm, spot ø1mm, PNP, IP67, with sensitivity adjuster
Digital laser - PANASONIC > EX-L200 digital laser - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | EX-L261-P |
Part Number | EX-L261-P |
Product | Amplifier Built-in Ultra-compact Laser Sensor |
Details | Convergent reflective type |
Product name | Amplifier Built-in Ultra-compact Laser Sensor EX-L200 |
Item | Specifications |
---|---|
Product Number | EX-L261-P |
Part Number | EX-L261-P |
CE marking directive compliance | EMC Directive, RoHS Directive |
Sensing range | 20 to 50 mm0.787 to 1.969 in (Convergent point: 22 mm0.866 in) (Note)The sensing range is specified for white non-glossy papar (100 x 100 mm3.937 x 3.937 in) as the object. |
Emission spot size (Typical) | ø1mm0.039 in or less (at a sensing distance of 50 mm) |
Sensing object | Opaque, translucent or transparent object (Note)Make sure to confirm detection with an actual sensor before use. |
Minimum sensing object (Typical) | Gold wire of ø0.01 mmø0.0004 in (Note) Typical values when the sensitivity adjuster is optimally adjusted. |
Hysteresis | 20 % or less of operation distance |
Repeatability | Perpendicular to sensing axis: 0.2 mm0.0080 inor less |
Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
Current consumption | 15 mA or less |
Output | PNP open-collector transistor - Maximum source current: 50 mA |
Output:Output operation | Light-ON / Dark-ON selectable by the output operation switching input |
Output:Short-circuit protection | Incorporated (short-circuit protection / inverse polarity protection) |
Response time | 0.5 ms or less |
Sensitivity adjuster | Continuously variable adjuster |
Protection | IP67(IEC) |
Ambient temperature | -10 to +55 ℃+14 to +131 ℉(No dew condensation or no icing condition), Storage: -30 to +70 ℃-22 to +158 ℉ |
Ambient humidity | 35 to 85%RH , Storage: 35 to 85%RH |
Emitting element | Red semiconductor laser Class 1 (IEC / JIS/ FDA) (Note:This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated June 24, 2007, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration).) (Maximum output: EX-L261□ 1 mW, EX-L262□ 1.3 mW, Peak emission wavelength: 655 nm0.026 mil) |
Material | Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate |
Cable | 0.15 mm24-core cabtyre cable, 2 m6.562 ftlong |
Cable extension | Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable |
Weight | Net weight: 45 g approx Gross weight: 60 g approx |
Accessory | MS-EXL2-3 (Mounting plate): 1 pc. |
Title: | Size: | Type: |
---|---|---|
Datasheet 1: EXL261P - EX-L261-P | EX-L261-P | 3 Mbytes | |
Download general catalog |
