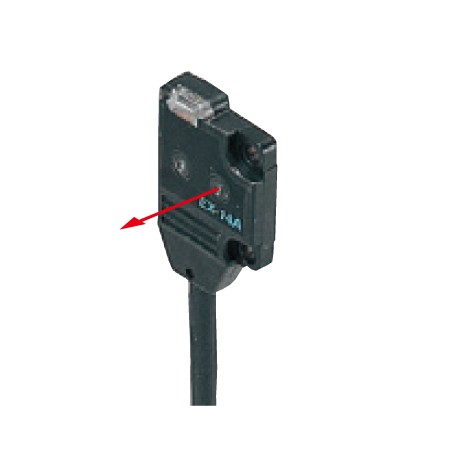

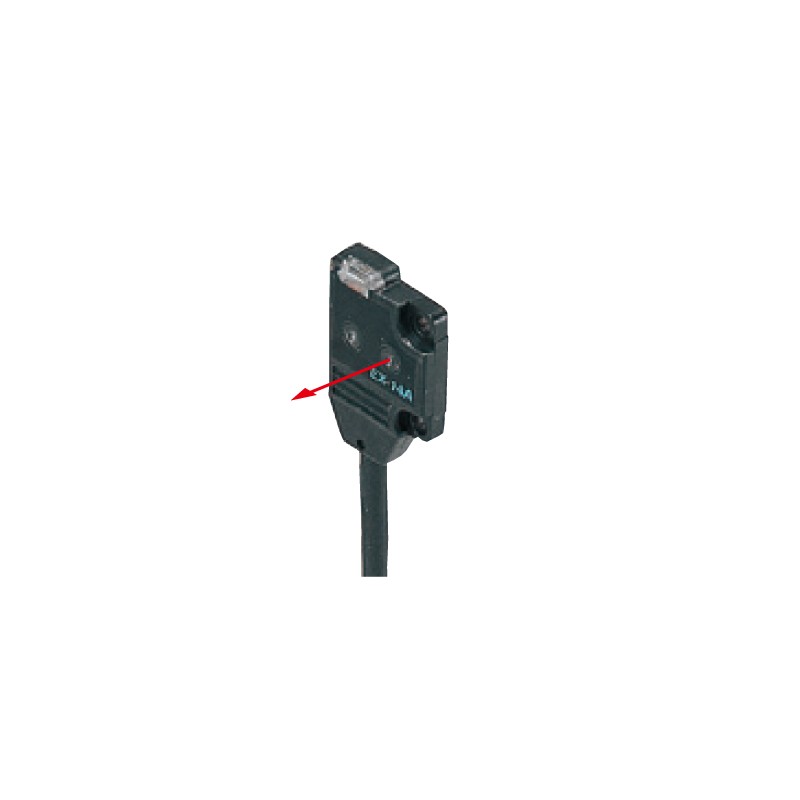

EX14APN EX-14A-PN PANASONIC UZB16015, diffus reflective type, 25mm, Light-ON, PNP, cable 2m
EX14APN
EX-14A-PN
PANASONIC
UZB16015, diffus reflective type, 25mm, Light-ON, PNP, cable 2m
Miniature Photoelectric Sensors - PANASONIC > EX10 Ultra-slim type photoelectric sensor - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Often bought together
▲More info
▲| Product Number | EX-14A-PN |
| Part Number | EX-14A-PN |
| Product | Ultra-slim Photoelectric Sensor |
| Details | Convergent reflective (Diffused beam type) [Front sensing] |
| Product name | Ultra-slim Photoelectric Sensor EX-10 |
| Item | Specifications |
|---|---|
| Product Number | EX-14A-PN |
| Part Number | EX-14A-PN |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Sensing range | 2 to 25 mm 0.079 to0.984 in(Conv. point: 10 mm 0.394 in) (Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 ×1.969 in) as the object. |
| Min. sensing object | ø0.1 mmø0.004 incopper wire (Completely beam interrupted object) (Setting distance: 10 mm0.394 in) |
| Hysteresis | 15 % or less of operation distance (Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object. |
| Repeatability(perpendicular to sensing axis) | 0.1 mm0.004 inor less |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 13 mA or less |
| Output | PNP open-collector transistor - Maximum source current: 50 mA - Applied voltage: 30 V DC or less (between output and +V) - Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
| Output:Utilization category | DC-12 or DC-13 |
| Output:Short-circuit protection | Incorporated |
| Response time | 0.5 ms or less |
| Operation indicator | Orange LED (lights up when the output is ON) |
| Incident beam indicator | - |
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
| Pollution degree | 3 (Industrial environment) |
| Protection | IP67 (IEC) |
| Ambient temperature | -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting element | Red LED (Peak emission wavelength: 680 nm0.027 mil, modulated) |
| Material | Enclosure: Polyethylene terephthalate Lens: Polyalylate |
| Cable | 0.1 mm23-core (emitter: 2-core) cabtyre cable, 2 m6.562 ftlong |
| Cable extension | Extension up to total 50 m164.042 ftis possible with 0.3 mm2, or more, cable. |
| Weight | Net weight: 20 g approx Gross weight: 40 g approx |
| Accessory | Mounting screws: 1 set |
