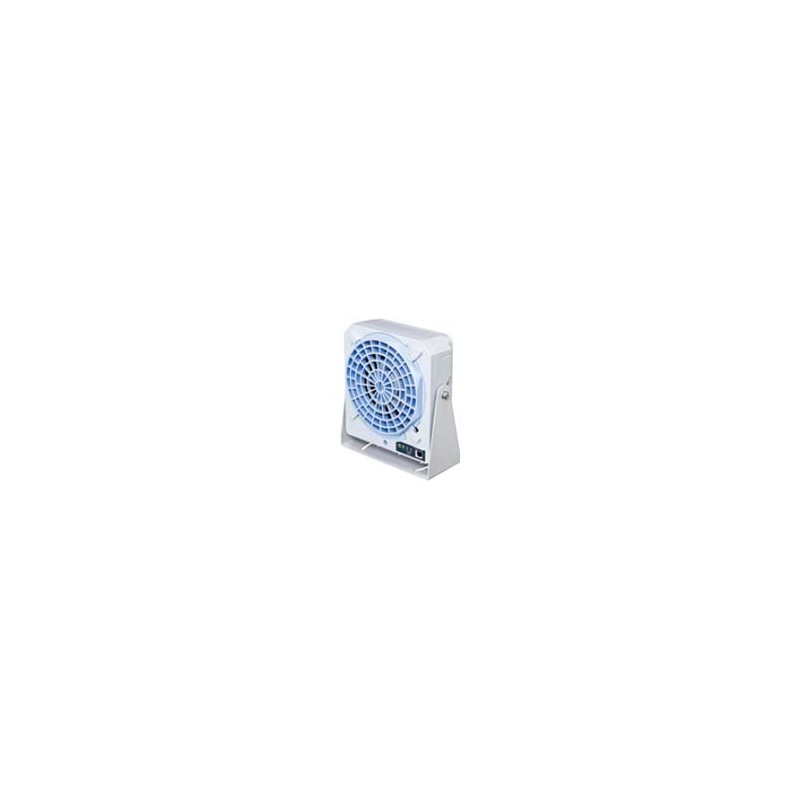

ER-F12S PANASONIC Fan type Ionizer, Low air-volume type
ER-F12S
PANASONIC
ER-F12S_Fan Type Ionizer_Fan Type Ionizer ER-F_Low-volume fan type
Ionizers - PANASONIC > Fan type ionizer - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | ER-F12S |
| Part Number | ER-F12S |
| Product | Fan Type Ionizer |
| Details | Low-volume fan type |
| Product name | Fan Type Ionizer ER-F |
| Item | Specifications |
|---|---|
| Product Number | ER-F12S |
| Part Number | ER-F12S |
| Charge removal time | 1.5 sec. approx. (plus or minus1,000 V to plus or minus100 V) (Note) Typical value at 200 mm 7.874 in from directly in front of air outlet, fan speed MAX, straight louver, with no filter installed. |
| Ion balance | plus or minus10 V or less (Note) Typical value at 300 mm 11.811 in from directly in front of air outlet, fan speed MAX, straight louver, with no filter installed. |
| Supply voltage | 24 V DC plus or minus10% |
| Current consumption | 400 mA or less |
| Discharge method | High-frequency AC method |
| Discharge output voltage | plus or minus 2 kV approx. |
| Max. fan speed | 4.0 m/s (Note) Typical value at 300 mm 11.811 in from directly in front of air outlet, fan speed MAX, straight louver, with no filter installed. |
| Max. fan volume | 2.50 m3/min |
| Main functions | Error output, Discharge halt input |
| Indicators | Discharge error (Red), Fan error (Red), Power (Green), Discharge (Green) |
| Ozone generation | 0.04 ppm or less (Note) Typical value at 200 mm 7.874 in from directly in front of air outlet, fan speed MAX, straight louver, with no filter installed. |
| Ambient temperature | 0 to +50degrees +32 to +122degrees Fahrenheit (No dew condensation) , Storage: –10 to +65degrees +14 to +149degrees Fahrenheit |
| Ambient humidity | 35 to 65% RH (No dew condensation) , Storage: 35 to 65% RH |
| Grounding method | C (capacitor) grounding |
| Material | Enclosure: ABS, Louver: ABS, Discharge needle unit: PBT, Discharge needle: Tungsten, Bracket: SPHC |
| Weight | Main unit: 790 g approx. |
| Accessories | Straight louver: 1 pc. (Note), Angle louver: 1 pc., Caution label: 1 set, Rubber cushion: 1 pc. (Note) The discharge needle unit is loaded on the straight louver before shipment. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: ERF12S - ER-F12S | ER-F12S | 2 Mbytes |
 |
| Download general catalog |
|
