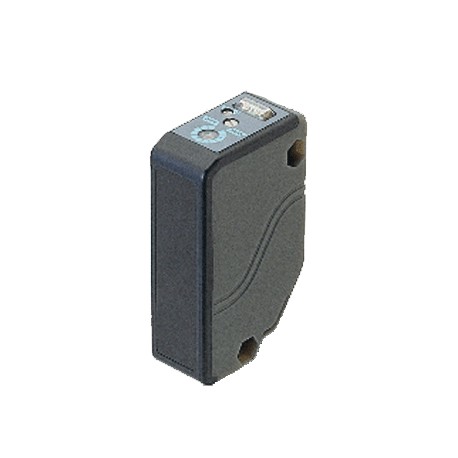

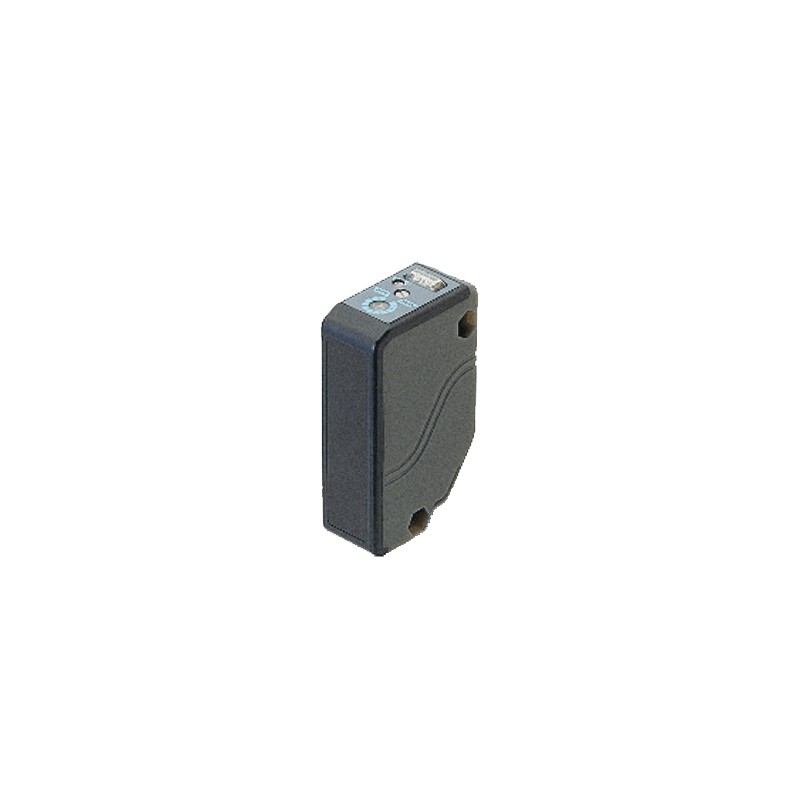

UZD355A, Trigonometric diffuse reflective type, 2m, PNP, M12-connector
Background supression - PANASONIC > EQ34 Background supression 2m distance adjustable photoelectric sensors - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Product Number | EQ-34-PN-J |
Part Number | EQ-34-PN-J |
Product | Adjustable Range Reflective Photoelectric Sensor |
Details | PNP output |
Product name | Adjustable Range Reflective Photoelectric Sensor EQ-30 |
Item | Specifications |
---|---|
Product Number | EQ-34-PN-J |
Part Number | EQ-34-PN-J |
CE marking directive compliance | EMC Directive, RoHS Directive |
Adjustable range | 0.2 to 2 m0.656 to 6.562 ft (Note) The adjustable range stands for the maximum sensing range which can be set with the adjuster. The sensor can detect an object 0.1 m0.328 ft, or more, away. |
Sensing range(with white non-glossy paper at setting distance 2 m 6.562 ft) | 0.1 to 2 m0.328 to 6.562 ft |
Hysteresis | 10 % or less of operation distance (With white non-glossy paper) |
Repeatability | Along sensing axis: 10 mm0.394 inor less, Perpendicular to sensing axis: 1 mm0.039 inor less (with white non-glossy paper) |
Supply voltage | 10 to 30 V DC Ripple P-P 10 % or less |
Current consumption | 55 mA or less |
Output | PNP open-collector transistor - Maximum source current: 100 mA - Applied voltage: 30 V DC or less (between output and + V) - Residual voltage: 1 V or less (at 100 mA source current), 0.4 V or less (at 16 mA source current) |
Output:Utilization category | DC-12 or DC-13 |
Output:Output operation | Switchable either Detection-ON or Detection-OFF |
Output:Short-circuit protection | Incorporated |
Response time | 2 ms or less |
Operation indicator | Red LED (lights up when the output is ON) |
Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
Distance adjuster | 2-turn mechanical adjuster with pointer |
Automatic Interference prevention function | Incorporated (Note) Detection may become unstable depending on the setting conditions or the sensing objects. After setting up this product, make sure to check operations using actual sensing objects. |
Pollution degree | 3 (Industrial environment) |
Protection | IP67 (IEC) |
Ambient temperature | -20 to +55 ℃-4 to +131 ℉(No dew condensation or icing allowed), Storage: -25 to +70 ℃-13 to +158 ℉ |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Ambient illuminance | Incandescent light: 3,000 ℓx or less at the light-receiving face |
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
Insulation resistance | 20 MOhm , or more, with 250 V megger between all supply terminals connected together and enclosure |
Vibration resistance | 10 to 55 Hz frequency, 1.5 mm0.059 indouble amplitude (10 G max.) in X, Y and Z directions for two hours each |
Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
Emitting element | Infrared LED (Peak emission wavelength: 880 nm0.035 mil, modulated) |
Material | Enclosure: Polyalylate and Polyethylene terephthalate Lens: Polyalylate |
Cable | 0.3 mm23-core cabtyre cable, 2 m6.562 ftlong |
Cable extension | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable. |
Weight | Net weight: 150 g approx Gross weight: 200 g approx |
Accessory | Adjusting screwdriver: 1 pc. |
