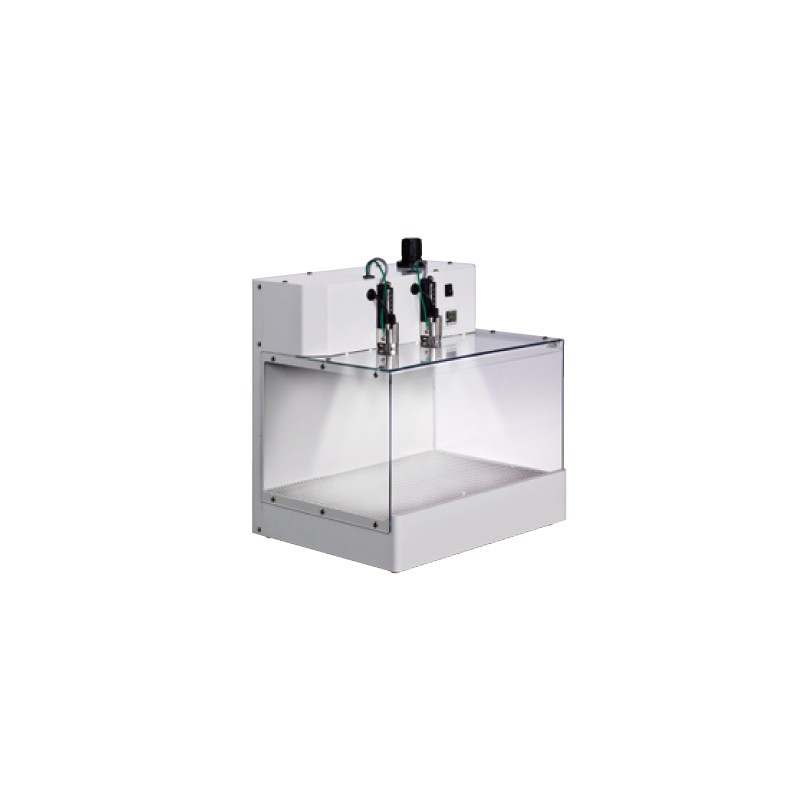

EC-B02-EX PANASONIC Bench Top Ionizer Cleaning Box (400mm width type)
EC-B02-EX
PANASONIC
Bench Top Ionizer Cleaning Box (400mm width type)
Ionizers - PANASONIC > Ionizer worktable - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | EC-B02-EX |
| Part Number | EC-B02-EX |
| Product | Bench Top Cleaning Box |
| Details | 400 mm 15.748 in width type |
| Product name | Bench Top Ionizer Cleaning Box EC-B |
| Item | Specifications |
|---|---|
| Product Number | EC-B02-EX |
| Part Number | EC-B02-EX |
| CE marking compliant directives | EMC Directive, RoHS Directive |
| Charge removal time | 0.5 sec. approx. or less (plus or minus1,000 V to plus or minus100 V) (Note：Typical value at 100 mm 3.937 in from the front of air outlet at an applied air pressure of 0.50 MPa.) |
| Ion balance | plus or minus10 V or less |
| Applicable fluid | Air (dried clean air) |
| Supplied air flow | Max. 500 liter/min. (ANR) or less |
| Air pressure range | 0.05 to 0.50 MPa |
| Supply voltage | Accessory AC adapter (Note：INPUT: 100-240 V AC plus or minus10 % 50/60 Hz (OUTPUT: 24 V DC)) (Note：Please prepare an AC cable separately as it is needed. The following cables are available as optionals: CN-ACCN-C2: AC cable (conforming to CCC), CN-ACKR-C2: AC cable (conforming to KTL)) |
| Power consumption | 90 VA or less |
| Timer mode | 2 sec. / 5 sec. / 10 sec. / synchronized with sensor or with external input selectable by switch |
| Pulse air mode | Pulse 1 (long) / Pulse 2 (short) / OFF (continuous) selectable by switch |
| Ambient temperature | 0 to +40 ℃+32 to +104 ℉ |
| Ambient humidity | 35 % to 65 % RH (No dew condensation) |
| Weight | Main body: 13 kg approx. |
| Accessories | AC adapter: 1pc., Filter: 1pc., Protective mesh: 1pc. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| EC-B02-EX EC-B02-EX EC-B02-EX ec-b02-ex_e_cata1.pdf | 552 Kbytes |
 |
| EC-B02-EX EC-B02-EX EC-B02-EX | 20 Kbytes |
|
| Download general catalog |
|
