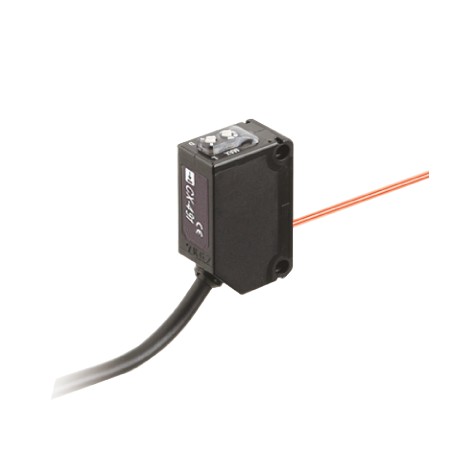

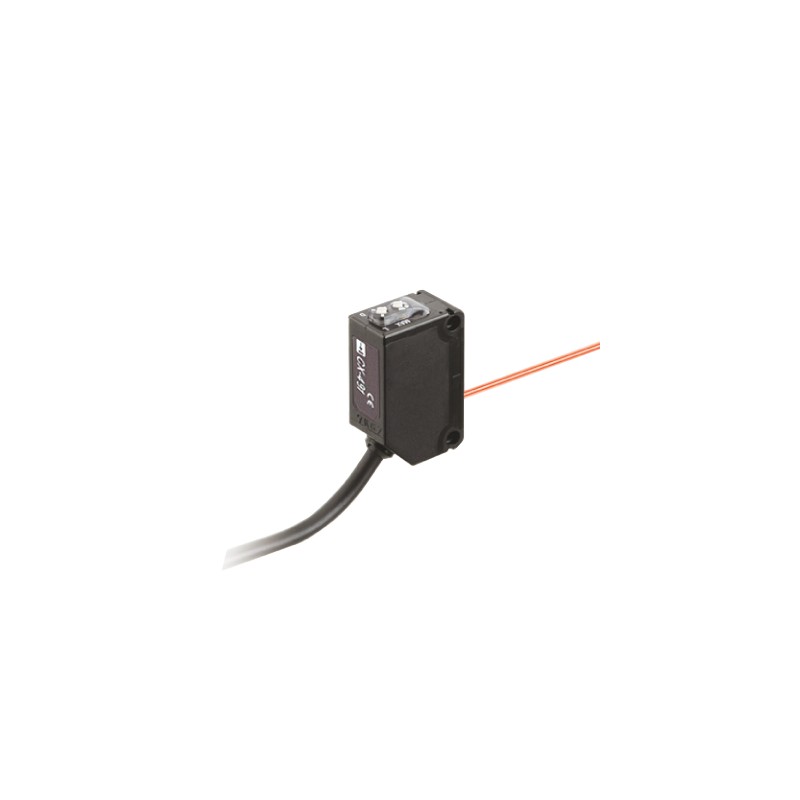

CX-491A-P-C05-Y PANASONIC Basic Retroreflective, light-ON, 3m, PNP, cable 0,5m, no reflector
CX-491A-P-C05-Y
PANASONIC
Basic Retroreflective, light-ON, 3m, PNP, cable 0,5m, no reflector
Miniature Photoelectric Sensors - PANASONIC > CX400 Compact Photoelectric Sensor. Basic types - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | CX-491A-P-C05-Y |
| Part Number | CX-491A-P-C05-Y |
| Product | Compact Photoelectric Sensor |
| Details | Retroreflective(With polarizing filters) |
| Product name | Compact Photoelectric Sensor CX-400 Ver.2 |
| Item | Specifications |
|---|---|
| Product Number | CX-491A-P-C05-Y |
| Part Number | CX-491A-P-C05-Y |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Sensing range | 3 m9.843 ft (Note) The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-230 reflector (optional). The sensing range represents the actual sensing range of the sensor. |
| Sensing object | Ø50 mmØ1.969 inor more opaque, translucent or specular object (Note) The sensing range and the sensing object of the retroreflective type sensor are specified for the RF-230 reflector (optional). The sensing range represents the actual sensing range of the sensor. (Note) Make sure to confirm detection with an actual sensor before use. |
| Hysteresis | - |
| Repeatability(perpendicular to sensing axis) | 0.5 mm0.020 inor less |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 13 mA or less |
| Output | PNP open-collector transistor - Maximum source current: 100 mA - Applied voltage: 30 V DC or less (between output and +V) - Residual voltage: 2 V or less (at 100 mA source current), 1 V or less (at 16 mA source current) |
| Output:Short-circuit protection | Incorporated |
| Response time | 1 ms or less |
| Operation indicator | Orange LED(lights up when the output is ON) (incorporated on the receiver for thru-beam type) |
| Stability indicator | Green LED(lights up under stable light received condition or stable dark condition) (incorporated on the receiver for thru-beam type) |
| Power indicator | Green LED(lights up when the power is ON) (incorporated on the emitter) |
| Sensitivity adjuster | - |
| Automatic interference prevention function | Incorporated(Two units of sensors can be mounted close together.) |
| Protection | IP67 (IEC) |
| Ambient temperature | - 25 to +55℃-13 to +131℃ ℉(No dew condensation or icing allowed ), Storage: -30 to +70℃-22 to +158℃ ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 1.5 mm0.059 indouble amplitude (10 G max.) in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting element (modulated) | Red LED |
| Emitting element (modulated):Peak emission wavelength | 680 nm0.027 mil |
| Material | Enclosure: PBT (polybutylene terephthalate) Lens: acrylic Indicator cover: acrylic |
| Cable | 0.2 mm23-core cabtyre cable, 0.5 m1.640 ftlong |
| Cable extension | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: CX491APC05Y - CX-491A-P-C05-Y | CX-491A-P-C05-Y | 3 Mbytes |
 |
| Download general catalog |
|
