CX442P
CX-442-P
PANASONIC
1

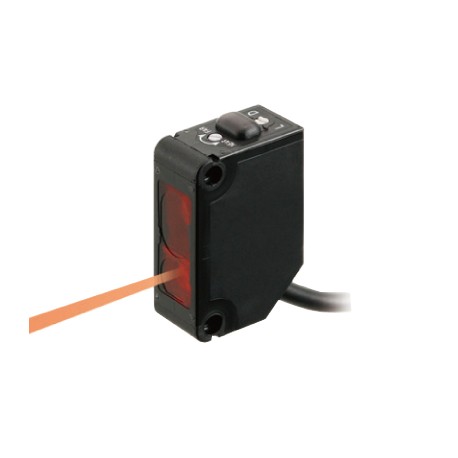

Trigonometric diffuse reflective type, 2-30mm, PNP, cable 2m
Background supression - PANASONIC > CX440 Adjustable range reflective type compact photoelectric sensors - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | CX-442-P |
Part Number | CX-442-P |
Product | Compact Photoelectric Sensor |
Details | Adjustable range reflective |
Product name | Compact Photoelectric Sensor CX-400 Ver.2 |
Item | Specifications |
---|---|
Product Number | CX-442-P |
Part Number | CX-442-P |
CE marking directive compliance | EMC Directive, RoHS Directive |
Adjustable range | 40 to 300 mm1.575 to11.811 in (Note) The adjustable range stands for the maximum sensing range which can be set with the distance adjuster. The sensor can detect an object 2 mm0.079 in[CX-444(-P): 15 mm0.591 in, CX-442(-P): 20 mm0.787 in], or more, away. |
Sensing range(with white non-glossy paper) | 20 to 300 mm0.787 to11.811 in |
Hysteresis | 5 % or less of operation distance(with white non-glossy paper) |
Repeatability | Along sensing axis: 1 mm0.039 inor less, Perpendicular to sensing axis: 0.2 mm0.008 inor less (with white non-glossy paper) |
Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
Current consumption | 20 mA or less |
Output | PNP open-collector transistor - Maximum source current: 100 mA - Applied voltage: 30 V DC or less (between output and +V) - Residual voltage: 2 V or less (at 100 mA source current), 1 V or less (at 16 mA source current) |
Output:Output operation | Switchable either Detection-ON or Detection-OFF |
Output:Short-circuit protection | Incorporated |
Response time | 1 ms or less |
Operation indicator | Orange LED (lights up when the output is ON) |
Stability indicator | Green LED(lights up under stable operating condition) |
Distance adjuster | 5-turn mechanical adjuster |
Sensing mode | BGS / FGS functions switchable with wiring of sensing mode selection input |
Automatic Interference prevention function | Incorporated (Note) Note that detection may be unstable depending on the mounting conditions or the sensing object. In the state that this product is mounted, be sure to check the operation with the actual sensing object. |
Protection | IP67 (IEC) |
Ambient temperature | - 25 to +55℃-13 to +131℃ ℉(No dew condensation or icing allowed ), Storage: -30 to +70℃-22 to +158℃ ℉ |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
Vibration resistance | 10 to 500 Hz frequency, 3 mm0.118 inamplitude in X, Y and Z directions for two hours each |
Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
Emitting element (modulated) | Red LED |
Emitting element (modulated):Peak emission wavelength | 650 nm0.026 mil |
Spot diameter | Ø15 mmØ0.591 inapprox.(at 300 mm11.811 indistance) |
Material | Enclosure: PBT (Polybutylene terephthalate) Front cover: Polycarbonate Indicator cover: Polycarbonate |
Cable | 0.2 mm24-core cabtyre cable, 2 m6.562 ftlong |
Cable extension | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable. |
Weight | Net weight: 55 g approx. Gross weight: 65 g approx. |
Title: | Size: | Type: |
---|---|---|
Datasheet 1: CX442P - CX442P | CX-442-P | 3 Mbytes | |
Download general catalog |
