ASFN80371
PANASONIC
1

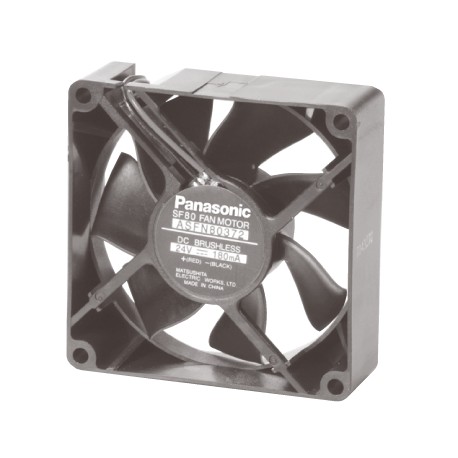

DC fan motor, 80x80x25mm, ball bearing type standard speed 12V DC
Fans - PANASONIC > ASFN DC Fans - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | ASFN80371 |
Part Number | ASFN80371 |
Product | DC Fan Motor 80 x 25t |
Details | Standard speed |
Product name | DC Fan Motor 80 x 25t(ASFN8) |
Item | Specifications |
---|---|
Product Number | ASFN80371 |
Part Number | ASFN80371 |
Rated voltage | 12 V |
Input power | 3.96 W max/3.00 W AVE |
Rated current | 330 mA max/250 mA AVE |
Rotation speed | 2,950 r/min |
Max. air flow | 1.09 m3/min |
Max. static pressure | 36.6 Pa |
Noise | 32.5 dB(A) |
Weight | 80 g |
Ambient temperature | -10degrees to +60degrees +14degrees Fahrenheit to +140degrees Fahrenheit |
Humidity resistance test condition | 40degrees 104degrees Fahrenheit, 95%RH, 500 hrs |
Temperature rise | Coil surface: Max. 50degrees 122degrees Fahrenheit (Nominal voltage, by resistive method) External surface: Max. 20degrees 68degrees Fahrenheit (Nominal voltage, by thermocouple method) |
Breakdown voltage | 500 V AC for 1 min. (between lead wire and external housing) |
Insulation resistance | Min. 10 MOhm (at 500 V DC) |
Vibration resistance:Frequency | 10 to 55Hz |
Vibration resistance:Double amplitude width | 0.75 mm |
Vibration resistance:Applied direction | X, Y and Z directions |
Vibration resistance:Applied time | 10 min. in each direction |
Lead wire tensile strength | 9.8 N, single wires did not break at 15 seconds |
Fan blockage | No coil burnout even after blockage of 72 hrs. at nominal voltage. |
Reverse polarity power connection | No damage even after reverse polarity connection for short time at nominal voltage. |
Expected life | 90% survival rate at 60,000 hrs. (When rotation frequency drops 30% of initial value when run at nominal voltage under 25degrees 77degrees Fahrenheit , room humidity.) |
Materials used | Frame: plastic Propeller: plastic Bearings: ball bearings Lead wires: UL1007 and AWG24 |
Title: | Size: | Type: |
---|---|---|
Datasheet 1: ASFN80371 - ASFN80371 | ASFN80371 | 812 Kbytes | |
