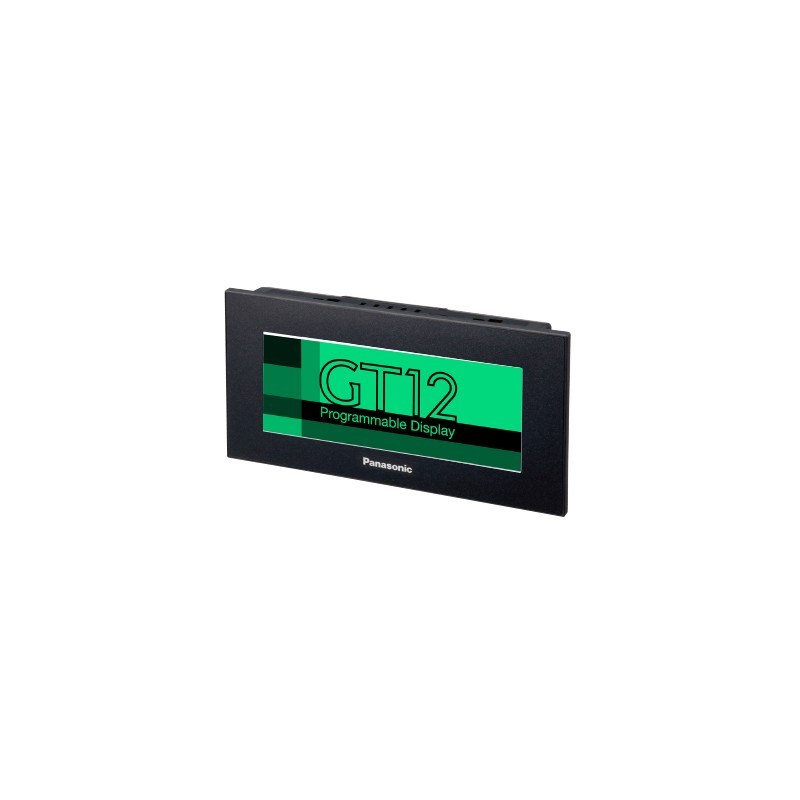

AIG12GQ14D PANASONIC Touch panel GT12 4.6", 8 gray scale, 320x120 pix., RS422/485 + mini-USB (prog.), 24V DC..
AIG12GQ14D
PANASONIC
Touch panel GT12 4.6", 8 gray scale, 320x120 pix., RS422/485 + mini-USB (prog.), 24V DC, SD/SDHC Card Slot, black frame, backlight color: red, orange, green
GT-series touch terminals - PANASONIC > GT12, 3 colors, 4,6" miniature touch terminal - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | AIG12GQ14D |
| Part Number | AIG12GQ14D |
| Product | Compact Programmable Display |
| Details | GT12G |
| Product name | GT12 |
| Item | Specifications |
|---|---|
| Product Number | AIG12GQ14D |
| Part Number | AIG12GQ14D |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Power supply | 24 V DC |
| Operating voltage range | 21.6 to 26.4 V DC |
| Power consumption | 1.7W or less |
| Power supply unit isolation method | Transformer isolation |
| Ambient temperature | 0 to +50 ℃+32 to +122 ℉ |
| Ambient humidity | 20 to 85% RH (at +25 ℃+77 ℉), (No dew condensation allowed) |
| Storage temperature | -20 to +60 ℃-4 to +140 ℉ |
| Storage humidity | 10 to 85% RH (at +25 ℃+77 ℉), (No dew condensation allowed) |
| Vibration resistance | 5 to 9 Hz amplitude: 3.5 mm0.138 in, 9 to 150 Hz acceleration 9.8 m/s2, 10 sweeps each in X, Y and Z directions (1 octave/min.) |
| Shock resistance | 147 m/s2, 3 times in each of the X, Y and Z directions |
| Superposed noise suppression | 1,000 V [P-P] or more, pulse width of 50 ns, 1 μs between power supply terminals (by a noise simulator) |
| Environmental resistance | IP67 (in the initial stages) Note : This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing. |
| Net weight | 240 g approx. |
| Display:Display device | TFT monochrome LCD Note : The display has been changed STN LCD to TFT LCD from production in November 2016. |
| Display:Resolution | 320 (W) x 120 (H) dots |
| Display:Display color | 2 colors (black / white, 8-gray scale) |
| Display:Displayable area | 108.8 (W) x 40.8 (H) mm4.283 (W) x 1.606 (H) in |
| Display:Backlight | GT12G: 3-color LED (green / orange / red) |
| Functions:Font types | Fixed (GTWIN) : 1/4 width (8 × 8), half width (16 × 8), full width (16 × 16) Characters can be displayed in the 1, 2, 4, or 8 times width or height. True Type (GTWIN): 10 to 120 dots |
| Functions:Languages | Japanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, Turkish, Russian, Vietnamese |
| Functions:Graphics | Straight lines, Continuous straight lines, Squares, Circles, Ovals, Arcs, Elliptic arcs, Fan shapes, Elliptic fan shapes, Beveled squares, Bitmaps |
| Functions:Number of screens | 2-gray scale: 250 screens approx. 8-gray scale: 200 screens approx. Note : The number of screens that can be registered varies according to the registered contents. |
| Functions:Screen setting No. | No. 0 to 3FF |
| Functions:Part functions | Messages, Lamps, Switches, Function switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, Alarm record, Custom parts (messages, lamps, switches) |
| Functions:Other functions | Recipe, Flow display, Write device, Multiple PLC connection, FP monitor, Language switching, GT link, Operation security, Data logging, SD recipe |
| Functions:Clock function | Provided with a built-in clock. (Can also refer to and display a PLC clock.) * Buy the backup battery (AFPX-BATT). |
| Functions:Contrast adjustment | Unnecessary |
| Functions:Buzzer | Installed |
| Functions:Automatic communication settings | The communication speed (baud rate) is automatically changed if there is no response from the target equipment. |
| Functions:Through function | GT connected between a PC and PLC allows the PLC to be debugged without a direct connection with the PC. |
| Functions:Screen creation | Dedicated software should be used. Applicable OS: Windows® 2000 / XP / Vista / 7 / 8 / 8.1 / 10 Note : The 64-bit version is not supported except for Windows® 7 / 8 / 8.1 / 10. Windows is registered trademark or trademark of Microsoft Corporation in the United States and other countries. |
| Touch key resolution | Free layout (8 dots min.) |
| Touch key operation force | 0.8 N or less |
| Touch key life | 1 million operations or more. (at +25 ℃+77 ℉) |
| COM. Port:Communication standard | Conforms to RS-422 / RS-485 |
| COM. Port:External communication conditions | Baud rate: 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps, 115,200 bps Data bits: 7 or 8 bits, Parity: None, Odd, Even, Stop bits: 1 bit |
| COM. Port:Protocol | Our FP series supported, General-purpose serial interface supported, Other companies' PLC supported (Refer to the compatible PLC list for manufacturers and models.) |
| COM. Port:Connector | Connector terminal block (8 pins) |
| Screen data transfer interface:Communication standard | USB 1.1 |
| Screen data transfer interface:Communication conditions with PC | — |
| Screen data transfer interface:Protocol | Our dedicated protocol |
| Screen data transfer interface:Connector | USB Mini-B |
| User’s memory:Memory | F-ROM |
| User's memory:Capacity | 2 Mbyte |
| Memory backup:Memory | SRAM |
| Memory backup:Backup battery | Lithium battery (replaceable) AFPX-BATT (Does not include with product.) |
