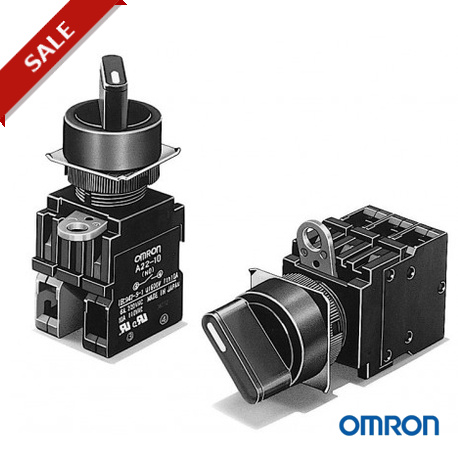

A22S-2M 141539 OMRON Industrial Career Final / Push buttons, selector lever head 2 pos black Manual View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

A22S-2M 141539 OMRON Industrial Career Final / Push buttons, selector lever head 2 pos black Manual

A22S-2M

141539

OMRON

Available

Ship on today

Industrial Career Final / Push buttons, selector lever head 2 pos black Manual

More details


Safety

Safety. Control- and Signalling devices - Standard pushbutton switches - OMRON

Safety. Control- and Signalling devices - Standard pushbutton switches - A22 - OMRON

* Brand new produt in its original packing covered by the warranties and certifications provided by OMRON

QuantityPrice
1+$6.76
36+$5.34
72+$5.21
108+$5.14
144+$5.09
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info

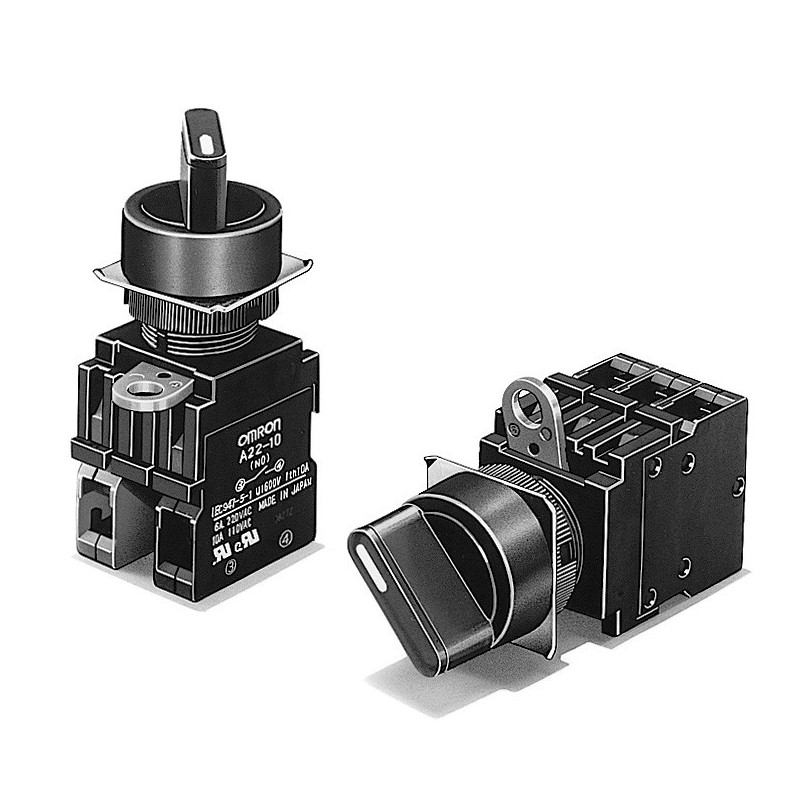

Knob-type Selector Switch
A22S/W
Install in 22-dia. or 25-dia. Panel Cutout
• Easy mounting and removal of Switch Unit.
• Increase wiring efficiency with three-row mounting of Switch
Blocks.
• Finger protection mechanism on Switch Unit provided as a stan- dard feature.
• Use 25-dia. ring to install in 25-dia. panel cutouts.
• Mounted using either open-type (fork-type) or closed-type
(round-type) crimp terminals.
• IP65 oil resistance (non-lighted models) IP65 (lighted models)
• EN60947-5-1
• UL and cUL approved (File No. E41515).
Model Number Structure
■ Model Number Legend
Completely Assembled
Shipped as a set which includes the Selector, Lamp (lighted models only), and Switch.
1 2 3 4 5
A22@-@@-@-@
1 Lighted/Non-lighted
Code Description
S Non-lighted
W Lighted
2 Number of Notches/Reset Method
Code Description
2M 2 notches/Manual
2A 2 notches/Automatic
3M 3 notches/Manual
3A 3 notches/Automatic
3 Illumination Color
Code Description
None Black (for non-lighted models only) R Red
G Green Y Yellow A Blue
4 Light Source
5 Contacts
Code Description
10 SPST-NO (See note 1.)
01 SPST-NC (See note 1.)
11 SPST-NO + SPST-NC
20 DPST-NO
02 DPST-NC
Note: 1. For models with 2 notches
2. The contacts are rated for stand- ard loads. For microloads, refer to Accessories section for the A22.
Without Voltage Reduction Unit
Code Operating Voltage
None Non-lighted
With Voltage Reduction Unit
None Non-lighted
T1 LED 110 VAC (See note 2.)
6D LED
6 VDC T2
220 VAC (See note 3.)
6A 6 VAC
12A 12 VAC/VDC
24A 24 VAC/VDC
Note: 1. The LED lamp (24 VAC/VDC) can be lit by directly applying 110 VAC/VDC (220 VAC/VDC) to the lamp terminal. LED incorporates the 24-VAC/VDC models.
5 Incandescent
12 lamp
5 VAC/VDC
12 VAC/VDC
2. Operational voltage: 95 to 115 VAC
3. Operational voltage: 190 to 230 VAC
24 24 VAC/VDC
Knob-type Selector Switch A22S/W G-115

Datasheet - PDF

Title:Language:Size:Type:
pdf1-mostradoSelector switch, knob-type, non-illuminated, 2 notches, maintained, IP65 - OMRON - A22S-2M - 1415English668 Kbytespdf1-mostradoSelector switch, knob-type, non-illuminated, 2 notches, maintained, IP65 - OMRON - A22S-2M - 1415
