K8DS-PM2

387484

OMRON

Available

Ship on today

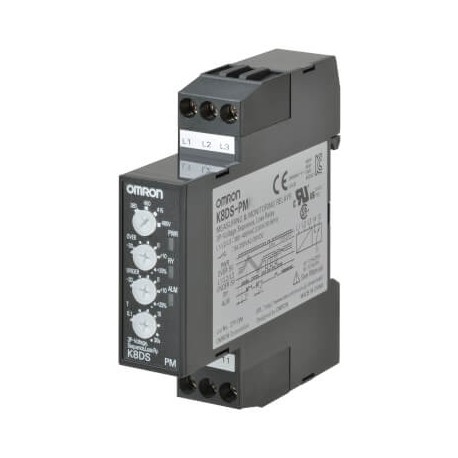

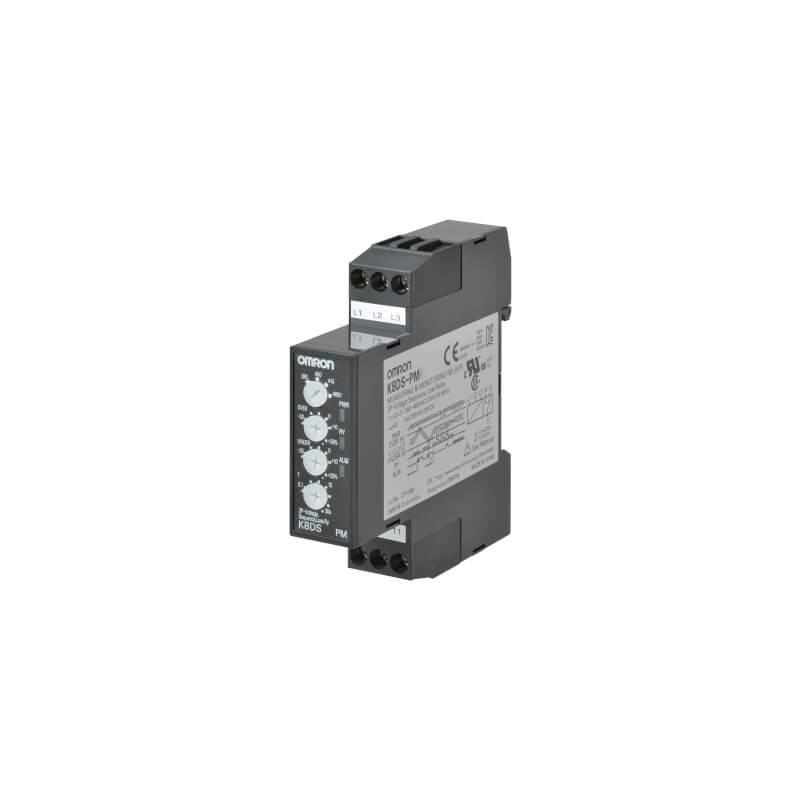

Monitoring Relays, Three Phase Voltage Max and Min + Sequence + Per phase 380-480AC 17.5mm

More details


* Brand new produt in its original packing covered by the warranties and certifications provided by OMRON

*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



K8DS-PM 3-phase control
3-Phase voltage, phase sequence, phase-loss and over-/
undervoltage relay
The K8DS-PM is the simplified 3-phase monitoring relay, 3-wire circuits with one unit. It can monitor undervoltages, overvoltages, phase sequence and phase-loss.
• Greater resistance to inverter noise
• One SPDT output relay, 5 A at 250 VAC (resistive load)
• World-wide power specifications supported by one unit (Set with a rotary switch)
• Relay status can be monitored using LED indicator
Ordering information
Rated input Order code
3-phase 3-wire mode 200, 220, 230, 240 VAC K8DS-PM1
3-phase 3-wire mode 380, 400, 415, 480 VAC K8DS-PM2
Specifications
Ambient operating temperature –20 to 60°C (with no condensation or icing) Storage temperature –25 to 65°C (with no condensation or icing) Input frequency 50/60 Hz (AC power supply)
Output relays
(1 × SPDT, normally closed operation)
Resistive load 5 A at 250 VAC or at 30 VDC Maximum contact voltage 250 VAC or 30 VDC Maximum contact current 5 A
Maximum switching capacity 1,250 VA, 150 W
Mechanical life 10,000,000 operations
Electrical life 50,000 operations at 5 A, 250 VAC
Degree of protection Terminal section: IP20
Case material PC UL94 V-0
Weight Approx. 65 g
Rated input voltage K8DS-PM1 3-phase, 3-wire mode: 200, 220, 230, 240 VAC
K8DS-PM2 3-phase, 3-wire mode: 380, 400, 415, 480 VAC
Operation (overvoltage or undervoltage)
Operating value setting range Overvoltage = –30% to 25% of maximum rated input voltage
Undervoltage = –30% to 25% of maximum rated input voltage
Operating value 100% operation at set value
Reset (HYS.) Hysteresis 5% of operating value (fixed)
Resetting method Automatic reset
Operating time (T) Overvoltage/undervoltage 0.1 to 30 s
Phase-sequence, phase-loss 0.1 s max.
Power ON lock (LOCK) 1s ±0.5s
Overload capacity Continuous input: 500 V
Repeat accuracy Operating value ±0.5% full scale (at 25°C and an ambient humidity of 65% at the rated power supply voltage, 50/60 Hz sine wave input)
Operating time ±50 ms (at 25°C and 65% humidity, rated power supply voltage) Indicators Power (PWR): Green, Relay output (RY): Yellow LED, OVER/UNDER: Red Applicable standards Conforming standards EN 60947-5-1
Installation environment (pollution level 2, installation category III)
EMC EN 60947-5-1
Safety standards UL 508 (Recognition), Korean Radio Waves Act (Act 10564), CSA and CCC
Size in mm (H × W × D) 80 × 17.5 × 74
